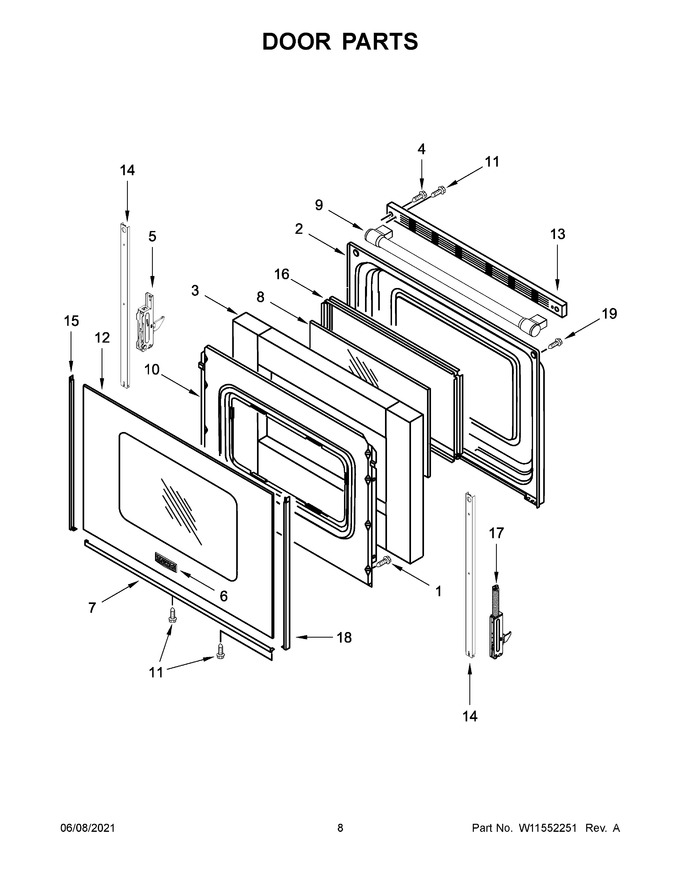

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10031790		Screw   (Replaces: W10031790)			Immediately	$ 8.74
2	WP9761344		Liner, Door   (Replaces: 9761344)			Immediately	$ 372.89
3	WPW10278991		Insulation, Door Strip   (Replaces: W10278991)			Immediately	$ 101.37
4	WPW10200660		Screw   (Replaces: W10200660)			Immediately	$ 8.24
5	WPW10299227		Hinge, Door (passive)   (Replaces: W10299227)			Immediately	$ 70.74
6	WPW10612925		Badge   (Replaces: W10612925)			Immediately	$ 42.36
7	W11594186		Trim, Lower Door (white)   (Replaces: 8523175)			Immediately	$ 61.37
8	WP8053948		Glass, Inner   (Replaces: 9758162)				$ 178.28
9	W10920643		Handle, Oven Door (white)   (Replaces: W10889625)				$ 226.46
10	W11539580		Retainer, Insulation   (Replaces: 9761357)				$ 233.31
11	W10831019		Screw   (Replaces: W10480830)			Immediately	$ 8.27
12	WPW10409945		Glass Assembly, Outer Door (white)   (Replaces: W10409945)			Immediately	$ 248.79
13	W11093912		Trim, Oven Door Vent (white)   (Replaces: W10875232)				$ 141.62
14	W11502236		Strap, Door   (Replaces: W11379944)			Immediately	$ 27.68
15	WP8523172		Trim, Side (white (left))   (Replaces: 8523172)			Immediately	$ 69.93
16	WPW10316950		Frame, Glass   (Replaces: W10316950)			Immediately	$ 90.09
17	WPW10299226		Hinge, Active   (Replaces: W10299226)			Immediately	$ 72.76
18	WP8523166		Trim, Side (white (right))   (Replaces: 8523166)			Immediately	$ 84.23
19	WP355214		Screw   (Replaces: W10327235)			Immediately	$ 8.80

    View Diagram in Separate Window       Print Part List
