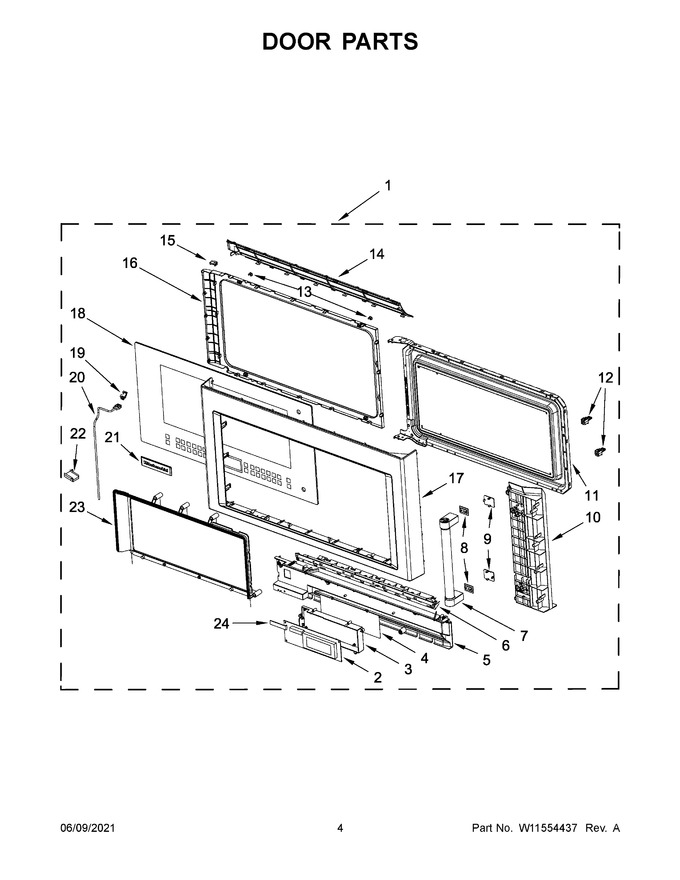

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11205126		Door, Complete (white)		Appelez-nous	-
2	W11202852		Pcba, User Interface		Appelez-nous	-
3	W10770970		Holder, Ui		Appelez-nous	-
4	W10540298		Plate, Ui Insulation		Appelez-nous	-
5	W10617743		Cover, Ui		Appelez-nous	-
6	W10476546		Bracket, Door		Appelez-nous	-
7	W10604264		Assembly, Handle				$ 293.41
8	W11590575		Cushion, Handle   (Replaces: W10540736)				$ 23.59
9	W10571119		Cover, Screw (white)		Appelez-nous	-
10	W10734944		Bracket, Outer Door (white)		Appelez-nous	-
11	W11045518		Body, Door (with Glass)   (Replaces: W10891969)				$ 247.05
12	W10740455		Hooks, Door			Immediately	$ 56.20
13	W10542546		Cover, Screw				$ 88.82
14	W10570992		Frame, Back Decorating (white)		Appelez-nous	-
15	W10643448		Stopper, Door				$ 23.06
16	W10897612		Frame, Inner				$ 149.03
17	W10688547		Assembly, Door Frame (white)				$ 296.55
18	W10861345		Glass, Door				$ 352.56
19	W10770972		Holder, Door Cable		Appelez-nous	-
20	W11320318		Cable, Door User Interface				$ 153.17
21	W10909682		Nameplate   (Replaces: W10518673)			Immediately	$ 76.20
22	W10770971		Bracket, Door Cable		Appelez-nous	-
23	W10478647		Plate, Steam Protection				$ 96.76
24	W10509362		Cable, Touch Sensor		Appelez-nous	-
10A	W11699920		Bracket, Outer Door (black)   (Replaces: W10734943)				$ 86.18
14A	W10476550		Frame, Back Decorating (black)		Appelez-nous	-
17A	W10688550		Assembly, Door Frame (stainless)				$ 443.52
1A	W11205123		Door, Complete (stainless)				$ 641.43
9A	W10478657		Cover, Screw (black)			Immediately	$ 22.46
