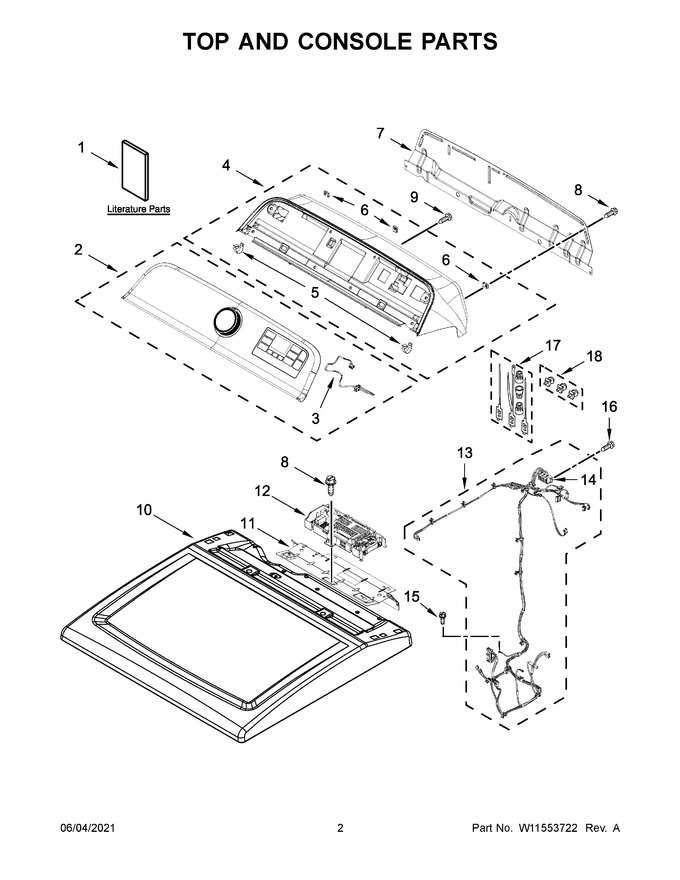

02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Dryer Heating Parts-electric


06 - Door Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11268643		Installation Instructions		Appelez-nous	-
2	W11419056		Assembly, Console Fascia (complete)   (Replaces: W11164032)				$ 620.31
3	W11164312		Harness, User Interface (hmi)				$ 167.98
4	W11401363		Console (white)   (Replaces: W11178519)				$ 364.05
5	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
6	W11213336		Nut, "u   (Replaces: W10298336)				$ 8.13
7	W11433112		Panel, Rear Console   (Replaces: W11259799)				$ 66.08
8	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 8.28
9	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 8.58
10	W11641121		Top (white)   (Replaces: W10260246)			Immediately	$ 215.10
11	W11431865		Bracket, Electronic Control   (Replaces: W10896068)				$ 57.36
12	W11525997		Appliance Control Unit (acu)   (Replaces: W11496630)			Immediately	$ 357.23
13	W11556949		Harness, Main Wiring   (Replaces: W11164045)			Immediately	$ 251.33
14	WP3397659		Block, Terminal   (Replaces: 3397659)				$ 24.17
15	W11693756		Screw   (Replaces: 359625)			Immediately	$ 14.76
16	WP308685		Screw   (Replaces: 3393008)			Immediately	$ 7.87
17	279318		Terminal, Brass And Tinned (includes Terminal Block Screw Kit)			Immediately	$ 106.04
18	279393		Screw Kit, Terminal Block			Immediately	$ 55.66
10A	W11641122		Chrome Shadow   (Replaces: W10458665)				$ 268.82
1A	W11175247		Quick Start Guide		Appelez-nous	-
4A	W11401366		Console (chrome Shadow)   (Replaces: W11178520)			Immediately	$ 378.62
