SELECT A DIAGRAM
01 - Cover Sheet

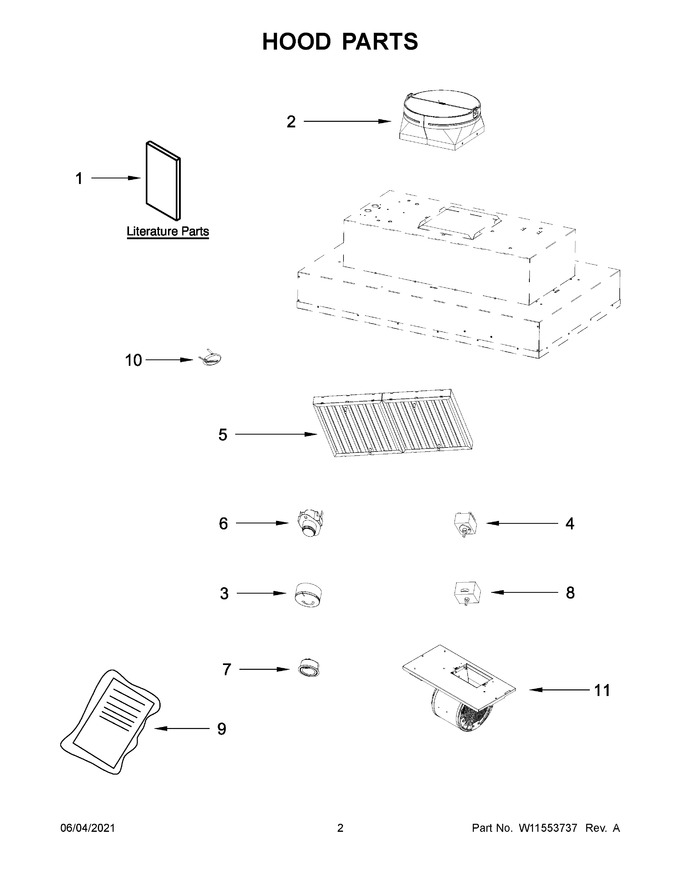

02 - Hood Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11280190 | Use And Care Guide |
|
- | |||||
| 2 | W11551389 | Damper |
|
Immediately | $ 138.74 | ||||
| 3 | WPW10294009 | Knob (Replaces: W10294009) |
|
$ 72.22 | |||||
| 4 | W10293967 | Switch, Fan |
|
$ 136.67 | |||||
| 5 | W10351892 | Filter, Grease (36" Model Only) |
|
$ 269.64 | |||||
| 6 | W10651064 | Switch, Thermo |
|
$ 222.55 | |||||
| 7 | WPW10638164 | Assembly, Light (Replaces: W10638164) |
|
Immediately | $ 164.52 | ||||
| 8 | W10293968 | Switch, Light |
|
$ 128.15 | |||||
| 9 | W11321345 | Hardware, Installation |
|
Immediately | $ 124.40 | ||||
| 10 | W10427011 | Filter, Noise |
|
- | |||||
| 11 | NP | Xhp1000xw White 10" Pedestal |
|
- | |||||
| 1A | W10649288 | Instructions, Extension Panel Kit |
|
- |
