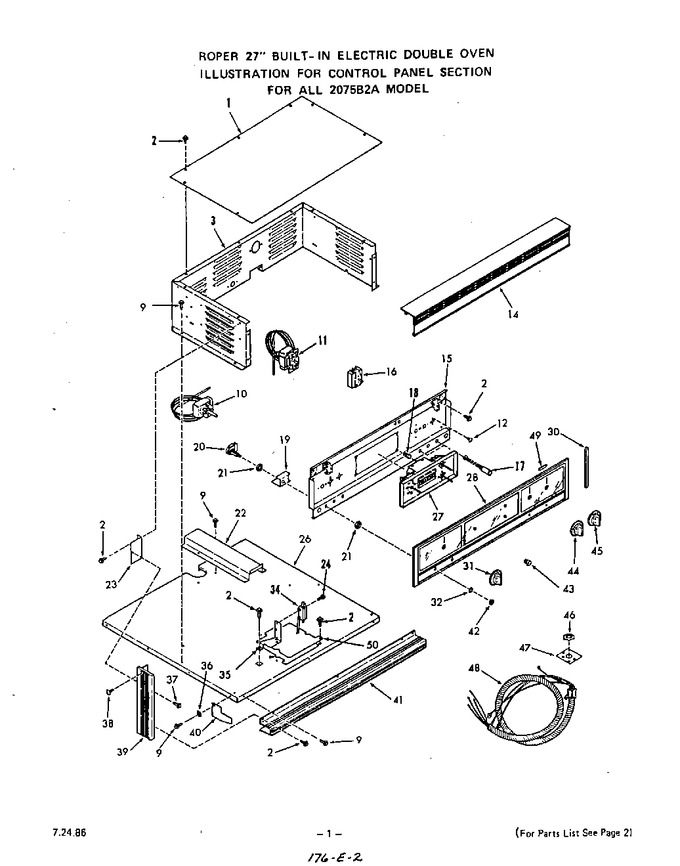

02 - Control Panel


03 - Oven Door Lock


04 - Body , Lit/optional


05 - Lower Oven Door


06 - Upper Oven Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	323667		Top-control Housing			Immediately	$ 3.25
2	102429		Screw 10 - 32 X 3/8``		Appelez-nous	-
3	323659		Control Housing		Appelez-nous	-
9	327320		Screw 10-16x7/16``		Appelez-nous	-
10	320938		Lower Oven Thermostat		Appelez-nous	-
11	331880		Upper Oven Thermostat		Appelez-nous	-
12	78565		Screw 8-32x3/16``		Appelez-nous	-
14	329398		Lamp Shade		Appelez-nous	-
15	333133		Mounting Panel-controls		Appelez-nous	-
16	331881		Selector Switch		Appelez-nous	-
17	334853		Upper Oven		Appelez-nous	-
17	334854		Lower Oven		Appelez-nous	-
18	293577		Clip		Appelez-nous	-
19	291351		Shield-switch		Appelez-nous	-
20	298794		Push Switch-oven Light		Appelez-nous	-
21	236129		Lock Nut		Appelez-nous	-
22	323663		Wire Cover		Appelez-nous	-
23	311759		Control Panel Support (lt. Or Rt.)		Appelez-nous	-
24	327256		Screw 6-32x7/8``		Appelez-nous	-
26	333121		Cabinet Top		Appelez-nous	-
27	330938		Clock W/1 Hr. Timer		Appelez-nous	-
28	329429		Control Panel Glass		Appelez-nous	-
30	239565		End Trim-control Panel Glass (rt Or Lt)		Appelez-nous	-
31	329447		Knob-lower Oven Thermostat		Appelez-nous	-
32	104838		Washer		Appelez-nous	-
34	334973		Micro Switch-lock		Appelez-nous	-
35	335115		Bracket-micro Switch		Appelez-nous	-
36	106462		Washer		Appelez-nous	-
37	293121		Screw 6-32x1/4``		Appelez-nous	-
38	299766		Screw 6-32 X 1/2``		Appelez-nous	-
39	314271		Left		Appelez-nous	-
39	314272		Right		Appelez-nous	-
40	312395		Heat Shield (lt. Or Rt.)		Appelez-nous	-
41	314284		Control Panel Trim		Appelez-nous	-
42	87403		Knurled Nut		Appelez-nous	-
43	109225		Knob-clock (start & Stop Time) (3)		Appelez-nous	-
44	334678		Knob-upper Oven Thermostat		Appelez-nous	-
45	329446		Knob-selector Switch		Appelez-nous	-
46	110340		Nut (for Key 48)		Appelez-nous	-
47	294983		Plate (for Key 48)		Appelez-nous	-
48	333036		Harness Conduit Asm.		Appelez-nous	-
49	112370		Cushion (2 Req)		Appelez-nous	-
50	333124		Cover Plate Lock		Appelez-nous	-
