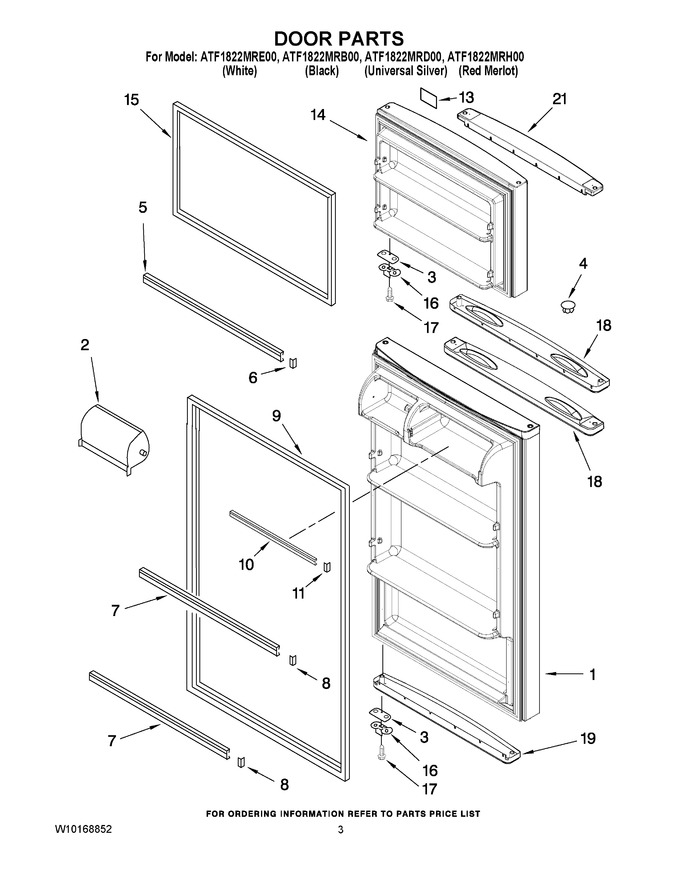

01 - Cabinet Parts
02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Shelf Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2265677B | Refrigerator Door (includes Illus. 9) (black) |
|
- | |||||
| 1 | 2265677D | Refrigerator Door (includes Illus. 9) (universal Silver) |
|
- | |||||
| 1 | 2265677R | Refrigerator Door (includes Illus. 9) (red Merlot) |
|
- | |||||
| 1 | W10153823 | Refrigerator Door (includes Illus. 9) (white) |
|
- | |||||
| 2 | WP2207942 | Door, Compartment (Replaces: 2207942) |
|
Immediately | $ 58.76 | ||||
| 3 | 2258681B | Shim, Door Stop |
|
$ 45.33 | |||||
| 4 | WP2254517 | Hole Plug (universal Silver) (Replaces: 2212648D) |
|
Immediately | $ 24.34 | ||||
| 4 | WP2212648 | Hole Plug (white) (Replaces: 2212648) |
|
Immediately | $ 8.19 | ||||
| 4 | WP2212651 | Hole Plug (black) (Replaces: 2212651) |
|
$ 24.21 | |||||
| 5 | WP2266727 | Trim, Door Shelf (narrow) (Replaces: 2266727) |
|
Immediately | $ 92.50 | ||||
| 6 | WP2156003 | End Cap, Trim (Replaces: 2156003) |
|
Immediately | $ 13.25 | ||||
| 7 | WP2266738 | Trim, Door Shelf (wide) (Replaces: 2266738) |
|
$ 111.69 | |||||
| 8 | WP2195916K | Endcap, Trim (Replaces: 2195916) |
|
Immediately | $ 13.18 | ||||
| 9 | WP2319264B | Door Gasket, Magnetic (black) (Replaces: 2264723) |
|
$ 323.85 | |||||
| 9 | WP2319264W | Door Gasket, Magnetic (white) (Replaces: 2264727) |
|
Immediately | $ 329.08 | ||||
| 10 | W11129820 | Trim, Door (Replaces: 2266729) |
|
Immediately | $ 127.34 | ||||
| 11 | WP2156007 | Plug-trim (Replaces: 2156007) |
|
Immediately | $ 8.03 | ||||
| 13 | 2200749 | Nameplate |
|
- | |||||
| 14 | W10162670 | Freezer Door (includes Illus. 15) (white) |
|
- | |||||
| 14 | 2265678B | Freezer Door (includes Illus. 15) (black) |
|
- | |||||
| 14 | 2265678R | Freezer Door (includes Illus. 15) (red Merlot) |
|
- | |||||
| 14 | 2265678D | Freezer Door (includes Illus. 15) (universal Silver) |
|
- | |||||
| 15 | WP2319263W | Door Gasket, Magnetic (white) (Replaces: 2264726) |
|
Immediately | $ 151.03 | ||||
| 15 | WP2319263B | Door Gasket, Magnetic (black) (Replaces: 2264722) |
|
Immediately | $ 268.28 | ||||
| 16 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 17 | W10276642 | Screw (Replaces: 8533904) |
|
$ 6.41 | |||||
| 18 | 2265645W | Endcap, Handle (white) |
|
$ 219.98 | |||||
| 18 | 2265645D | Endcap, Handle (universal Silver) |
|
- | |||||
| 18 | 2222045 | Endcap, Handle (black) |
|
$ 41.70 | |||||
| 19 | 2222048 | Endcap, Bottom (black) |
|
- | |||||
| 19 | 2265647W | Endcap, Bottom (white) |
|
$ 63.82 | |||||
| 19 | 2265647D | Endcap, Bottom (universal Silver) |
|
- | |||||
| 21 | 2265644D | Endcap, Top (universal Silver) |
|
- | |||||
| 21 | 2265644W | Endcap, Top (white) |
|
$ 148.05 | |||||
| 21 | 2252863 | Endcap, Top (black) |
|
Immediately | $ 155.53 |
