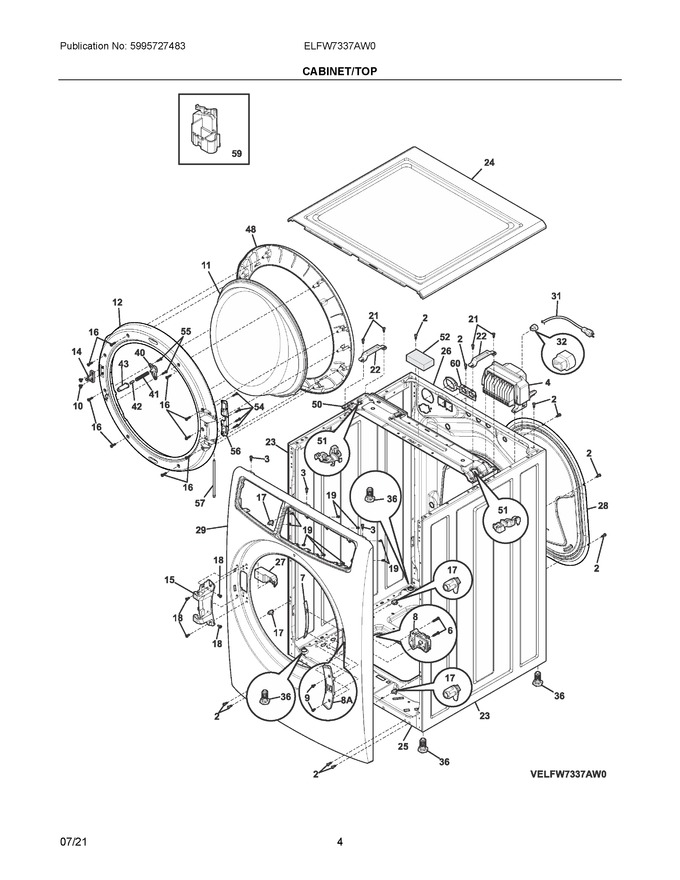

03 - Cabinet/top


04 - Motor/tub


05 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	131168200		Screw, Pan Head, 8-18b X 0.31			Immediately	$ 15.75
3	131168202		Screw, #10-16 X .375, W/sealing Wshr		Appelez-nous	-
4	5304529908		Motor Control, Assembly, W/cover			Immediately	$ 326.93
6	137262100		Screw, Pan Head Quad, 10-14 X 1.00			Immediately	$ 11.03
7	5304505144		Cover, Hinge Holes				$ 4.66
8	5304514774		Door Lock, Assembly, W/switch			Immediately	$ 127.04
9	131168200		Screw, 10-16ab X 0.375   (Replaces: 131477000)			Immediately	$ 15.75
10	137241000		Screw, Quad Ph, 10-16 X 0.375				$ 11.81
11	5304529631		Glass, Door Window			Immediately	$ 122.67
12	5304537076		Frame, Door, Inner   (Replaces: 5304529742)			Immediately	$ 142.34
14	5304505088		Latch, Door			Immediately	$ 39.32
15	5304529754		Hinge Assembly, Door, W/bushings			Immediately	$ 104.42
16	137087000		Screw, Comb Pnhd B, #10-16x.75, (9)			Immediately	$ 12.60
17	5304505102		Clip, Front Panel, (4)			Immediately	$ 15.27
18	5304505259		Screw, Quad Ph Type A, M5 X 0.8 X 14.5, (4)			Immediately	$ 18.26
19	5304505441		Screw, Pph B, 6-20x.375				$ 7.23
21	137087400		Screw, #10-16 X .625		Appelez-nous	-
22	5304505101		Bracket, Spring, (2)				$ 14.46
23	5304505139		Panel, Side, White, (2)			Immediately	$ 269.03
24	5304505081		Top Panel, White				$ 252.76
25	134646007		Base, Washed			Immediately	$ 264.27
26	5304529717		Panel, Back				$ 215.27
27	5304505104		Protection, Door Lock			Immediately	$ 16.55
28	134646206		Panel, Service, Back				$ 58.70
29	5304505058		Panel, Washer Front, White			Immediately	$ 281.30
31	5304522525		Power Cord, Electric Svce			Immediately	$ 69.03
32	5303209428		Bushing, Strain Relief				$ 18.90
36	5304522555		Leveling Leg, Screw, Plastic			Immediately	$ 29.32
40	5304505328		Cap, Door Vent				$ 17.67
41	5304505329		Spring, Door Vent				$ 17.67
42	5304505381		Magnet, Door Vent				$ 22.49
43	5304535443		Button, Door Vent   (Replaces: 5304505330)				$ 4.36
48	5304529866		Frame, Door, White, External				$ 136.55
50	5304505087		Bracket, Tub Suspension				$ 60.25
51	5304505221		Protector, Tub Bracket, Spring Hook, (2)				$ 17.67
52	131931202		Dampener, Vibration, Foam				$ 19.28
54	131205100		Screw, #8 Pan Head, 10-10b X 0.500, Cr/sq Drive			Immediately	$ 15.75
55	3205150		Screw, 8-12b X 0.750				$ 3.94
56	5304529750		Bracket, Hinge			Immediately	$ 21.69
57	5304529871		Pin, Hinge			Immediately	$ 33.74
59	5304505311		Support, Connector				$ 12.85
60	134372000		Grommet, Dispenser, Back Panel				$ 33.86
8A	5304505103		Cover, Door Lock, Front Flange			Immediately	$ 262.50
NI	134629400		Screw, Mc5x8.5 Torx, Cabinet Mtg				$ 14.18
NI	134591400		Plug, Hole, (7), Rear Cabinet				$ 23.63
NI	131302800		Screw, 10-16ab X 0.500   (Replaces: 131258400)			Immediately	$ 29.53
NI	5308014215		Screw, Sheet Metal, 6-20 X 0.375, (2)   (Replaces: 134477400)				$ 2.53
NI	131202300		Screw, 10-16ab X 0.625			Immediately	$ 14.96
NIA	5304522524		Harness, Wiring, Door Lock Dbl				$ 66.61
NIA	140028175051		Harness, Wiring, Motor Control   (Replaces: 5304522522)			Immediately	$ 26.68
NIA	5304529873		Gasket, Work Top				$ 21.69
