Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5304529946 Board Assembly, Ui Linear, W/housing-screw In-Stock Immediately $ 212.87

2 5304505044 Trim, Ring, Chrome Special Order $ 42.51

5 5304505045 Seal, Display Area Appelez-nous -
19 5304505441 Screw, Pph B, 6-20x.375 Special Order $ 7.23

24 5304505081 Top Panel, White Special Order $ 252.76

29 5304529699 Console Assembly Special Order $ 124.77

NI 131168200 Screw, Pan Head, 8-18b X 0.31 In-Stock Immediately $ 15.75

NI 137150200 Terminal Block Kit, Main Special Order $ 35.44

NI 5304529731 Harness Special Order $ 201.02


    View Diagram in Separate Window     Print Icon   Print Part List

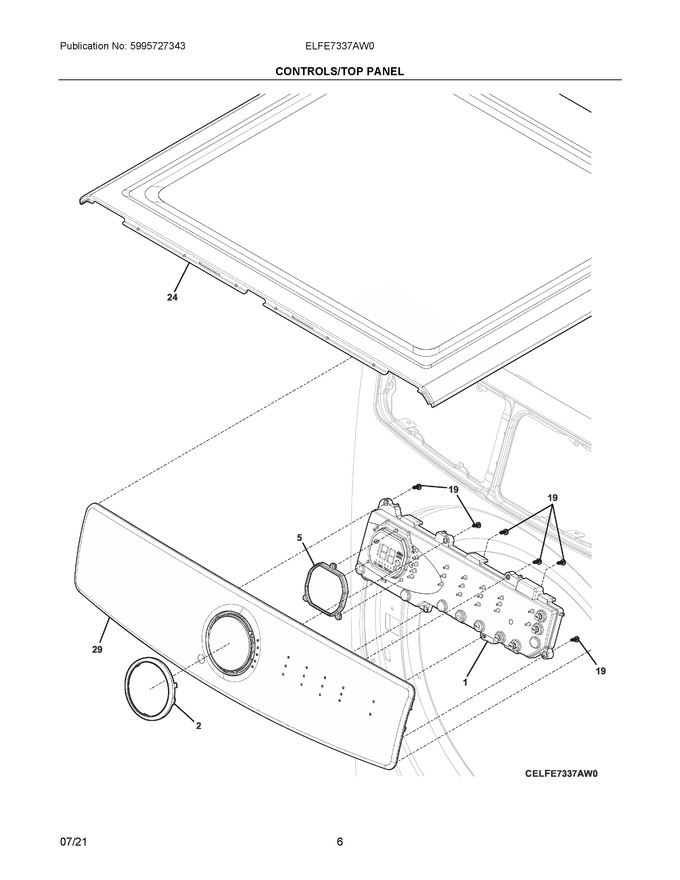

Diagram for ELFE7337AW0
