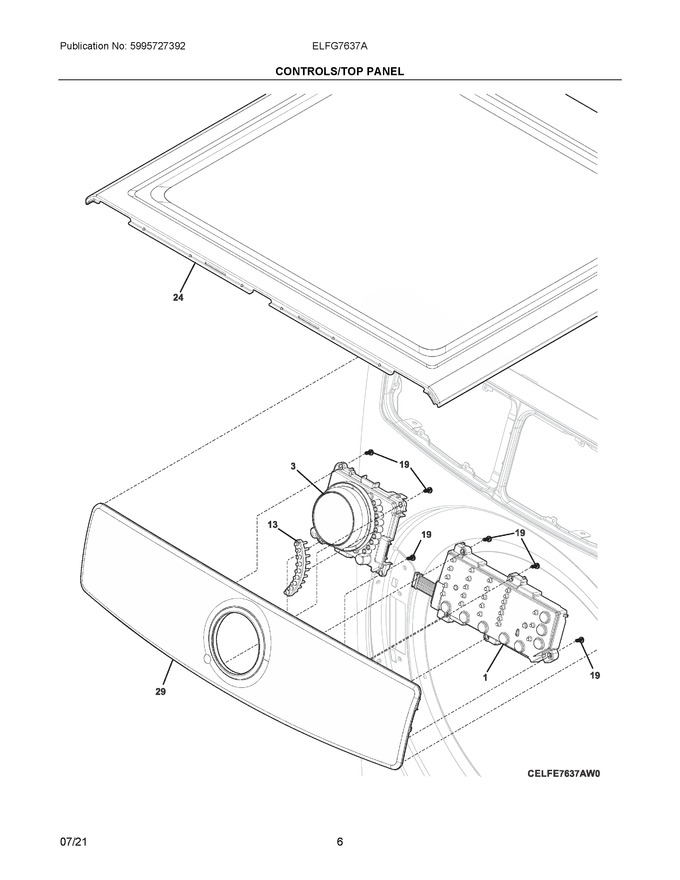

04 - Controls/top Panel
05 - Motor
06 - Burner
07 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304521513 | Board Assy, Ui Programmed, Satellite, W/housing-screw |
|
Immediately | $ 274.29 | ||||
| 3 | 5304529822 | Knob Assembly, Complete, W/boards |
|
Immediately | $ 210.45 | ||||
| 13 | 5304529751 | Diffuser, Light |
|
$ 16.87 | |||||
| 19 | 5304505441 | Screw, Pph B, 6-20x.375 |
|
$ 7.23 | |||||
| 24 | 5304505082 | Top Panel, Titanium |
|
$ 294.32 | |||||
| 29 | 5304529948 | Console Assembly |
|
- | |||||
| NI | 131168200 | Screw, Pan Head, 8-18b X 0.31 |
|
Immediately | $ 15.75 | ||||
| NI | 5304521334 | Harness, Wiring, Main |
|
$ 193.32 |
