SELECT A DIAGRAM

01 - Cover Sheet


02 - Control Panel


03 - Microwave Oven

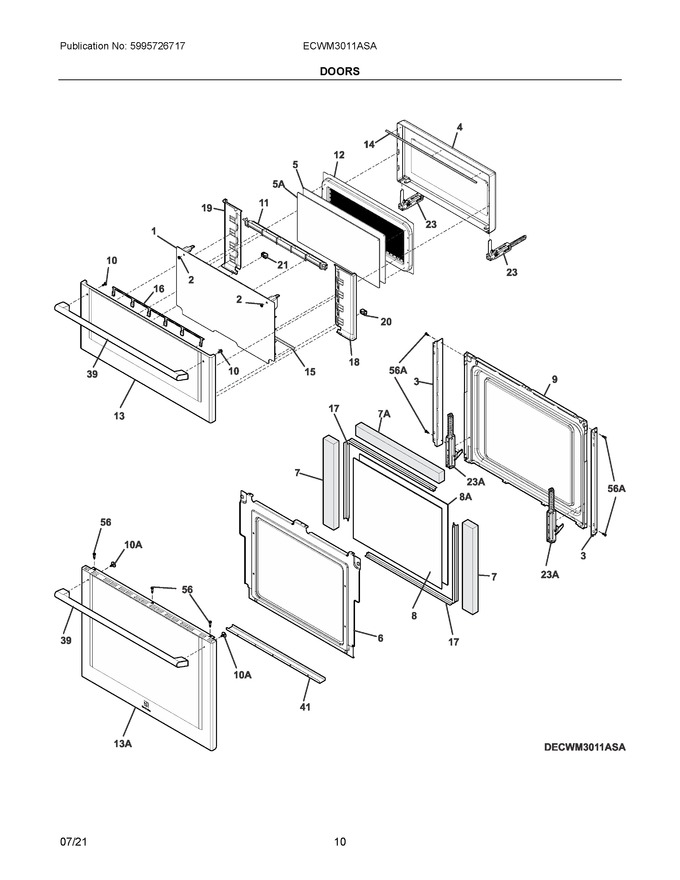

04 - Lower Oven


05 - Doors


06 - Wiring Diagram


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	555118433		Door Glass, Assembly, Front, Microwave			Immediately	$ 168.14
2	330158601		Spacer, Door Handle		Appelez-nous	-
3	5304520787		Trim, Oven Door, Black, Side Vent				$ 68.51
4	561626486		Door Frame, Inner, Microwave, W/glass			Immediately	$ 246.05
5	807625502		Glass, Door, Inner, W/graphics		Appelez-nous	-
6	808474502		Shield, Wool, Oven Door				$ 120.50
7	807887502		Insulation, Door, Side, (2)				$ 16.85
8	316502500		Glass, Door, Inner, Shr   (Replaces: 316502504)			Immediately	$ 128.50
9	808474610		Liner, Oven Door, Black			Immediately	$ 144.09
10	5303310510		Screw, 10-24 X 0.625				$ 15.75
11	A06645500		Cover, Door Glass, Top, Separator				$ 46.35
12	555040920		Inner Door, Assembly, Microwave			Immediately	$ 205.10
13	5304525144		Door Assembly, Outer, Black/stainless, Microwave				$ 519.52
14	808082001		Gasket, Door Cover, Microwave				$ 100.33
15	808140001		Tape, Drip, Front, Door Glass				$ 40.78
16	5304525161		Cover, Door Top, Plastic				$ 32.11
17	5304503172		Spacer, Door Glass, (2)   (Replaces: 316502101)				$ 28.65
18	5304525157		Cover, Door Column, Rh		Appelez-nous	-
19	5304525158		Cover, Door Column, Lh		Appelez-nous	-
20	5304525159		Stopper, Plastic, Rh Door				$ 10.95
21	5304525160		Stopper, Plastic, Lh Door				$ 10.95
23	A06683602		Hinge, Door, Microwave				$ 111.73
39	5304523585		Handle, Door, Stainless				$ 186.35
41	5304500644		Support, Glass				$ 19.35
56	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 30.55
10A	5304414648		Screw, Handle Mtg., #10-24 X .625   (Replaces: 316439510)				$ 15.75
13A	5304523587		Door Assembly, Outer, Glass/steel, Black/stainless, W/logo				$ 525.39
23A	808930403		Hinge, Door, Orange, Soft Close				$ 125.55
56A	5303324184		Screw, 8-18 X 5/16, Black			Immediately	$ 15.75
5A	555033602		Glass, Door, Inner				$ 100.28
7A	5304505925		Insulation, Door, Upper				$ 16.85
8A	316502506		Glass, Door, Inner, Shr Tinted		Appelez-nous	-
NI	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 15.75
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 30.55
NI	349479701		Screw, Pt T20, 4 X 10, (8)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
