01 - Cover Sheet

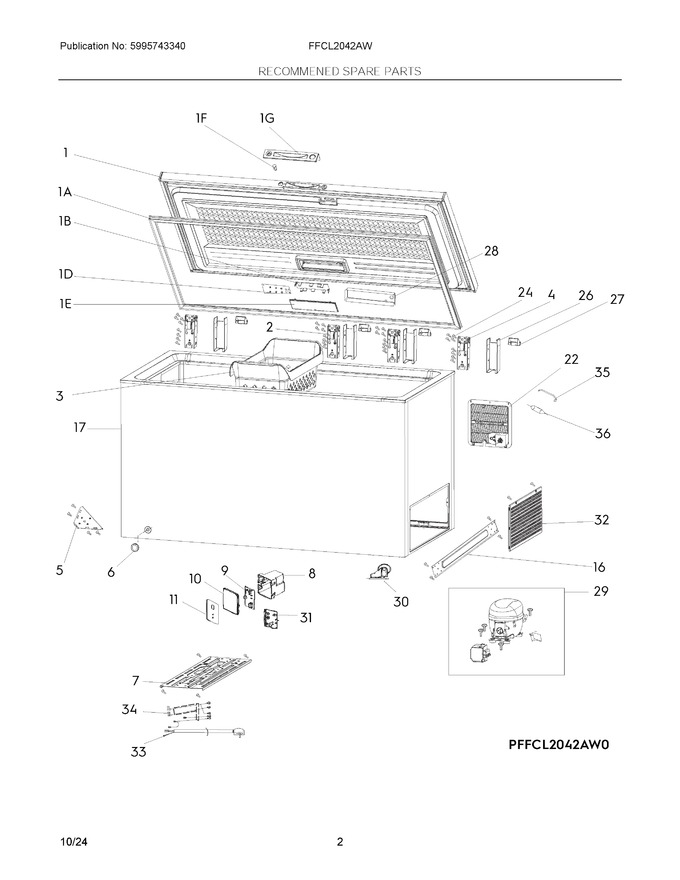

02 - Recommened Spare Parts


03 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304538825		Door, Complete				$ 316.93
2	5304538826		Hinge, Middle, Door				$ 54.28
3	5304512559		Basket			Immediately	$ 80.12
4	5304533541		Hinge, Wide, Door			Immediately	$ 87.86
5	5304512560		Foot Assembly, Cabinet, Adjustable				$ 75.33
6	5304512561		Cap, Exterior Drain				$ 12.65
7	5304512562		Base, Compressor Mtg.		Appelez-nous	-
8	5304533542		Housing, Control Box				$ 19.76
9	5304533543		Pc Board, Display, Control			Immediately	$ 119.02
10	5304533544		Control Panel, Cover			Immediately	$ 18.95
11	5304533545		Overlay, Control Panel				$ 27.91
16	5304512844		Bracket, Bottom		Appelez-nous	-
17	5304538827		Cabinet, Assembly		Appelez-nous	-
22	5304512577		Grill, Venting, Rear				$ 42.08
24	5304512579		Screw, Tapping				$ 6.51
26	5304512838		Cover, Hinge, Lower				$ 14.15
27	5304512839		Cover, Hinge, Upper				$ 6.70
28	5304512580		Plate, Fixed		Appelez-nous	-
29	5304538834		Compressor, Dc Inverter			Immediately	$ 218.43
30	5304512848		Caster Kit, 6 Casters, W/screw Kit				$ 231.04
31	5304538828		Board, Freq Driver			Immediately	$ 141.36
32	5304538829		Shutter, Oven-air				$ 25.80
33	5304538830		Power Cord		Appelez-nous	-
34	5304538831		Wiring		Appelez-nous	-
35	5304538832		Pipe Connector				$ 7.54
36	5304538833		Filter, Drier			Immediately	$ 22.92
1A	5304512842		Gasket, Door				$ 117.45
1B	5304512552		Housing, Led Board				$ 18.79
1D	5304512554		Board, Led Light				$ 139.14
1E	5304512555		Lens, Led Light				$ 10.85
1F	5304512556		Light, Indicator				$ 36.10
1G	5304512557		Handle, Recessed Pocket				$ 64.29
