SELECT A DIAGRAM

01 - Cover Sheet

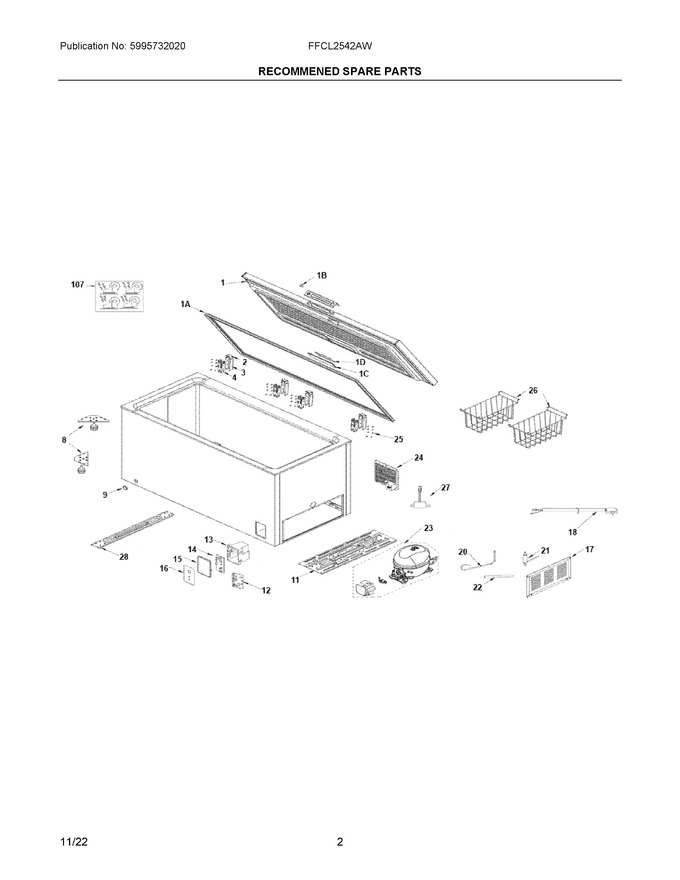

02 - Recommened Spare Parts


03 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304533540		Door Assembly, Complete, White			Immediately	$ 374.44
2	5304512839		Cover, Hinge, Upper				$ 6.70
3	5304512838		Cover, Hinge, Lower				$ 14.15
4	5304533541		Hinge, Door			Immediately	$ 87.86
8	5304512560		Foot Assembly, Cabinet, Adjustable				$ 75.33
9	5304512561		Cap, Exterior Drain				$ 12.65
11	5304512851		Base, Compressor Mtg.		Appelez-nous	-
12	5304533538		Pc Board, Driver, Variable Speed			Immediately	$ 265.68
13	5304533542		Housing, Control Box				$ 19.76
14	5304533543		Pc Board, Display, Control			Immediately	$ 119.02
15	5304533544		Control Panel, Cover			Immediately	$ 18.95
16	5304533545		Overlay, Control Panel				$ 27.91
17	5304533546		Cover, Machine Cmprtmt		Appelez-nous	-
18	5304533547		Cord, Power, Electric Serv		Appelez-nous	-
20	5304533548		Tube, Connector		Appelez-nous	-
21	5304512846		Filter, Drier				$ 62.17
22	5304528024		Tube, Processing		Appelez-nous	-
23	5304533549		Compressor, Assembly, Reciprocating, W/dc Inverter			Immediately	$ 295.76
24	5304512577		Grill, Venting, Rear				$ 42.08
25	5304512579		Screw, Tapping, (24)				$ 6.51
26	5304512718		Basket				$ 87.71
27	5304533550		Filter Assembly, Noise				$ 90.03
28	5304512852		Bracket, Bottom				$ 68.76
107	5304512848		Caster Kit, 6 Casters, W/screw Kit				$ 231.04
1A	5304512850		Gasket, Door			Immediately	$ 131.60
1B	5304512556		Light, Indicator				$ 36.10
1C	5304512555		Lens, Led Light				$ 10.85
1D	5304512554		Board, Led Light				$ 139.14
