01 - Cover Sheet

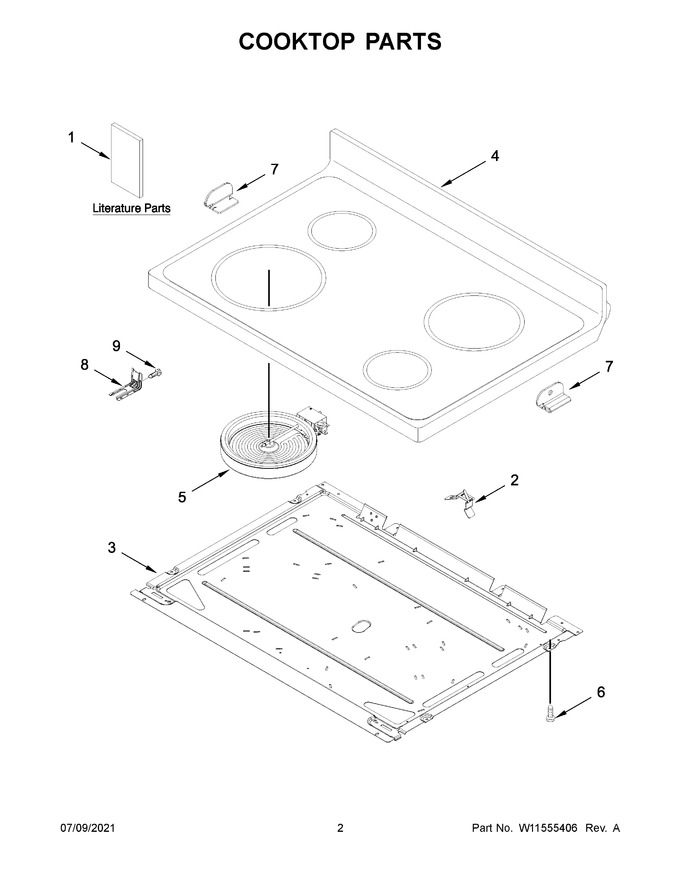

02 - Cooktop Parts
03 - Control Panel Parts
04 - Door Parts
05 - Chassis Parts
06 - Drawer And Broiler Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11047681 | Installation Instructions |
|
- | |||||
| 2 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 10.40 | ||||
| 3 | W11728329 | Pan, Radiant Element (Replaces: W10691223) |
|
Immediately | $ 143.49 | ||||
| 4 | W10906141 | Cooktop (black) (Replaces: W10853124) |
|
$ 233.17 | |||||
| 5 | WP8273993 | Element (1800w) (left Front And Right Rear) (Replaces: 8273993) |
|
Immediately | $ 244.51 | ||||
| 6 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 7 | W10607641 | Bracket, Cooktop (left) |
|
$ 33.52 | |||||
| 8 | W11839019 | Bracket, Anti-tip (Replaces: W11379945) |
|
Immediately | $ 28.54 | ||||
| 9 | 7101P48560 | Screw, Anti-tip Kit |
|
- | |||||
| 1A | W10881062 | User Instructions |
|
- | |||||
| 1B | W11326823 | Tech Sheet |
|
- | |||||
| 4A | W10906139 | Cooktop (white) (Replaces: W10853442) |
|
$ 586.24 | |||||
| 5A | W11171119 | Element (1200w) (right Front And Left Rear) (Replaces: W10248261) |
|
Immediately | $ 182.23 | ||||
| 7A | W10607642 | Bracket, Cooktop (right) |
|
- | |||||
| NI | 3184020 | Wire, Ground (Replaces: 8523279) |
|
$ 86.92 | |||||
| NI | 313660 | Clip, Ground Wire |
|
- | |||||
| NI | W11750779 | Harness, Wire (main) (Replaces: W11452627) |
|
- | |||||
| NI | W11171894 | Harness, Cooktop (left) |
|
$ 228.00 | |||||
| NI | NP | Cabinet (not Serviced) |
|
- | |||||
| NI | W11596058 | Harness, Cooktop (right) (Replaces: W11134551) |
|
Immediately | $ 34.76 |
