01 - Cover Sheet

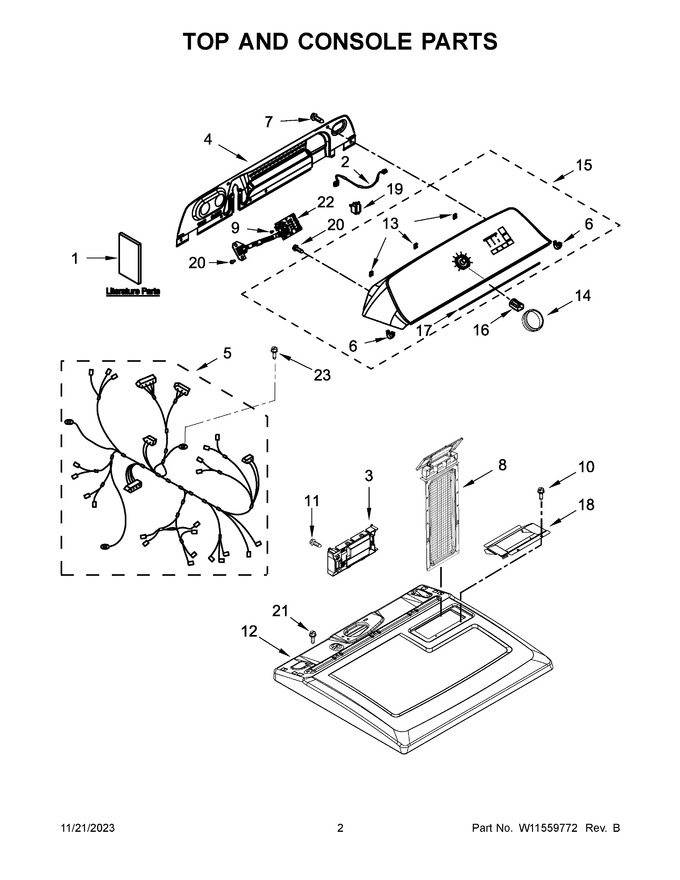

02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11364660		Owners Manual		Appelez-nous	-
2	W11463863		Hmi Harness		Appelez-nous	-
3	W11561939		Appliance Control Unit (acu)   (Replaces: W11545315)				$ 332.31
4	W10775189		Panel, Rear				$ 390.13
5	W11561661		Harness, Main   (Replaces: W11441885)		Appelez-nous	-
6	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
7	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.55
8	W11778254		Lint Screen (white)   (Replaces: W11451393)			Immediately	$ 54.63
9	8182201		Screw   (Replaces: 8540727)				$ 14.08
10	W11693756		Screw   (Replaces: 688983)			Immediately	$ 14.76
11	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 8.25
12	W11222514		Top (white)   (Replaces: W10613389)			Immediately	$ 196.23
13	W11213336		Nut, "u   (Replaces: W10298336)				$ 8.13
14	W11662669		Knob Assembly   (Replaces: W11430050)			Immediately	$ 35.87
15	W11595209		Assembly, Console (white)   (Replaces: W11394096)				$ 332.15
16	WP688805		Clip, Spring   (Replaces: 688805)			Immediately	$ 8.20
17	W11721376		Seal, Console   (Replaces: W10726632)		Appelez-nous	-
18	W10662472		Collar, Lint Chute				$ 77.87
19	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 134.05
20	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 8.58
21	WP681414		Screw   (Replaces: 343641)			Immediately	$ 8.47
22	W11627521		Encoder, Mega Assembly   (Replaces: W11374901)			Immediately	$ 323.41
23	W10850756		Screw   (Replaces: W10773242)				$ 8.20
1A	W11432655		Tech Sheet		Appelez-nous	-
1B	W11423864		Quick Start Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
