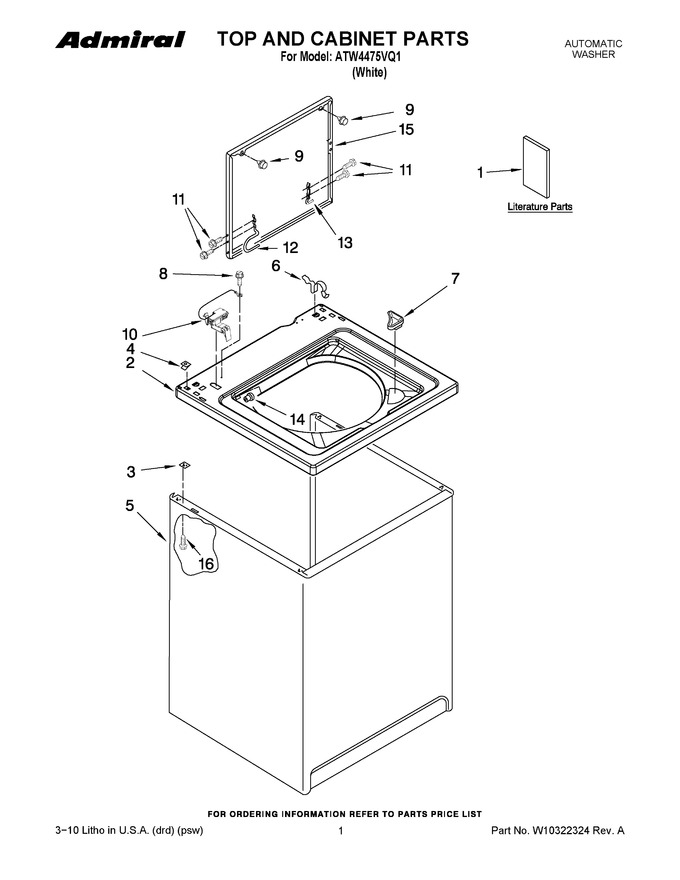

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10150671 | Feature Sheet (spanish) |
|
- | |||||
| 1 | W10199994 | Wiring Diagram |
|
- | |||||
| 1 | W10062897 | Energy Guide |
|
- | |||||
| 1 | W10200826 | Use & Care Guide |
|
- | |||||
| 1 | W10200890 | Installation Instructions (english/french) |
|
- | |||||
| 1 | W10200891 | Installation Instructions (spanish) |
|
- | |||||
| 1 | W10150670 | Feature Sheet (english/french) |
|
- | |||||
| 2 | 8318064 | Top |
|
$ 135.68 | |||||
| 3 | WP62750 | Spacer, Cabinet To Top (4) (Replaces: 62750) |
|
Immediately | $ 7.69 | ||||
| 4 | WP357213 | Nut-push-in (2) (Replaces: 357213) |
|
$ 7.39 | |||||
| 5 | 63424 | Cabinet |
|
$ 370.02 | |||||
| 6 | WP62780 | Clip, Top & Cabinet & Rear Panel (2) (Replaces: 62780) |
|
Immediately | $ 7.80 | ||||
| 7 | WP3362952 | Dispenser-bleach (Replaces: 3362952) |
|
Immediately | $ 12.09 | ||||
| 8 | WP3351614 | Screw, Ground (Replaces: 3351614) |
|
Immediately | $ 6.95 | ||||
| 9 | WP9724509 | Bumper, Lid (2) (Replaces: 9724509) |
|
Immediately | $ 7.93 | ||||
| 10 | WP8318084 | Switch, Lid (Replaces: 8318084) |
|
Immediately | $ 39.82 | ||||
| 11 | WPW10119828 | Screw, Lid Hinge Mounting (4) (Replaces: W10119828) |
|
Immediately | $ 7.19 | ||||
| 12 | W10225135 | Hinge, Lid (l.h.) |
|
$ 24.35 | |||||
| 13 | WP91770 | Hinge, Lid (r.h.) (Replaces: 91770) |
|
$ 27.45 | |||||
| 14 | WP21258 | Bearing, Lid Hinge (2) (Replaces: 21258) |
|
Immediately | $ 7.63 | ||||
| 15 | WPW10193857 | Lid (Replaces: 8541774) |
|
$ 356.71 | |||||
| 16 | WP3390631 | Screw 10-16 X 3/8 (4) (Replaces: 3390631) |
|
$ 7.82 |
