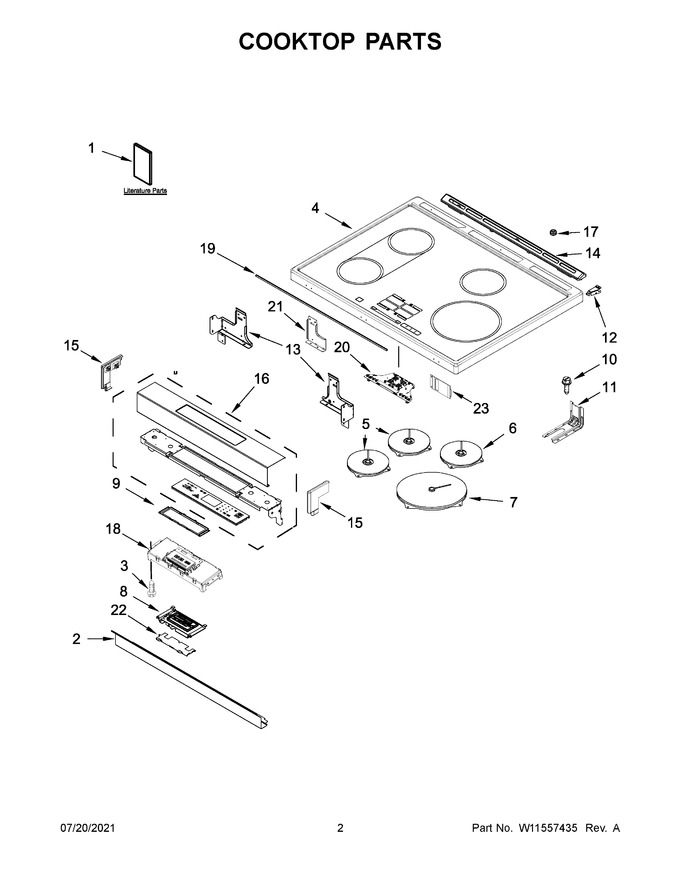

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11477340 | Use And Care Guide |
|
- | |||||
| 2 | W10743276 | Console, Lower Panel (stainless) |
|
$ 86.68 | |||||
| 3 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 4 | W10808299 | Cooktop (black) (Replaces: W10536317) |
|
Immediately | $ 936.19 | ||||
| 5 | W11672688 | Element (left Front And Left Rear) (Replaces: W10636723) |
|
Immediately | $ 165.84 | ||||
| 6 | WPW10410580 | Hotplate (right Rear) (Replaces: W10410580) |
|
$ 255.85 | |||||
| 7 | WPW10410578 | Element (right Front) (Replaces: W10410578) |
|
$ 308.23 | |||||
| 8 | W11128223 | Assembly, Display (Replaces: W10759323) |
|
Immediately | $ 501.38 | ||||
| 9 | W10555923 | Bracket, User Interface |
|
$ 107.43 | |||||
| 10 | 7101P48560 | Screw, Anti-tip Kit |
|
- | |||||
| 11 | W11502257 | Bracket, Anti-tip (Replaces: W11379947) |
|
Immediately | $ 23.03 | ||||
| 12 | W10162253 | Brace, Corner (left) |
|
$ 74.13 | |||||
| 13 | W10289169 | Support, Cooktop (right) |
|
$ 30.05 | |||||
| 14 | W11170796 | Vent, Trim Top (stainless) (Replaces: W10636529) |
|
Immediately | $ 145.75 | ||||
| 15 | W10555937 | Endcap (stainless (left)) |
|
$ 67.95 | |||||
| 16 | W11034444 | Console (stainless) (Replaces: W10901127) |
|
Immediately | $ 812.61 | ||||
| 17 | W11104127 | Bumper (Replaces: W10664705) |
|
Immediately | $ 21.97 | ||||
| 18 | W11100619 | Control, Electronic (maxwell) (Replaces: W10759304) |
|
Immediately | $ 328.20 | ||||
| 19 | W10802441 | Gasket, Console/ Cooktop (Replaces: W10612719) |
|
Immediately | $ 22.73 | ||||
| 20 | W11208294 | Interface, User (Replaces: W10808070) |
|
Immediately | $ 506.94 | ||||
| 21 | W10598048 | Bracket, Console (center) |
|
$ 25.73 | |||||
| 22 | W10558372 | Bracket, Control |
|
$ 25.10 | |||||
| 23 | W11355689 | Keypad Shield |
|
$ 22.64 | |||||
| 12A | W10162252 | Brace, Corner (right) |
|
$ 78.59 | |||||
| 13A | W10289170 | Support, Cooktop (left) |
|
$ 30.05 | |||||
| 15A | W10555940 | Endcap (stainless (right)) |
|
$ 67.95 | |||||
| 1A | W11393919 | Tech Sheet |
|
- | |||||
| 1B | W11477341 | Quick Start Guide |
|
- | |||||
| NI | 3400964 | Clip, Wire (Replaces: 3196520) |
|
$ 89.00 | |||||
| NI | W11454514 | Harness, Main |
|
$ 252.42 | |||||
| NI | NP | Following Parts Not Illustrated |
|
- | |||||
| NI | W11025616 | Harness, Keypad (Replaces: W10575120) |
|
Immediately | $ 53.35 | ||||
| NI | 7103P02760 | Nut |
|
- | |||||
| NI | W11175842 | Suppressor (Replaces: W10653092) |
|
Immediately | $ 105.04 | ||||
| NI | W11226772 | Harness, Display (Replaces: W11172426) |
|
Immediately | $ 236.93 | ||||
| NI | W11226775 | Harness, Bake Drawer (Replaces: W11172530) |
|
$ 238.60 |
