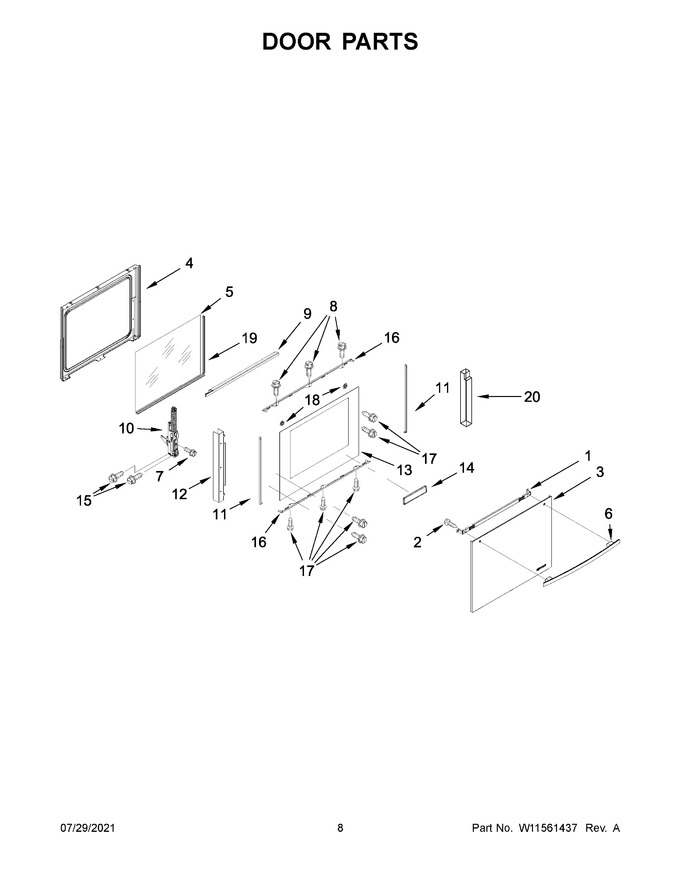

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10541911 Bracket, Glass Upper Handle In-Stock Immediately $ 39.92

2 WP8533988 Screw   (Replaces: 8533988) In-Stock Immediately $ 8.78

3 W10541871 Assembly, Outer Door (stainless) Appelez-nous -
4 W10902192 Liner, Door   (Replaces: W10826568) Special Order $ 335.04

5 W11339500 Glass, Inner   (Replaces: W11223202) Special Order $ 171.17

6 W11195001 Assembly, Door Handle (stainless)   (Replaces: W10551013) Special Order $ 229.46

7 W10777162 Screw   (Replaces: W10031780) In-Stock Immediately $ 8.26

8 W11245710 Screw   (Replaces: 9780274) In-Stock Immediately $ 14.75

9 W11025120 Scoop, Door (stainless)   (Replaces: W10551024) Special Order $ 123.01

10 W11226493 Hinge, Slow Close   (Replaces: W10885516) Special Order $ 114.99

11 W10634236 Trim, Door Side (black) Appelez-nous -
12 W11744483 Rail, Vertical Support   (Replaces: W10813139) In-Stock Immediately $ 76.19

13 WPW10634268 Assembly, Outer Door (stainless)   (Replaces: W10634268) Special Order $ 380.75

14 WPW10214168 Badge, Nameplate   (Replaces: W10190716) Special Order $ 85.95

15 WP355214 Screw   (Replaces: W10327235) In-Stock Immediately $ 8.80

16 W10813140 Rail, Horizontal Support In-Stock Immediately $ 177.21

17 WPW10031790 Screw   (Replaces: W10031790) In-Stock Immediately $ 8.74

18 W11676355 Washer, Door   (Replaces: W10319024) In-Stock Immediately $ 14.81

19 W11673273 Glass Spacer   (Replaces: W11379948) In-Stock Immediately $ 31.04

20 W11025151 Insulation, Door   (Replaces: W10766562) Special Order $ 220.55


    View Diagram in Separate Window     Print Icon   Print Part List
