01 - Cover Sheet
02 - Top And Cabinet Parts
03 - Door Parts

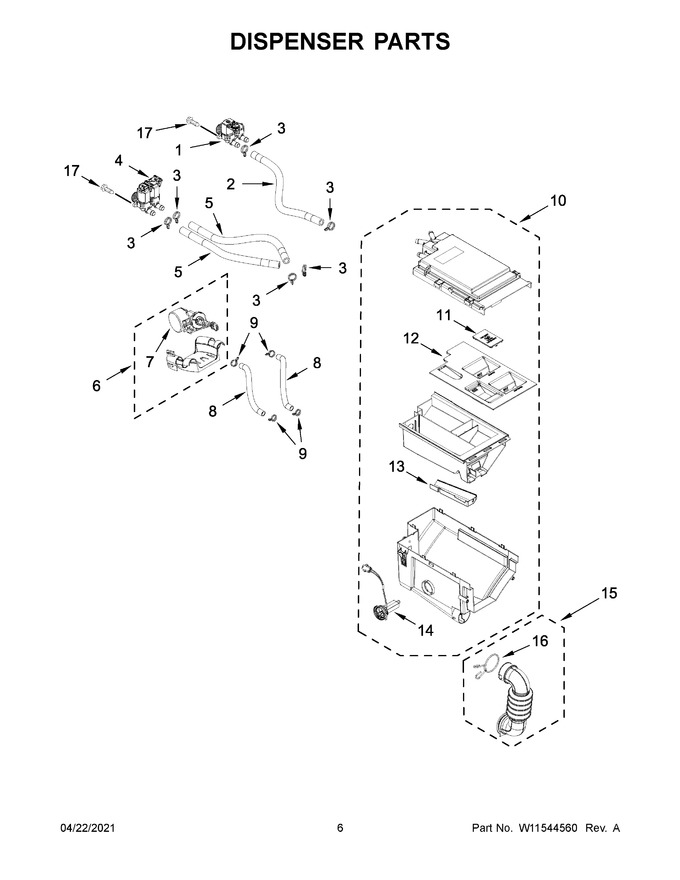

04 - Dispenser Parts
05 - Water System Parts
06 - Tub And Basket Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11688994 | Valve, Inlet (single) (Replaces: W11036928) |
|
Immediately | $ 92.73 | ||||
| 2 | W11316257 | Hose, Inlet (hot) (Replaces: W10920135) |
|
Immediately | $ 34.37 | ||||
| 3 | WP596669 | Clamp, Hose (Replaces: W10096851) |
|
Immediately | $ 8.82 | ||||
| 4 | W11688995 | Valve, Inlet (double) (Replaces: W11036930) |
|
Immediately | $ 94.18 | ||||
| 5 | W11316599 | Hose, Inlet (cold) (Replaces: W10920133) |
|
$ 34.39 | |||||
| 6 | W11316271 | Assembly, Dosing Pump (Replaces: W11041150) |
|
Immediately | $ 341.26 | ||||
| 7 | W11318806 | Pump, Metering (Replaces: W10903621) |
|
Immediately | $ 334.66 | ||||
| 8 | W11316272 | Hose (Replaces: W11041152) |
|
$ 34.56 | |||||
| 9 | WP596669 | Clamp, Hose (Replaces: 9724997) |
|
Immediately | $ 8.82 | ||||
| 10 | W11524106 | Assembly, Dispenser (Replaces: W11437245) |
|
Immediately | $ 239.10 | ||||
| 11 | W11316374 | Lid, Dispenser (Replaces: W11106530) |
|
$ 33.66 | |||||
| 12 | W11316373 | Cover, Dispenser (Replaces: W11106527) |
|
$ 103.32 | |||||
| 13 | W11316375 | Cover, Detergent Drawer (Replaces: W11106522) |
|
$ 81.70 | |||||
| 14 | W11316376 | Assembly, Detergent Sensor (Replaces: W11041160) |
|
$ 223.67 | |||||
| 15 | W11316604 | Assembly, Dispenser Hose (Replaces: W10920132) |
|
Immediately | $ 23.59 | ||||
| 16 | W10239910 | Clamp, Hose |
|
Immediately | $ 65.30 | ||||
| 17 | WP90767 | Screw (Replaces: 90767) |
|
Immediately | $ 8.25 |
