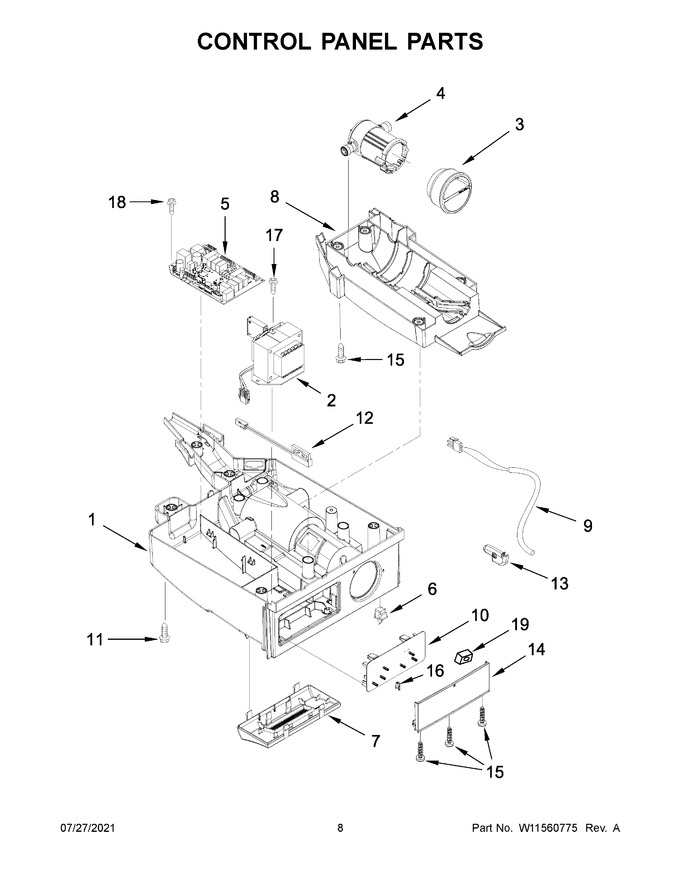

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10475405 | Housing, Control |
|
Immediately | $ 172.81 | ||||
| 2 | WPW10485951 | Transformer (Replaces: W10485951) |
|
$ 343.65 | |||||
| 3 | W10800355 | Filter Cap |
|
- | |||||
| 4 | W11266112 | Assembly, Water Filter Housing (Replaces: W11168063) |
|
$ 226.89 | |||||
| 5 | W11034363 | Control, Electronic (Replaces: W10886282) |
|
Immediately | $ 415.53 | ||||
| 6 | W11291138 | Switch, Rocker (Replaces: W10847852) |
|
Immediately | $ 36.67 | ||||
| 7 | W10492487 | Assembly, Diamond Led |
|
$ 292.57 | |||||
| 8 | W10475416 | Cover, Filter |
|
$ 122.46 | |||||
| 9 | WPW10511923 | Thermistor, Bin (Replaces: W10511923) |
|
Immediately | $ 64.91 | ||||
| 10 | W11325205 | Assembly, Control (Replaces: W11176270) |
|
Immediately | $ 408.40 | ||||
| 11 | WP489474 | Screw (Replaces: 12990501) |
|
Immediately | $ 8.55 | ||||
| 12 | W11221357 | Switch, Reed (Replaces: W11105994) |
|
$ 61.33 | |||||
| 13 | W10526623 | Clamp, Thermistor |
|
- | |||||
| 14 | W10545357 | Assembly, Fascia |
|
$ 143.26 | |||||
| 15 | WP9741232 | Screw (Replaces: 9741232) |
|
Immediately | $ 5.07 | ||||
| 16 | WP2223877 | Latch, Push (Replaces: 2223877) |
|
$ 120.84 | |||||
| 17 | W10165274 | Screw |
|
$ 13.47 | |||||
| 18 | 2006254 | Screw (Replaces: 489214) |
|
$ 13.79 | |||||
| 19 | W11332210 | Damper, Fascia |
|
- |
