SELECT A DIAGRAM

01 - Cover Sheet

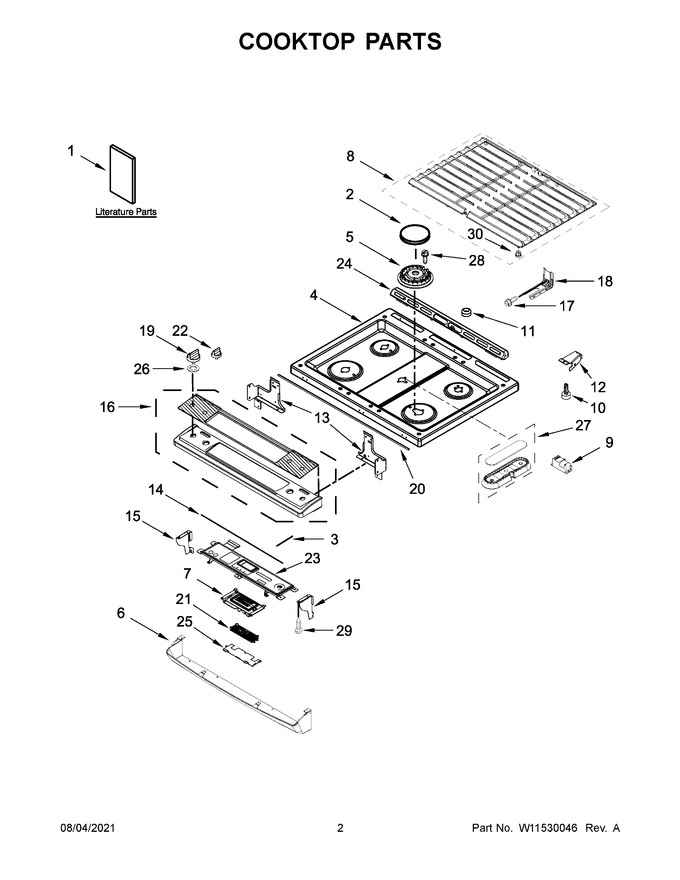

02 - Cooktop Parts


03 - Chassis Parts


04 - Manifold Parts


05 - Door Parts


06 - Drawer Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11399120		Installation Instructions		Appelez-nous	-
2	W11834859		Kit, Burner Cap (black (set Of 4))   (Replaces: W11352138)		Appelez-nous	-
3	W11744482		Gasket, Console Short   (Replaces: W10689102)				$ 22.92
4	W11450806		Cooktop (black)   (Replaces: W11341033)				$ 419.70
5	W11435630		Spreader, Flame (left Front & Right Front)   (Replaces: W11352018)			Immediately	$ 82.12
6	W11218703		Panel, Lower Console (black)   (Replaces: W10570527)			Immediately	$ 162.27
7	W11122852		Assembly, Display   (Replaces: W10759327)			Immediately	$ 527.64
8	W11449027		Kit, Grate (black)   (Replaces: W11353423)				$ 375.65
9	WPW10475149		Module, Spark (5+0)   (Replaces: W10475149)			Immediately	$ 179.05
10	8016P02260		Glide, Main Top		Appelez-nous	-
11	W11690600		Bumper   (Replaces: W10854253)			Immediately	$ 14.91
12	W10162253		Brace, Corner (left)				$ 74.13
13	W10289170		Support, Cooktop (left)				$ 30.05
14	W10802457		Gasket, Console   (Replaces: W10689101)				$ 21.33
15	W10547960		Bracket, Console (left)				$ 23.22
16	W10680371		Assembly, Console (stainless)				$ 509.33
17	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
18	W11502257		Bracket, Anti-tip   (Replaces: W11379947)			Immediately	$ 23.03
19	W11049637		Knob (stainless)   (Replaces: W10876615)				$ 83.99
20	W10802441		Gasket, Console/ Cooktop   (Replaces: W10612719)			Immediately	$ 22.73
21	W11050556		Control, Electronic   (Replaces: W10759301)			Immediately	$ 463.49
22	W11049638		Knob, Mini (stainless)   (Replaces: W10876616)				$ 83.78
23	W11049250		Assembly, Overlay (stainless)   (Replaces: W10888920)			Immediately	$ 313.83
24	W11256338		Trim, Vent (black)   (Replaces: W10577781)				$ 205.56
25	W10558372		Bracket, Control				$ 25.10
26	W11131701		Bushing (black)   (Replaces: W10739036)				$ 23.27
27	W11435660		Spreader, Flame   (Replaces: W11367086)			Immediately	$ 98.56
28	W11241230		Screw   (Replaces: W10673618)			Immediately	$ 14.73
29	W11245710		Screw   (Replaces: 9780274)			Immediately	$ 14.75
30	W10919249		Grate, Bumper   (Replaces: W10465081)			Immediately	$ 13.18
12A	W10162252		Brace, Corner (right)				$ 78.59
13A	W10289169		Support, Cooktop (right)				$ 30.05
15A	W10547961		Bracket, Console (right)				$ 23.22
15B	W10598048		Bracket, Console (center)				$ 25.73
1A	W11399127		Use & Care Guide		Appelez-nous	-
1B	W11393914		Tech Sheet		Appelez-nous	-
1C	W10400066		Quick Start Guide (english)		Appelez-nous	-
1D	W10400067		Quick Start Guide (french)		Appelez-nous	-
5A	W11435657		Spreader, Flame (left Rear)   (Replaces: W11352021)				$ 84.43
5B	W11435659		Spreader, Flame (right Rear)   (Replaces: W11352020)				$ 84.85
9A	W10860916		Module, Spark (0+2)   (Replaces: W10457998)			Immediately	$ 284.59
NI	NP		Following Parts Not Illustrated		Appelez-nous	-
NI	W11025616		Harness, Keypad   (Replaces: W10575120)			Immediately	$ 53.35
NI	W10580265		Harness, Bake/warm Drawer			Immediately	$ 88.03
NI	W11176109		Harness, Display   (Replaces: W10598169)			Immediately	$ 224.96
NI	W11198972		Harness, Bake/broil   (Replaces: W10754419)				$ 35.84
NI	16515		Clip, Harness   (Replaces: 313438)				$ 20.53
NI	W11454288		Harness, Main		Appelez-nous	-
NI	W10580229		Wire, Ground				$ 38.22
