01 - Cover Sheet
02 - Door
03 - Cabinet
04 - Shelves
05 - System
06 - Wiring Schematic
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

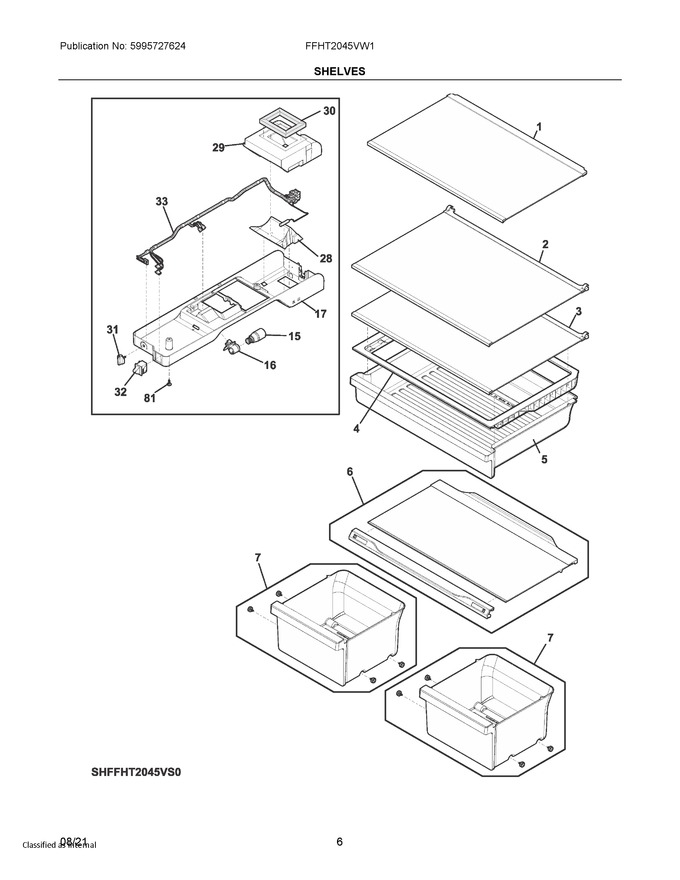

| 1 | 5304534973 | Shelf Assembly, Freezer, Glass, W/trim (Replaces: 5304524025) |
|
Immediately | $ 46.58 | ||||
| 2 | 5304534980 | Shelf Assembly, Refrigerator, Glass, W/trim (Replaces: 5304524073) |
|
$ 57.15 | |||||
| 3 | 5304534983 | Shelf Assembly, Refrigerator, Glass, Deli Drawer, W/trim (Replaces: 5304524091) |
|
Immediately | $ 58.04 | ||||
| 4 | 5304524136 | Carriage, Deli Drawer, Fill Width |
|
$ 71.01 | |||||
| 5 | 5304538633 | Drawer, Deli, Full Width (Replaces: 5304524137) |
|
Immediately | $ 77.84 | ||||
| 6 | 5304534981 | S/a Crisper Cover Br30 (Replaces: 5304529490) |
|
Immediately | $ 54.74 | ||||
| 7 | 5304522242 | Pan Assembly, Crisper, W/rollers |
|
Immediately | $ 109.88 | ||||
| 15 | 5304522314 | Bulb, Light, E17/12 Led |
|
Immediately | $ 44.66 | ||||
| 16 | 5304522315 | Socket, Led Light |
|
Immediately | $ 11.80 | ||||
| 17 | 5304524322 | Housing, Control Box |
|
$ 120.50 | |||||
| 28 | 5304522317 | Diffuser, Control Box, Bottom |
|
$ 18.60 | |||||
| 29 | 5304522318 | Diffuser, Control Box, Top |
|
$ 18.54 | |||||
| 30 | 5304520493 | Seal, Air Duct, Top |
|
Immediately | $ 20.22 | ||||
| 31 | 5304522319 | Knob, Control |
|
Immediately | $ 9.27 | ||||
| 32 | 140118119027 | Switch, Door/light, White (Replaces: 5304520495) |
|
Immediately | $ 4.83 | ||||
| 33 | 5304537127 | Harness, Wiring, Control Box, W/temp Sensor (Replaces: 5304522320) |
|
- | |||||
| 81 | 5304519765 | Screw, Hx Wash Hd, M4.2 X 12 |
|
Immediately | $ 3.37 |
