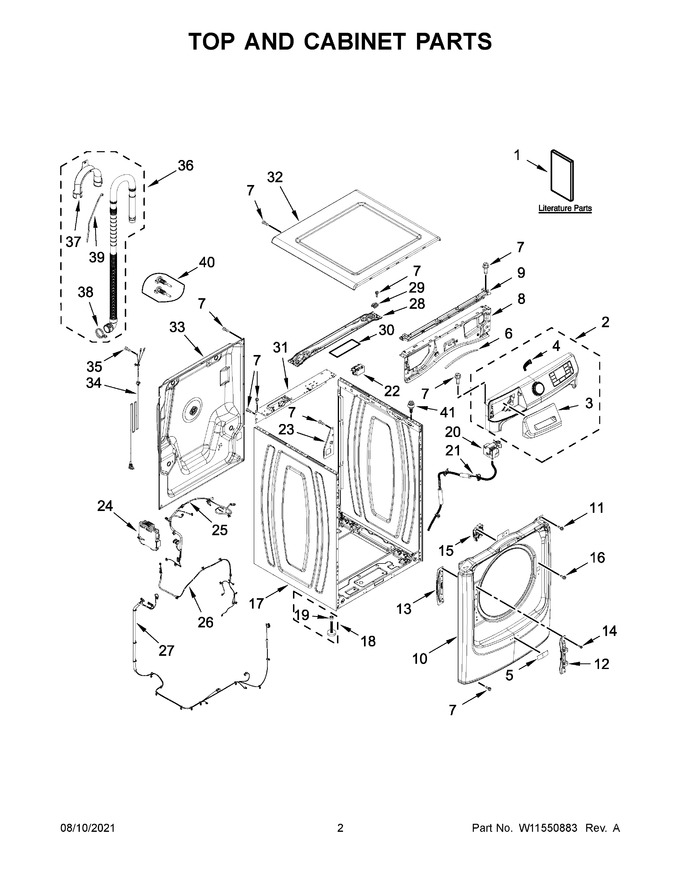

02 - Top And Cabinet Parts
03 - Door Parts
04 - Dispenser Parts
05 - Water System Parts
06 - Tub And Basket Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11411493 | Use And Care Guide |
|
- | |||||
| 2 | W11458339 | Assembly, Console (white) (Replaces: W11226319) |
|
$ 487.52 | |||||
| 3 | W11316627 | Handle, Drawer (white) (Replaces: W11169065) |
|
$ 253.51 | |||||
| 4 | W11316625 | Jumper, Harness Hmi (board To Board) (Replaces: W10920818) |
|
$ 176.49 | |||||
| 5 | W10908007 | Badge, Maytag (Replaces: W10639171) |
|
$ 64.00 | |||||
| 6 | W11316770 | Edge Guard (Replaces: W10407376) |
|
- | |||||
| 7 | W11568617 | Screw (Replaces: W10567155) |
|
$ 14.72 | |||||
| 8 | W11314678 | Bracket, Console (Replaces: W10915381) |
|
$ 156.02 | |||||
| 9 | W11458348 | Channel, Water (Replaces: W10796898) |
|
- | |||||
| 10 | W11316249 | Panel, Front (white) (Replaces: W11047831) |
|
$ 375.98 | |||||
| 11 | WP273556 | Screw (Replaces: 357640) |
|
Immediately | $ 8.43 | ||||
| 12 | WPW10208415 | Hinge, Base (Replaces: W10208415) |
|
Immediately | $ 117.42 | ||||
| 13 | W10299097 | Bracket, Hinge |
|
$ 21.13 | |||||
| 14 | W11661566 | Screw (Replaces: W10288126) |
|
$ 14.73 | |||||
| 15 | W11458150 | Lock, Door (Replaces: W11349294) |
|
$ 269.72 | |||||
| 16 | W10306501 | Screw |
|
- | |||||
| 17 | W11352995 | Cabinet (white) |
|
Immediately | $ 525.15 | ||||
| 18 | W10888529 | Leveling Leg Assembly (Replaces: W10073890) |
|
Immediately | $ 13.29 | ||||
| 19 | WP3359452 | Nut, Hex (Replaces: 3359452) |
|
Immediately | $ 7.55 | ||||
| 20 | W11316246 | Pressure Switch (Replaces: W11125159) |
|
Immediately | $ 103.04 | ||||
| 21 | W11456953 | Hose, Pressure Switch (Replaces: W11319791) |
|
Immediately | $ 34.90 | ||||
| 22 | W11470209 | Rfi Filter (Replaces: W11317429) |
|
- | |||||
| 23 | W11316769 | Bracket, Drain Hose (Replaces: W11091443) |
|
Immediately | $ 22.09 | ||||
| 24 | W11550672 | Appliance Control Unit (acu) |
|
- | |||||
| 25 | W11306275 | Harness, Upper |
|
- | |||||
| 26 | W11306273 | Harness, Ntc |
|
- | |||||
| 27 | W11516400 | Harness, Main Lower |
|
- | |||||
| 28 | W10467484 | Brace, Top |
|
$ 44.98 | |||||
| 29 | W11846996 | Retainer, Spring (Replaces: W10245452) |
|
$ 10.07 | |||||
| 30 | W11314674 | Foam Pad (Replaces: W10331064) |
|
$ 19.90 | |||||
| 31 | W11353016 | Bracket, Rear |
|
$ 24.92 | |||||
| 32 | WPW10208373 | Top (white) (Replaces: W10208373) |
|
$ 336.48 | |||||
| 33 | W11315708 | Panel, Rear (Replaces: W11046440) |
|
$ 402.71 | |||||
| 34 | W11235953 | Cord, Power |
|
- | |||||
| 35 | W10850756 | Screw (Replaces: W10773242) |
|
$ 8.20 | |||||
| 36 | W11551765 | Hose, Drain (external) (Replaces: W11392677) |
|
Immediately | $ 20.82 | ||||
| 37 | WPW10280024 | U-bend, Drain Hose (Replaces: W10280024) |
|
$ 83.51 | |||||
| 38 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 8.52 | ||||
| 39 | WPW10339879 | Cable Tie (Replaces: W10267532) |
|
$ 8.30 | |||||
| 40 | W11316629 | Bolt, Transport (short) (Replaces: W11041011) |
|
$ 43.73 | |||||
| 41 | W10208380 | Screw And Bushing Assembly |
|
$ 72.48 | |||||
| 1A | W11316319 | Installation Instructions |
|
- | |||||
| 1B | W11316328 | Quick Start Guide |
|
- |
