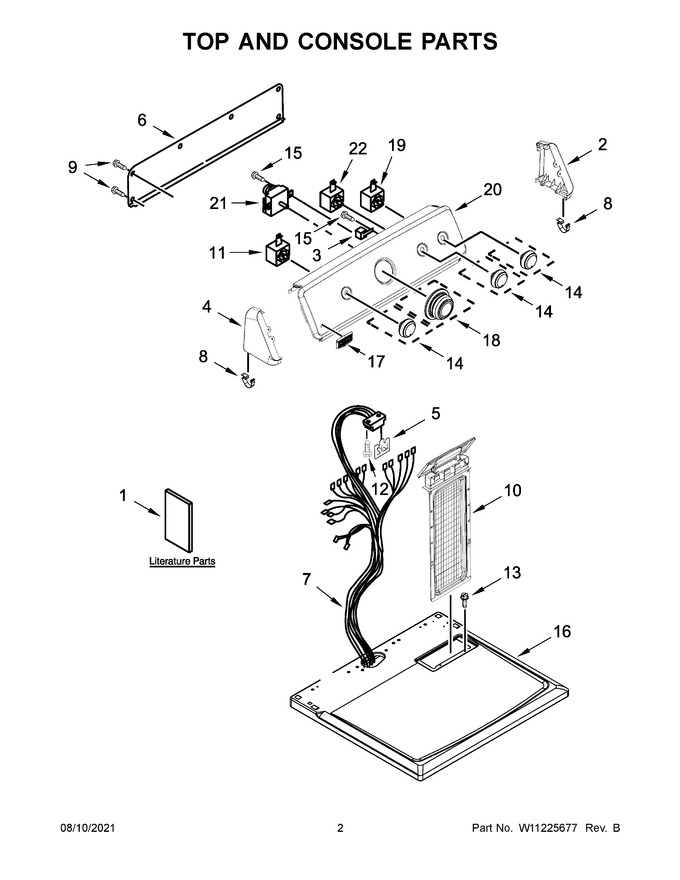

02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Burner Assembly Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11361424		Owners Manual		Appelez-nous	-
2	WPW10193821		Endcap, Right (white)   (Replaces: W10193821)				$ 74.72
3	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 134.05
4	WPW10193824		Endcap, Left (white)   (Replaces: W10193824)				$ 74.39
5	WPW10476828		Control, Electronic   (Replaces: W10476828)			Immediately	$ 329.93
6	W10103406		Panel, Rear (console)				$ 135.31
7	W10865740		Harness, Wiring		Appelez-nous	-
8	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
9	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.55
10	W11778253		Screen, Lint (white)   (Replaces: W11451394)			Immediately	$ 54.63
11	8530169		Switch, Rotary Temperature				$ 147.06
12	WP90767		Screw   (Replaces: 8533971)			Immediately	$ 8.25
13	W11693756		Screw   (Replaces: 688983)			Immediately	$ 14.76
14	W11837893		Assembly, Control Knob (grey)   (Replaces: W10562155)				$ 18.83
15	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 8.25
16	WP8563663		Top (white)   (Replaces: 8559800)			Immediately	$ 349.25
17	WPW10612925		Badge   (Replaces: W10612925)			Immediately	$ 42.36
18	W11837899		Assembly, Timer Knob (grey)   (Replaces: W10558463)			Immediately	$ 18.83
19	WPW10117655		Switch, Push To Start   (Replaces: W10117655)			Immediately	$ 85.60
20	W11219540		Console (white)   (Replaces: W11178666)				$ 378.13
21	WPW10185992		Timer Assembly (60 Hz.)   (Replaces: W10185992)			Immediately	$ 182.13
22	WP3405156		Switch, Rotary (2 Pos)   (Replaces: 3405156)				$ 152.79
1A	W11355745		Quick Start Guide		Appelez-nous	-
1B	W10876314		Wiring Diagram		Appelez-nous	-
