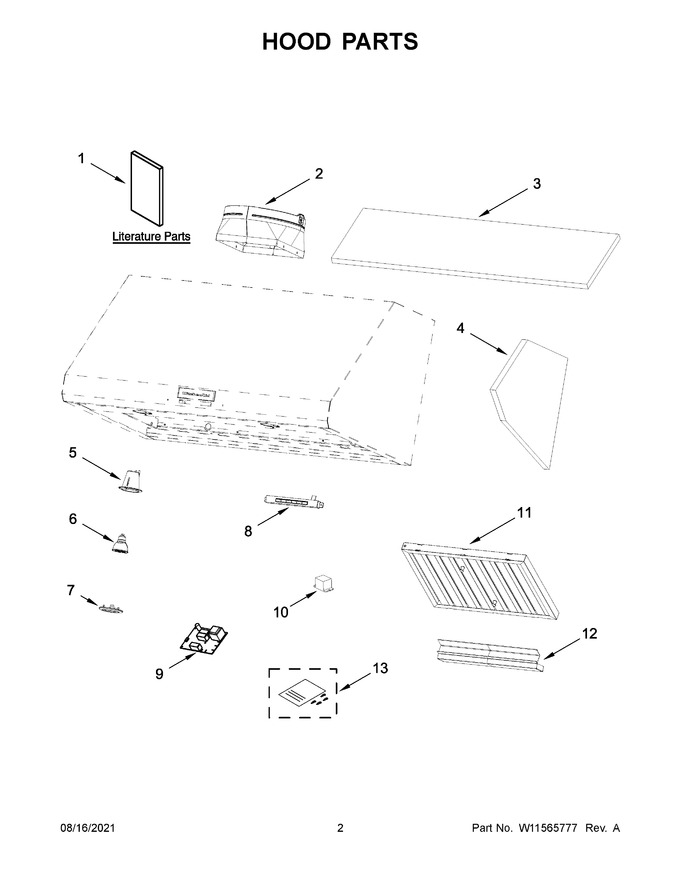

02 - Hood Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11423732 | Use And Care Guide |
|
- | |||||
| 2 | W11156393 | Assembly, Damper |
|
$ 214.28 | |||||
| 3 | W11565684 | Insulation (36" Model) (Replaces: W11565537) |
|
- | |||||
| 4 | W11688337 | Insulation, Side (Replaces: W11565542) |
|
- | |||||
| 5 | W11565681 | Socket, Lamp (Replaces: W11565528) |
|
$ 151.90 | |||||
| 6 | W11800238 | Lamp, Led (Replaces: W11388445) |
|
Immediately | $ 87.63 | ||||
| 7 | W10351924 | Bezel, Lamp |
|
$ 197.59 | |||||
| 8 | W11516463 | Control, Electronic (Replaces: W11565533) |
|
$ 366.38 | |||||
| 9 | W11700319 | Filter, Noise (Replaces: W11565531) |
|
$ 251.99 | |||||
| 10 | W11565687 | Relay (Replaces: W11565541) |
|
$ 100.30 | |||||
| 11 | W10351892 | Filter, Grease (36" Model Only) |
|
$ 269.64 | |||||
| 12 | W10294011 | Tray, Grease (36" Model Only) |
|
$ 319.82 | |||||
| 13 | W11565535 | Hardware, Installation |
|
- | |||||
| 11A | WPW10351929 | Filter, Grease (48" Model Only) (Replaces: W10351929) |
|
$ 209.91 | |||||
| 12A | W10294022 | Tray, Grease (48" Model Only) |
|
$ 353.88 | |||||
| 3A | W11565686 | Insulation (48" Model) (Replaces: W11565539) |
|
- |
