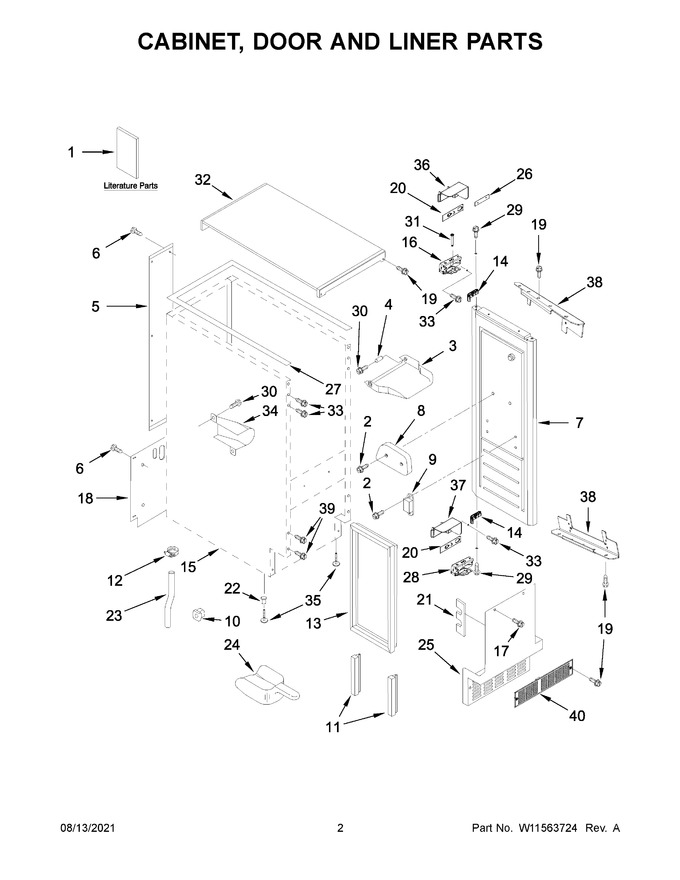

02 - Cabinet, Door And Liner Parts


03 - Evaporator, Grid, And Water Parts


04 - Pump Parts


05 - Control Panel Parts


06 - Unit Parts


07 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11317176		Use And Care		Appelez-nous	-
2	8534077		Screw (white)		Appelez-nous	-
3	W10734102		Bin, Door		Appelez-nous	-
4	2185678		Spacer				$ 11.03
5	2217394		Cover, Wiring		Appelez-nous	-
6	WP489442		Screw   (Replaces: 489442)			Immediately	$ 11.49
7	W11346787		Door (black)   (Replaces: W11263351)				$ 888.79
8	W11309649		Cam,door		Appelez-nous	-
9	W11223751		Assembly, Magnetic Catch   (Replaces: W10529250)				$ 62.40
10	W10136999		Nut, Push-in		Appelez-nous	-
11	W11165597		Gasket, Bottom		Appelez-nous	-
12	W10670799		Clamp, Hose			Immediately	$ 24.87
13	WP2217294		Gasket, Door   (Replaces: 2217294)				$ 285.98
14	W11309752		Sidecap, Top (black)		Appelez-nous	-
15	NP		Refrigerant Charge 5.75 Oz. (r-134a)		Appelez-nous	-
16	W11176752		Hinge Assembly, Top		Appelez-nous	-
17	W10531302		Screw (black)		Appelez-nous	-
18	W11267679		Cover, Unit		Appelez-nous	-
19	W11788665		Cover, Unit   (Replaces: 8534075)				$ 12.77
20	W11257325		Cover Cap, Hinge				$ 22.27
21	W11546717		Pad, Foam   (Replaces: W11505640)		Appelez-nous	-
22	3400240		Pad, Foam		Appelez-nous	-
23	W10825876		Tube, Bin To Pump   (Replaces: W10738312)				$ 74.89
24	W11420408		Tube, Drain   (Replaces: W10493422)				$ 28.61
25	W11197601		Grill, Front (black)				$ 120.60
26	W11301111		Cover Cap, Hinge				$ 15.07
27	W11624957		Panel, Top (black)   (Replaces: 2217293)		Appelez-nous	-
28	W11176753		Hinge Assembly, Bottom		Appelez-nous	-
29	348689		Nameplate				$ 78.07
30	3400886		Screw (stainless)				$ 5.65
31	W11212764		Pin, Limit		Appelez-nous	-
32	W11246183		Panel, Top (black)				$ 504.02
33	W10495264		Screw (white)				$ 10.80
34	2185927		Screw (black)				$ 89.07
35	8193716		Holder, Scoop   (Replaces: 3374849)			Immediately	$ 88.96
36	W11243472		Cover, Top Hinge (black)				$ 69.49
37	W11243473		Cover, Bottom Hinge (black)				$ 69.49
38	W11243907		Bracket, Custom Panel Top				$ 118.35
39	WP273556		Screw   (Replaces: 357640)			Immediately	$ 8.43
40	W11284404		Grill, Auxillary				$ 255.24
14A	W11309756		Sidecap, Bottom (black)		Appelez-nous	-
1A	W10761657		Tech Sheet		Appelez-nous	-
38A	W11223897		Bracket, Custom Panel Bottom				$ 127.46
