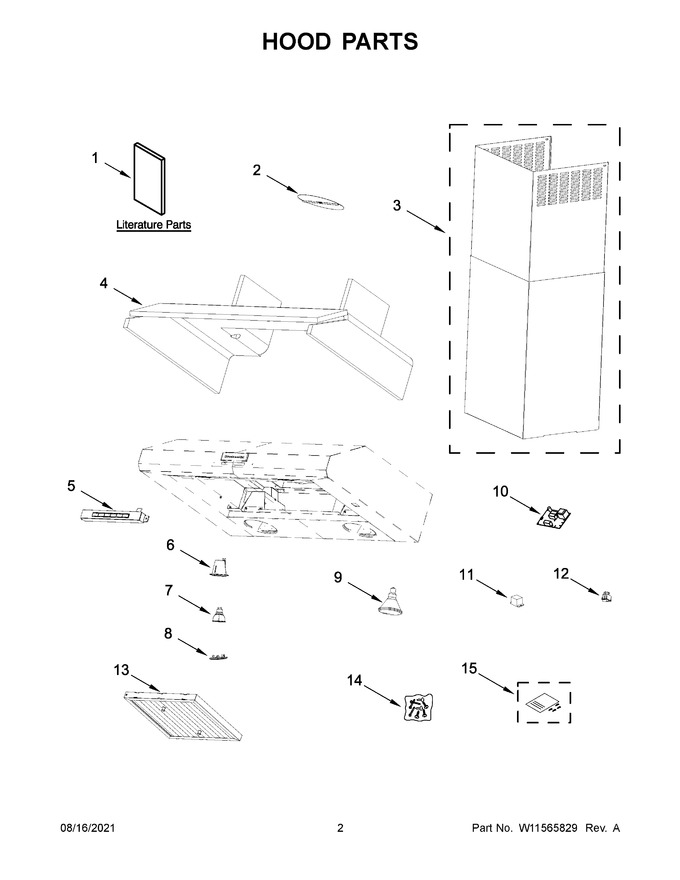

02 - Hood Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11423749 | Use And Care Guide |
|
- | |||||
| 2 | W11551389 | Damper |
|
Immediately | $ 124.87 | ||||
| 3 | W11417439 | Chimney, Upper And Lower (Replaces: W11388446) |
|
$ 395.81 | |||||
| 4 | W11565688 | Insulation (36" Model) (Replaces: W11565655) |
|
- | |||||
| 5 | W11516463 | Control, Electronic (Replaces: W11565533) |
|
$ 329.74 | |||||
| 6 | W11565681 | Socket, Lamp (Replaces: W11565528) |
|
$ 136.71 | |||||
| 7 | W11800238 | Lamp, Led (Replaces: W11388445) |
|
Immediately | $ 78.87 | ||||
| 8 | W10351924 | Bezel, Lamp |
|
$ 177.83 | |||||
| 9 | WPW10294005 | Lamp, Ir (Replaces: W10294005) |
|
Immediately | $ 267.04 | ||||
| 10 | W11700319 | Filter, Noise (Replaces: W11565531) |
|
$ 226.79 | |||||
| 11 | W11565687 | Relay (Replaces: W11565541) |
|
$ 90.27 | |||||
| 12 | W10351934 | Switch, (on/off) |
|
$ 66.28 | |||||
| 13 | W10351890 | Filter, Grease |
|
$ 106.13 | |||||
| 14 | W10663963 | Kit, Filter Installation |
|
- | |||||
| 15 | W11565654 | Hardware, Installation |
|
$ 211.17 | |||||
| 4A | W11565689 | Insulation (48" Model) (Replaces: W11565656) |
|
- |
