View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet

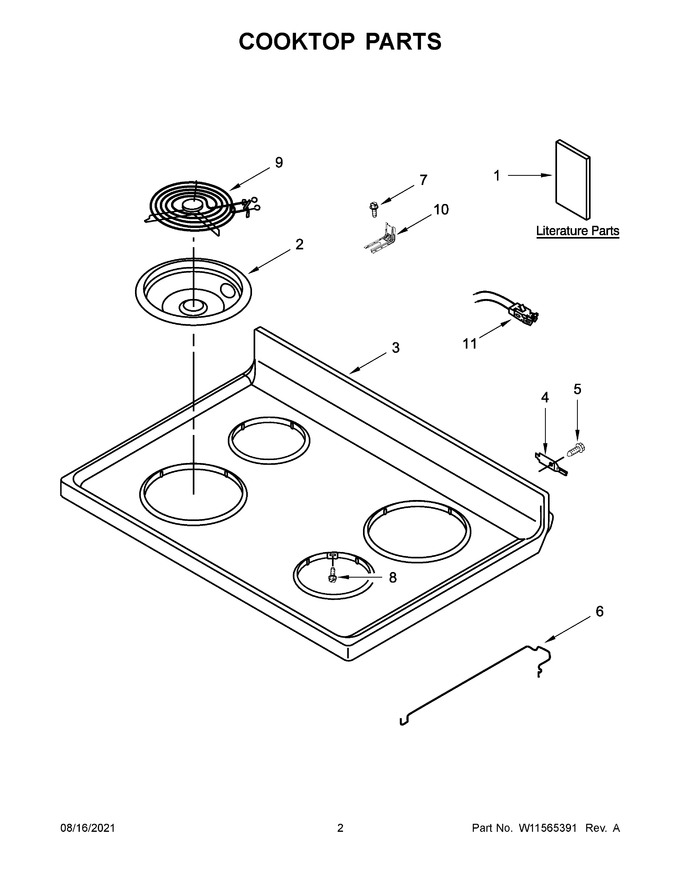

02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11509598 | User Instructions |
|
- | |||||
| 2 | WPW10196406 | Bowl, Drip (6") (right Front And Left Rear) (Replaces: W10196406) |
|
Immediately | $ 13.39 | ||||
| 3 | 8195534 | Cooktop (black) (Replaces: 3186233) |
|
$ 509.93 | |||||
| 4 | WP3195060 | Hinge, Cooktop (Replaces: 3195060) |
|
Immediately | $ 13.18 | ||||
| 5 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 6 | WP3195812 | Rod, Support (Replaces: 3195812) |
|
Immediately | $ 8.73 | ||||
| 7 | 7101P48560 | Screw, Anti-tip Kit |
|
- | |||||
| 8 | WP3196154 | Screw (Replaces: 3196154) |
|
$ 8.44 | |||||
| 9 | W11396792 | Element, Coil Heating (1500w) (right Front And Left Rear) (Replaces: W11364018) |
|
Immediately | $ 100.51 | ||||
| 10 | W11839019 | Bracket, Anti-tip (Replaces: W11379945) |
|
Immediately | $ 28.54 | ||||
| 11 | 814399 | Receptacle, Element |
|
Immediately | $ 43.19 | ||||
| 1A | W11401730 | Tech Sheet |
|
- | |||||
| 2A | WPW10196405 | Bowl, Drip (8") (left Front And Right Rear) (Replaces: W10196405) |
|
Immediately | $ 17.29 | ||||
| 3A | 8195532 | Cooktop (white) (Replaces: 3186231) |
|
$ 419.31 | |||||
| 9A | W11396790 | Element, Coil Heating (2400w) (left Front And Right Rear) (Replaces: W11364019) |
|
Immediately | $ 102.17 | ||||
| NI | W11396691 | Harness, Cooktop (Replaces: W11134595) |
|
$ 189.76 | |||||
| NI | W11750780 | Harness, Wire (main) (Replaces: W11452636) |
|
- | |||||
| NI | NP | Refrigerant Charge 5.75 Oz. (r-134a) |
|
- |
