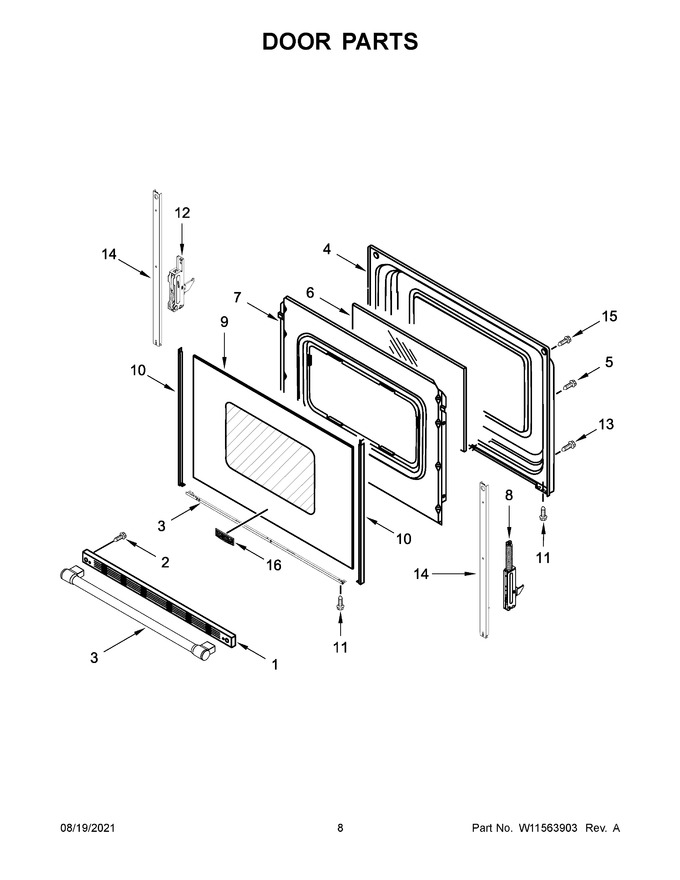

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11096161 | Trim, Vent (stainless) (Replaces: W11047800) |
|
Immediately | $ 161.27 | ||||
| 2 | W10831019 | Screw (Replaces: W10480830) |
|
Immediately | $ 8.27 | ||||
| 3 | W10912640 | Handle, Assembly (stainless) (Replaces: W10834521) |
|
$ 227.35 | |||||
| 4 | WP9761344 | Liner, Door (Replaces: 9761344) |
|
Immediately | $ 372.89 | ||||
| 5 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 8.74 | ||||
| 6 | W11399628 | Glass, Inner (Replaces: W11367326) |
|
$ 171.68 | |||||
| 7 | W11685635 | Retainer, Insulation (Replaces: 9761505) |
|
$ 188.29 | |||||
| 8 | WPW10299225 | Hinge, Active (Replaces: W10299225) |
|
Immediately | $ 52.34 | ||||
| 9 | W11250167 | Glass Assembly, Outer Door (stainless) (Replaces: W11167878) |
|
$ 500.29 | |||||
| 10 | W10761018 | Trim, Side (black (left)) (Replaces: W10746436) |
|
Immediately | $ 53.77 | ||||
| 11 | WP355214 | Screw (Replaces: W10327235) |
|
Immediately | $ 8.80 | ||||
| 12 | WPW10299227 | Hinge, Door (passive) (Replaces: W10299227) |
|
Immediately | $ 70.74 | ||||
| 13 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 8.26 | ||||
| 14 | W11502236 | Strap, Door (Replaces: W11379944) |
|
Immediately | $ 27.68 | ||||
| 15 | WPW10200660 | Screw (Replaces: W10200660) |
|
Immediately | $ 8.24 | ||||
| 16 | WPW10612925 | Badge (Replaces: W10612925) |
|
Immediately | $ 42.36 | ||||
| 10A | W10761014 | Trim, Side (black (right)) (Replaces: W10746435) |
|
Immediately | $ 72.96 |
