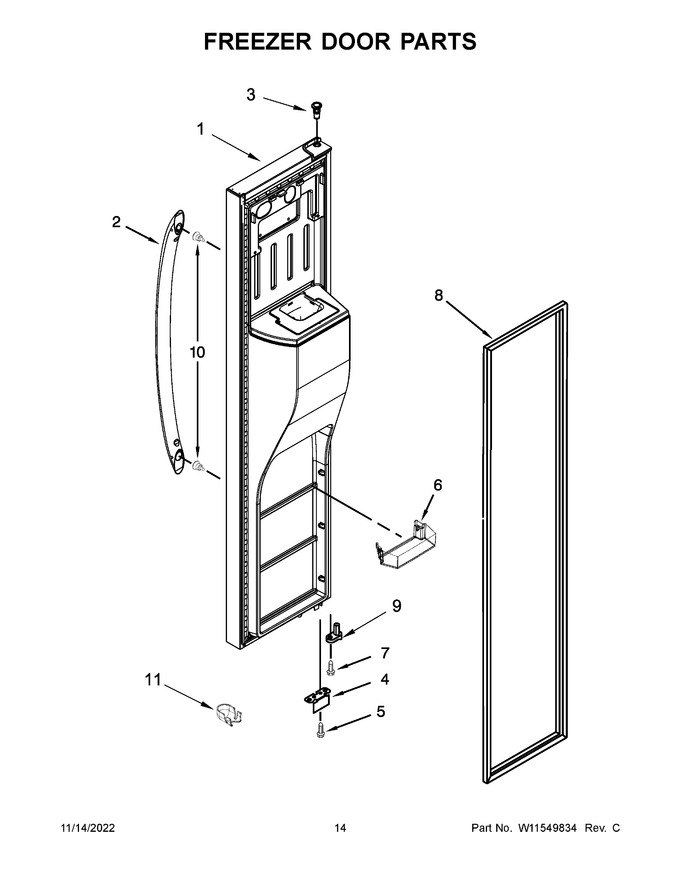

08 - Freezer Door Parts


09 - Dispenser Parts


10 - Air Flow Parts


11 - Unit Parts


12 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11551453		Door, Freezer (includes Door Gasket) (white)   (Replaces: W11527569)		Appelez-nous	-
2	W11432251		Handle (white)   (Replaces: W11289637)				$ 189.72
3	WP2182181		Thimble   (Replaces: 2200087)				$ 8.15
4	W11557261		Bracket, Door Stop   (Replaces: W11481757)			Immediately	$ 18.67
5	WPW10296816		Screw   (Replaces: W10296816)				$ 8.06
6	W11212391		Trivet   (Replaces: W11091189)		Appelez-nous	-
7	WPW10296804		Screw   (Replaces: W10296804)				$ 11.39
8	2159075		Gasket, Door (beige)   (Replaces: W10911412)			Immediately	$ 333.00
9	W11661926		Thimble, Cam   (Replaces: W10900532)				$ 14.02
10	WPW10661886		Screw   (Replaces: W10460893)			Immediately	$ 12.88
11	W11566769		Cover, Wire   (Replaces: W11427367)		Appelez-nous	-
1A	W11551455		Door, Freezer (includes Door Gasket) (black)   (Replaces: W11527571)		Appelez-nous	-
1B	W11551456		Door, Freezer (includes Door Gasket) (black Stainless)   (Replaces: W11467302)				$ 1,184.79
1C	W11551458		Door, Freezer (includes Door Gasket) (stainless)   (Replaces: W11467303)				$ 1,220.17
2A	W11450221		Handle (black)   (Replaces: W11289638)				$ 189.65
2B	W11450223		Handle (black Stainless)   (Replaces: W11289639)			Immediately	$ 188.98
2C	W11542651		Handle (stainless)   (Replaces: W11289640)			Immediately	$ 140.99
8A	2159083		Gasket, Door (black)   (Replaces: W10911422)				$ 251.49
8B	WPW10136734		Gasket, Door (grey)   (Replaces: W10911389)				$ 335.39
