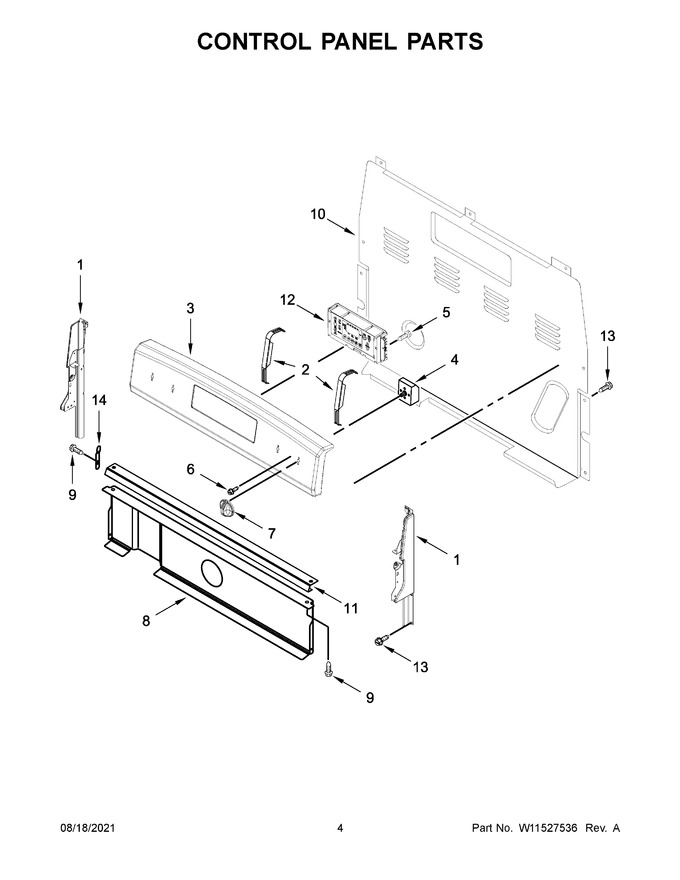

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11219664		Endcap (black (left))   (Replaces: W11130372)				$ 153.83
2	W11230932		Bracket, Control   (Replaces: W10695491)			Immediately	$ 84.81
3	W11550179		Panel, Control (black)   (Replaces: W11027440)				$ 285.34
4	WP3148952		Switch, Infinite (yellow) (right Front And Left Rear)   (Replaces: 3148952)			Immediately	$ 69.51
5	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
6	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 7.55
7	W11158169		Knob (black)   (Replaces: W11022718)			Immediately	$ 80.02
8	W10134247		Shield, Heat			Immediately	$ 358.82
9	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 7.55
10	WP8272473		Cover, Upper Rear   (Replaces: 8272473)				$ 219.04
11	W10525121		Bracket, Console Mounting				$ 98.85
12	W11553209		Control, Electronic (lcx) (black)   (Replaces: W11428720)				$ 366.64
13	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
14	3196200		Clip, Spring				$ 10.45
12A	W11528353		Control, Electronic (lcx) (white)   (Replaces: W11428719)			Immediately	$ 350.19
1A	W11219665		Endcap (black (right))   (Replaces: W11130379)				$ 45.17
1B	W11219365		Endcap (white (left))   (Replaces: W11130371)				$ 42.45
1C	W11219370		Endcap (white (right))   (Replaces: W11130378)				$ 60.83
3A	W11323155		Panel, Control (white)   (Replaces: W11027441)			Immediately	$ 370.80
4A	WP3149400		Switch, Infinite (orange) (left Front And Right Rear)   (Replaces: 3148954)			Immediately	$ 90.51
7A	W11158173		Knob (white)   (Replaces: W11022720)			Immediately	$ 21.54

    View Diagram in Separate Window       Print Part List
