01 - Cover Sheet
02 - Cooktop Parts

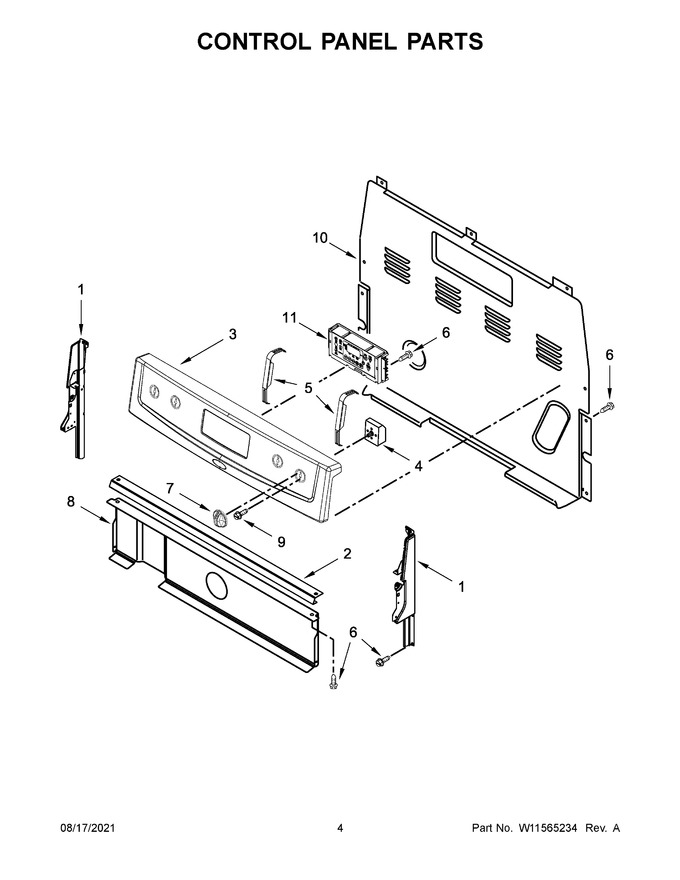

03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219664 | Endcap (black (left)) (Replaces: W11130372) |
|
$ 153.83 | |||||
| 2 | W10525121 | Bracket, Console Mounting |
|
$ 98.85 | |||||
| 3 | W11247313 | Panel, Console (stainless) (Replaces: W11157018) |
|
Immediately | $ 363.32 | ||||
| 4 | WP3148952 | Switch, Infinite (yellow) (right Front And Left Rear) (Replaces: 3148952) |
|
Immediately | $ 69.51 | ||||
| 5 | W11230932 | Bracket, Control (Replaces: W10695491) |
|
Immediately | $ 84.81 | ||||
| 6 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 7 | W11409244 | Knobs (stainless) (Replaces: W10844802) |
|
Immediately | $ 73.41 | ||||
| 8 | W10134247 | Shield, Heat |
|
Immediately | $ 358.82 | ||||
| 9 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 7.55 | ||||
| 10 | WP8272473 | Cover, Upper Rear (Replaces: 8272473) |
|
$ 219.04 | |||||
| 11 | W11747105 | Control (lcc95) (black) (Replaces: W11511568) |
|
Immediately | $ 446.69 | ||||
| 1A | W11219665 | Endcap (black (right)) (Replaces: W11130379) |
|
$ 45.17 | |||||
| 4A | 5500-287 | Switch, Infinite (green) (right Rear) (Replaces: 3148953) |
|
Immediately | $ 52.39 |
