01 - Cover Sheet

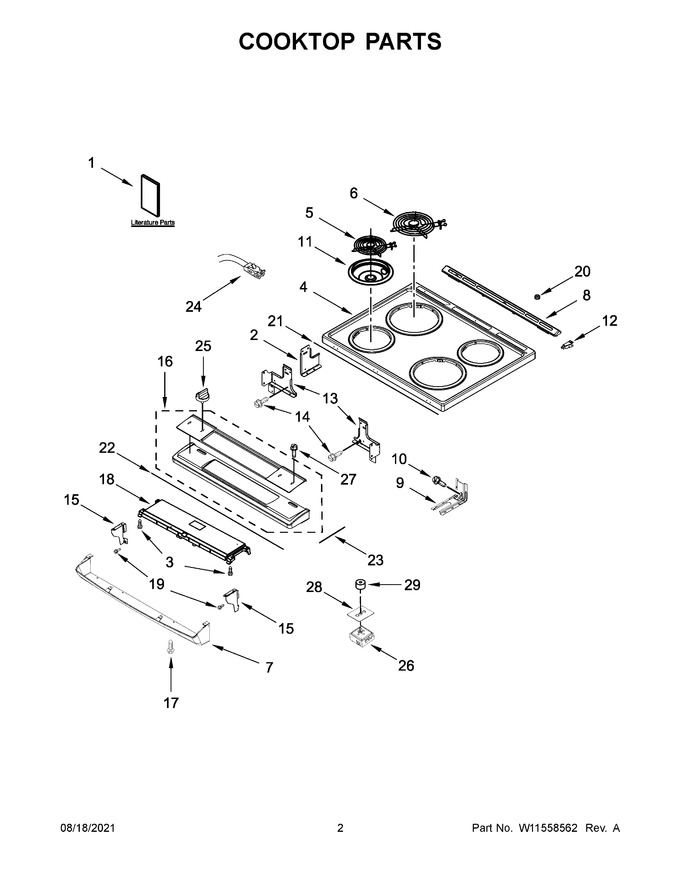

02 - Cooktop Parts
03 - Chassis Parts
04 - Door Parts
05 - Drawer Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11509605 | Owners Manual |
|
- | |||||
| 2 | W10814305 | Bracket, Console (center) |
|
- | |||||
| 3 | W11245710 | Screw (Replaces: 9780274) |
|
Immediately | $ 14.75 | ||||
| 4 | W10795408 | Cooktop (black) (Replaces: W10536327) |
|
- | |||||
| 5 | W11396792 | Element, Coil Heating (1500w) (right Front And Left Rear) (Replaces: W11364018) |
|
Immediately | $ 100.51 | ||||
| 6 | W11396790 | Element, Coil Heating (2400w) (left Front And Right Rear) (Replaces: W11364019) |
|
Immediately | $ 102.17 | ||||
| 7 | W10894124 | Console, Lower Panel (black) (Replaces: W10816943) |
|
$ 560.36 | |||||
| 8 | W11240519 | Vent, Trim Top (black) (Replaces: W10636528) |
|
$ 157.19 | |||||
| 9 | W11502257 | Bracket, Anti-tip (Replaces: W11379947) |
|
Immediately | $ 23.03 | ||||
| 10 | 7101P48560 | Screw, Anti-tip Kit |
|
- | |||||
| 11 | WPW10196405 | Bowl, Drip (8") (left Front And Right Rear) (Replaces: W10196405) |
|
Immediately | $ 17.29 | ||||
| 12 | W10162253 | Brace, Corner (left) |
|
$ 74.13 | |||||
| 13 | W10814303 | Support, Cooktop (left) |
|
- | |||||
| 14 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 15 | W10547960 | Bracket, Console (left) |
|
$ 23.22 | |||||
| 16 | W11542183 | Assembly, Console (stainless) (Replaces: W11512193) |
|
- | |||||
| 17 | W10516115 | Screw |
|
$ 14.52 | |||||
| 18 | W11542161 | Electronic, Control (lcx) (Replaces: W11519912) |
|
$ 368.76 | |||||
| 19 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 20 | W11690600 | Bumper (Replaces: W10854253) |
|
Immediately | $ 14.91 | ||||
| 21 | W10802441 | Gasket, Console/ Cooktop (Replaces: W10612719) |
|
Immediately | $ 22.73 | ||||
| 22 | W10802457 | Gasket, Console (Replaces: W10689101) |
|
$ 21.33 | |||||
| 23 | W11744482 | Gasket, Console Short (Replaces: W10689102) |
|
$ 22.92 | |||||
| 24 | 814399 | Receptacle, Element |
|
Immediately | $ 43.19 | ||||
| 25 | W11517331 | Knob (stainless) (Replaces: W10850027) |
|
Immediately | $ 66.19 | ||||
| 26 | W11661906 | Switch, Infinite (left Front And Right Rear) (Replaces: W10843843) |
|
Immediately | $ 19.59 | ||||
| 27 | W10674068 | Screw |
|
$ 24.39 | |||||
| 28 | 7201P07760 | Gasket, Infinite Switch |
|
- | |||||
| 29 | W10702912 | Gasket, Switch Stem |
|
$ 29.82 | |||||
| 11A | WPW10196406 | Bowl, Drip (6") (right Front And Left Rear) (Replaces: W10196406) |
|
Immediately | $ 13.39 | ||||
| 12A | W10162252 | Brace, Corner (right) |
|
$ 78.59 | |||||
| 13A | W10814304 | Support, Cooktop (right) |
|
- | |||||
| 15A | W10547961 | Bracket, Console (right) |
|
$ 23.22 | |||||
| 1A | W11508915 | Quick Start Guide |
|
- | |||||
| 1B | W11508780 | Tech Sheet |
|
- | |||||
| 26A | W11162115 | Switch, Infinite (left Rear And Right Front) (Replaces: W10600015) |
|
Immediately | $ 110.10 | ||||
| NI | 7111P01760 | Clamp, Wire |
|
- | |||||
| NI | W10664316 | Clip, Harness (cooktop) |
|
$ 20.97 | |||||
| NI | W10800451 | Harness, Console |
|
- | |||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 20.53 | |||||
| NI | W11190435 | Harness, Cooktop |
|
$ 220.95 | |||||
| NI | W11568999 | Harness, Main (Replaces: W11134665) |
|
- | |||||
| NI | NP | Refrigerant Charge 5.75 Oz. (r-134a) |
|
- |
