SELECT A DIAGRAM

01 - Cover Sheet


02 - Color Variation Parts

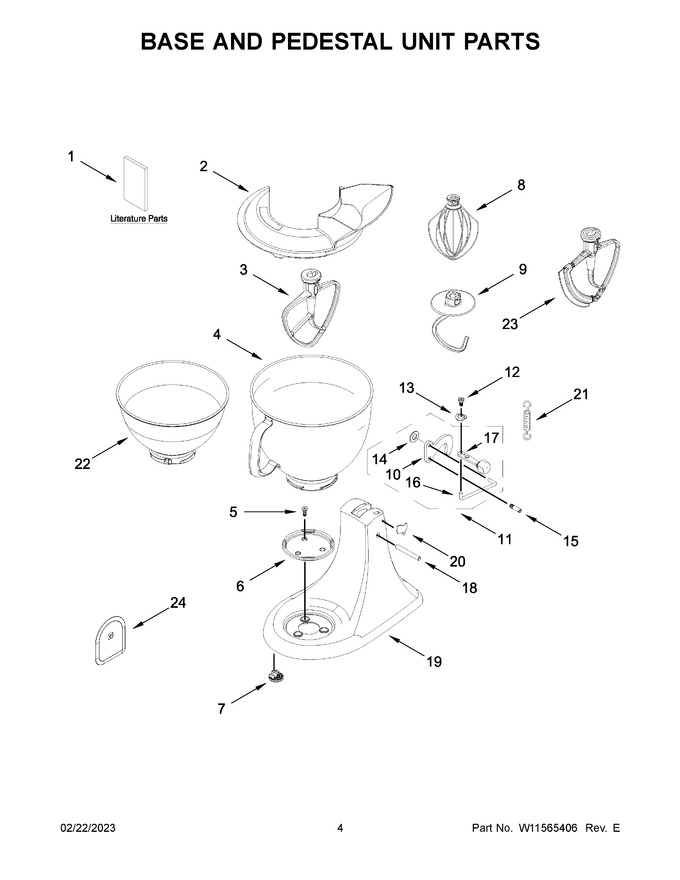

03 - Base And Pedestal Unit Parts


04 - Case, Gearing And Planetary Unit Parts


05 - Motor And Control Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11556021		Use & Care Guide		Appelez-nous	-
2	W11573560		Shield, Pouring   (Replaces: W11385618)				$ 40.76
3	W11748394		Beater, Pastry (silent Silver)   (Replaces: W11555366)		Appelez-nous	-
4	W11305077		Bowl, 5 Qt.   (Replaces: W11203341)		Appelez-nous	-
5	W11544572		Screw   (Replaces: 3400020)				$ 8.41
6	WPW10191926		Cap, Bowl Screw   (Replaces: W10191926)			Immediately	$ 19.03
7	WP9709707		Foot   (Replaces: 9709707)			Immediately	$ 4.42
8	WP9704329		Whip, Wire   (Replaces: 9704329)			Immediately	$ 29.90
9	W11606668		Hook, Dough (silent Silver)   (Replaces: W11555367)		Appelez-nous	-
10	W11246352		Latch   (Replaces: 9709055)				$ 8.57
11	W11416057		Chrome   (Replaces: W10471368)		Appelez-nous	-
12	6011-006971		Screw   (Replaces: 110679)			Immediately	$ 3.59
13	WP116241		Washer, Spring   (Replaces: 116241)				$ 5.19
14	W11218705		Washer   (Replaces: 8533912)				$ 4.55
15	W10802060		Screw   (Replaces: W10572158)				$ 5.21
16	W11232016		Link, Latch   (Replaces: 24450)				$ 7.83
17	W11676543		Chrome   (Replaces: W10471367)		Appelez-nous	-
18	WP16910		Pin, Hinge   (Replaces: 16910)			Immediately	$ 4.87
19	NP		Cabinet (not A Servicable Part)		Appelez-nous	-
20	WP3184264		Head Lock (black)   (Replaces: 3184264)				$ 8.20
21	W11188450		Spring, Lock Lever   (Replaces: W10509949)		Appelez-nous	-
22	W11681930		Bowl, 3 Quart   (Replaces: W10713675)		Appelez-nous	-
23	W11606664		Beater, Wiping (silent Silver)   (Replaces: W11555365)		Appelez-nous	-
24	W11623644		Scraper, Pot (nylon)   (Replaces: W11550306)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
