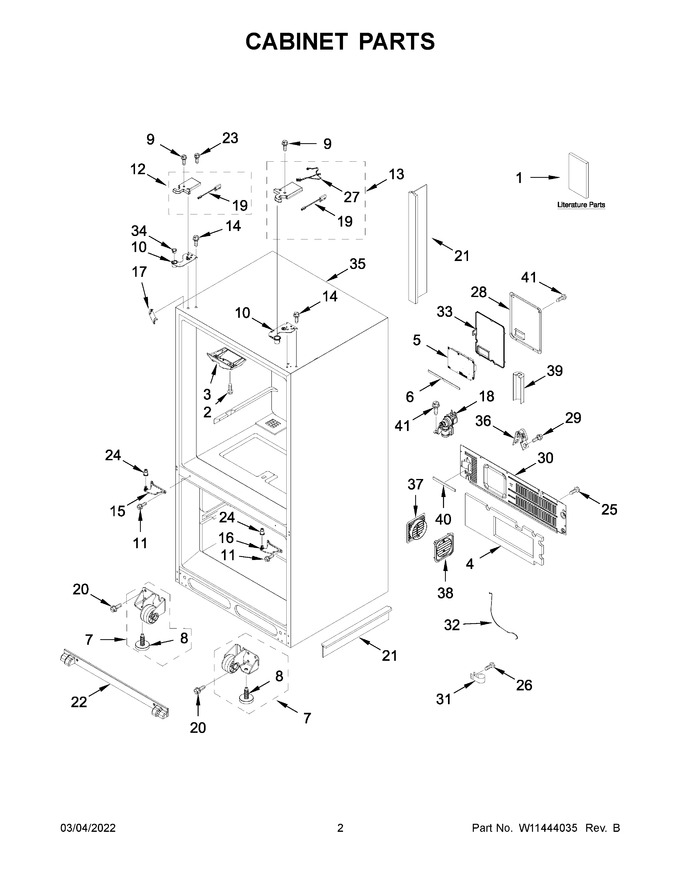

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11097245 | Tech Sheet (english) |
|
- | |||||
| 2 | W10854958 | Screw (Replaces: 12990302) |
|
$ 7.90 | |||||
| 3 | W10840310 | Block, Pivot |
|
- | |||||
| 4 | W11820443 | Pad, Sound (Replaces: W10838044) |
|
$ 103.71 | |||||
| 5 | W11533212 | Control, Electronic (includes Dispenser User Interface) |
|
$ 513.05 | |||||
| 6 | W10415341 | Gasket, Hv Box |
|
$ 37.00 | |||||
| 7 | W11820446 | Assembly, Roller (left Hand) (Replaces: W11084045) |
|
Immediately | $ 96.12 | ||||
| 8 | W10846099 | Brake, Roller |
|
$ 22.31 | |||||
| 9 | WP98165 | Screw (Replaces: 12990521) |
|
$ 8.57 | |||||
| 10 | W11032616 | Hinge, Top (left Hand) |
|
$ 76.44 | |||||
| 11 | W11573362 | Screw (stainless) (Replaces: W10673840) |
|
$ 14.72 | |||||
| 12 | W11225850 | Cover, Top Hinge Left Hand (includes Foil) (black) (Replaces: W10868791) |
|
$ 167.45 | |||||
| 13 | W11251738 | Cover, Top Hinge Right Hand (black) (Replaces: W10895446) |
|
$ 179.82 | |||||
| 14 | W11126052 | Screw (Replaces: W10731474) |
|
Immediately | $ 14.73 | ||||
| 15 | W10691674 | Hinge, Center Left Hand (black) |
|
$ 90.18 | |||||
| 16 | W10691700 | Hinge, Center Right Hand (black) |
|
$ 90.01 | |||||
| 17 | 67003485 | Cover, Corner (black) (Replaces: 12587703B) |
|
Immediately | $ 22.14 | ||||
| 18 | W11312191 | Valve, Water (Replaces: W11095287) |
|
Immediately | $ 188.31 | ||||
| 19 | W11221357 | Switch, Reed (Replaces: W11105994) |
|
$ 61.33 | |||||
| 20 | 67006564 | Screw (Replaces: W10709365) |
|
Immediately | $ 8.15 | ||||
| 21 | W10878918 | Divider, Air (rear) |
|
$ 52.08 | |||||
| 22 | W10887785 | Grille, Toe (black) (Replaces: W10821308) |
|
$ 128.51 | |||||
| 23 | W11214483 | Screw (Replaces: 12992601) |
|
Immediately | $ 14.72 | ||||
| 24 | W11223833 | Bushing (Replaces: W10831587) |
|
Immediately | $ 15.83 | ||||
| 25 | WPW10141645 | Screw (Replaces: W10141645) |
|
$ 8.05 | |||||
| 26 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 7.30 | ||||
| 27 | W10858468 | Assembly, Jumper Wire |
|
$ 136.12 | |||||
| 28 | W10754144 | Cover, Control Box |
|
$ 86.16 | |||||
| 29 | WPW10141645 | Screw (Replaces: W10141645) |
|
$ 8.05 | |||||
| 30 | W10669259 | Cover, Unit |
|
- | |||||
| 31 | W11456069 | Clamp, Tube (Replaces: M0108107) |
|
Immediately | $ 22.40 | ||||
| 32 | W11518273 | Tube, Icemaker Water (includes Seal) |
|
$ 92.99 | |||||
| 33 | W10768379 | Lid, Hv |
|
$ 83.60 | |||||
| 34 | W10705239 | Retainer, Door |
|
Immediately | $ 51.64 | ||||
| 35 | NP | Cabinet (not A Servicable Part) |
|
- | |||||
| 36 | 549193 | Clamp, Power Cord |
|
$ 14.06 | |||||
| 37 | W10835554 | Assembly, Outer Air Tunnel (includes Gasket) (black) |
|
- | |||||
| 38 | W10835557 | Assembly, Inner Air Tunnel (includes Gasket) (black) |
|
- | |||||
| 39 | W10208592 | Cover, Valve |
|
- | |||||
| 40 | W11312190 | Gasket (Replaces: W11243631) |
|
- | |||||
| 41 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 10A | W11032620 | Hinge, Top (right Hand) |
|
$ 73.86 | |||||
| 1A | W11097246 | Tech Sheet (french) |
|
- | |||||
| 1B | W11307651 | Tech Sheet, Use And Care Guide |
|
- | |||||
| 1C | W11112987 | Tech Sheet, Energy Guide |
|
- | |||||
| 21A | W10878920 | Divider, Air (bottom) |
|
$ 49.83 | |||||
| 32A | W11391304 | Tube, Dispenser Water (includes Seal) |
|
$ 78.54 | |||||
| 7A | W11763410 | Assembly, Roller (right Hand) (Replaces: W11084046) |
|
$ 38.66 |
