01 - Cover Sheet

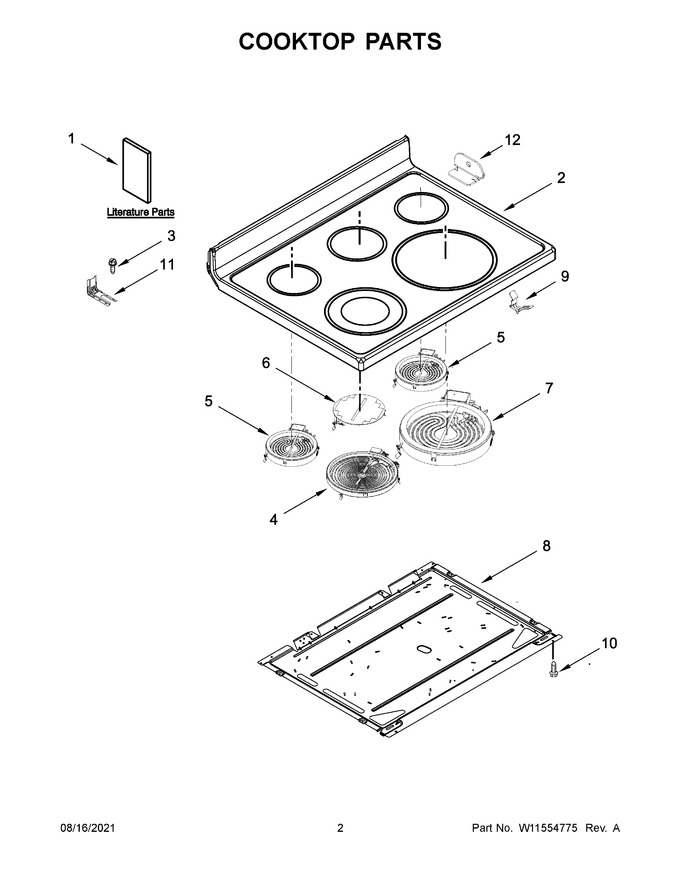

02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11509609 | Use And Care Guide |
|
- | |||||
| 2 | W10691698 | Cooktop (black) (Replaces: W10655916) |
|
Immediately | $ 590.58 | ||||
| 3 | 7101P48560 | Screw, Anti-tip Kit |
|
- | |||||
| 4 | WPW10535150 | Element (3000w, 1000/2000w) (left Front) (Replaces: W10535150) |
|
Immediately | $ 251.12 | ||||
| 5 | W11171119 | Element (1200w) (left Rear, Right Rear) (Replaces: W10248261) |
|
Immediately | $ 182.23 | ||||
| 6 | W11041453 | Element, Warm Zone (center Rear) (Replaces: W10799048) |
|
$ 132.95 | |||||
| 7 | WPW10251108 | Element (3200w) (right Front) (Replaces: W10251108) |
|
Immediately | $ 223.66 | ||||
| 8 | W11728329 | Pan, Radiant Element (Replaces: W10691223) |
|
Immediately | $ 143.49 | ||||
| 9 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 10.40 | ||||
| 10 | WP355214 | Screw (Replaces: W10327235) |
|
Immediately | $ 8.80 | ||||
| 11 | W11839019 | Bracket, Anti-tip (Replaces: W11379945) |
|
Immediately | $ 28.54 | ||||
| 12 | W10607641 | Bracket, Cooktop (left) |
|
$ 33.52 | |||||
| 12A | W10607642 | Bracket, Cooktop (right) |
|
- | |||||
| 1A | W11503320 | Tech Sheet, (english) |
|
- | |||||
| 1B | W11435575 | Quick Start Guide |
|
- | |||||
| NI | W11212183 | Harness, Sensor |
|
$ 235.64 | |||||
| NI | W11454299 | Harness, Main |
|
- | |||||
| NI | W11134592 | Harness, Warm Zone |
|
$ 117.26 | |||||
| NI | NP | Refrigerant Charge 5.75 Oz. (r-134a) |
|
- | |||||
| NI | W11134596 | Harness, Cooktop (left) |
|
Immediately | $ 229.76 | ||||
| NI | W11134550 | Harness, Cooktop (right) |
|
$ 228.90 |
