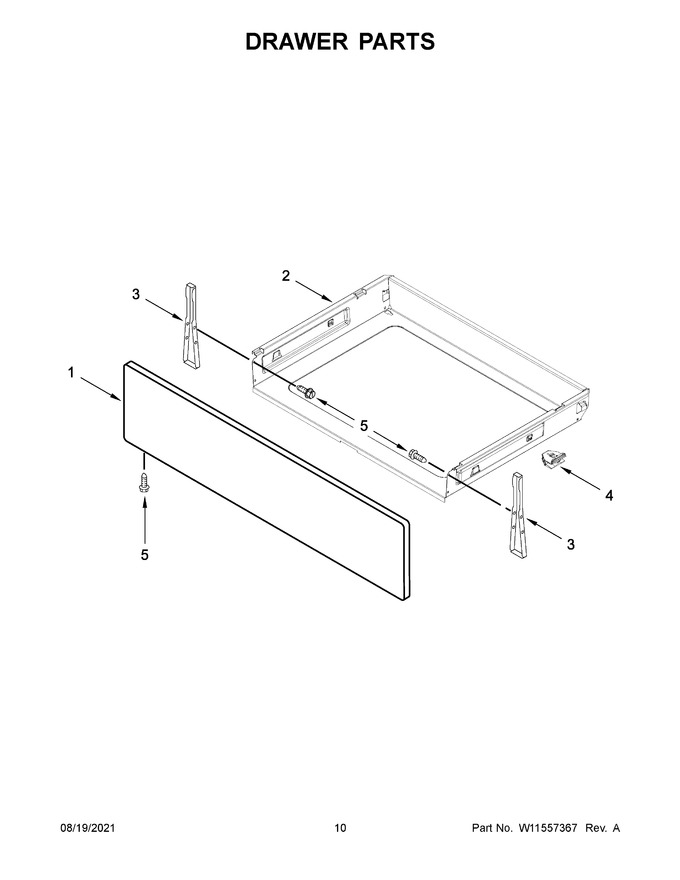

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11252164 | Panel, Drawer Front (stainless) (Replaces: W11190210) |
|
$ 218.31 | |||||
| 2 | W10813962 | Drawer, Storage (Replaces: W10688022) |
|
Immediately | $ 138.15 | ||||
| 3 | W11759228 | Bracket, Mounting (Replaces: W10462909) |
|
$ 28.27 | |||||
| 4 | W10807828 | Glide, Drawer Rear (Replaces: W10674708) |
|
Immediately | $ 19.47 | ||||
| 5 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 1A | W11784072 | Panel, Drawer Front (black Stainless) (Replaces: W11450003) |
|
$ 161.49 |
