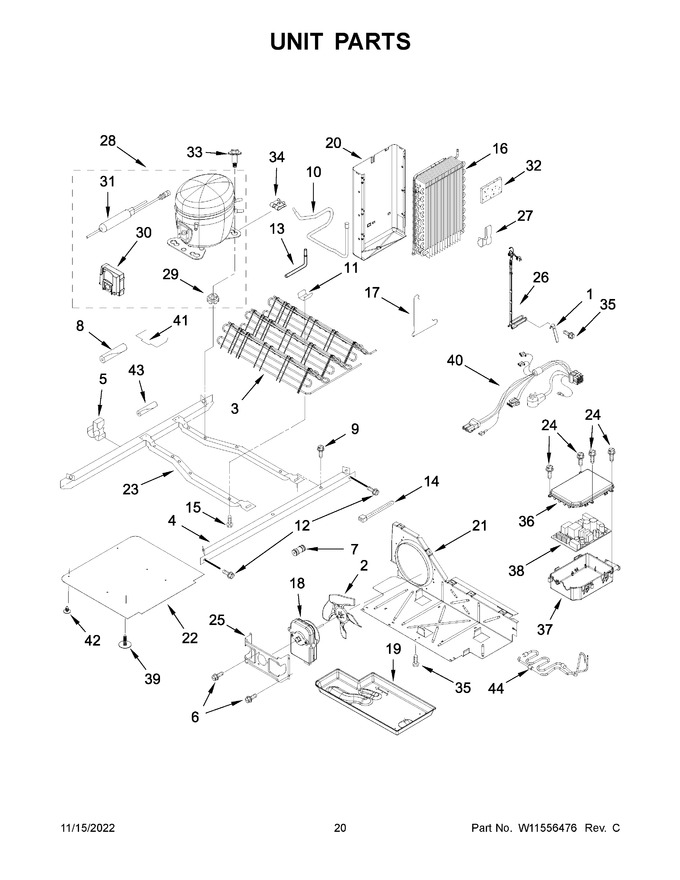

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11611126 | Heat Probe (Replaces: W11399989) |
|
$ 22.06 | |||||
| 2 | W11458267 | Blade, Fan (Replaces: 2225834) |
|
Immediately | $ 23.99 | ||||
| 3 | W11632924 | Assembly, Condenser (also Order The Following Lokring Parts) (Replaces: W10904626) |
|
Immediately | $ 226.24 | ||||
| 4 | W10900442 | Rail, Unit Mounting |
|
- | |||||
| 5 | W10812039 | Clip, Wire (Replaces: 2326941) |
|
$ 10.59 | |||||
| 6 | WP8533993 | Screw (Replaces: 8533993) |
|
$ 10.57 | |||||
| 7 | WP2300868 | Connector, Union (Replaces: W10271541) |
|
Immediately | $ 29.05 | ||||
| 8 | W11751592 | Sleeve (Replaces: 2161302) |
|
Immediately | $ 20.30 | ||||
| 9 | WP489427 | Screw (Replaces: 489427) |
|
$ 7.47 | |||||
| 10 | W11547179 | Tube, Suction (Replaces: W11505005) |
|
- | |||||
| 11 | W10683556 | Clip, Condenser (Replaces: 2311725) |
|
$ 18.46 | |||||
| 12 | 489340 | Bolt |
|
- | |||||
| 13 | W11558176 | Tube, Process (Replaces: W11509632) |
|
- | |||||
| 14 | WPW10339879 | Tie, Wire (Replaces: 2263990) |
|
$ 7.90 | |||||
| 15 | W11544659 | Screw (Replaces: 8281232) |
|
$ 13.67 | |||||
| 16 | W11546692 | Evaporator (also Order The Following Lokring Parts) (Replaces: W11357918) |
|
$ 251.32 | |||||
| 17 | 2161324 | Clip, Defrost Heater |
|
- | |||||
| 18 | W11578915 | Motor, Condenser Fan (Replaces: W10522629) |
|
Immediately | $ 71.42 | ||||
| 19 | W11164129 | Tray, Evaporator (Replaces: W10897557) |
|
$ 150.27 | |||||
| 20 | W11400740 | Assembly, Heat Shield And Drain Pan |
|
- | |||||
| 21 | W10896764 | Baffle, Air (Replaces: W10897567) |
|
$ 96.38 | |||||
| 22 | W10897560 | Assembly, Unit Cover (bottom) |
|
$ 96.73 | |||||
| 23 | W10900446 | Frame, Unit Mounting (includes Unit Mounting Rail) |
|
- | |||||
| 24 | WPW10171469 | Screw (Replaces: 8533859) |
|
Immediately | $ 11.06 | ||||
| 25 | WP2181929 | Bracket, Fan Mounting (Replaces: 2181929) |
|
$ 12.31 | |||||
| 26 | W11650661 | Heater (Replaces: W11573117) |
|
$ 202.03 | |||||
| 27 | W11623163 | Clip (Replaces: 2304287) |
|
- | |||||
| 28 | W11557671 | Compressor (also Order The Following Lokring Parts) (Replaces: W11332037) |
|
Immediately | $ 693.46 | ||||
| 29 | WPW10169124 | Grommet (Replaces: 10835903) |
|
Immediately | $ 7.19 | ||||
| 30 | W11546982 | Inverter (Replaces: W11404943) |
|
- | |||||
| 31 | W11109499 | Drier (service Drier Without Dye) (also Order The Following Lokring Parts) (Replaces: W10805035) |
|
Immediately | $ 39.12 | ||||
| 32 | W11553819 | Insulation, Sound Deadening (Replaces: 2169104) |
|
Immediately | $ 14.07 | ||||
| 33 | W11417341 | Screw (Replaces: W10476309) |
|
$ 13.40 | |||||
| 34 | W10697017 | Clip, Retaining |
|
- | |||||
| 35 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 7.83 | ||||
| 36 | W10313215 | Cover, Electronic Control |
|
$ 74.28 | |||||
| 37 | 2323186 | Box, Control |
|
$ 102.36 | |||||
| 38 | W11742382 | Control, Electronic (Replaces: W11321508) |
|
Immediately | $ 296.30 | ||||
| 39 | 489396 | Clip |
|
$ 10.72 | |||||
| 40 | W11609465 | Assembly, Wire Harness (Replaces: W11383262) |
|
$ 215.13 | |||||
| 41 | WPW10339879 | Tie, Wire (Replaces: 2155774) |
|
$ 7.90 | |||||
| 42 | W10000080 | Retainer, Push-in |
|
- | |||||
| 43 | 2264838 | Sleeve |
|
$ 87.89 | |||||
| 44 | W11678305 | Assembly, Precooler Formed (Replaces: W11189542) |
|
$ 63.46 | |||||
| 16A | W11504448 | 5/1.8 Nr Al 00 (capillary Tube To Evaporator) |
|
Immediately | $ 46.27 | ||||
| 16B | W11506620 | 8 Nk Al 00 (suction Line To Evaporator) |
|
Immediately | $ 30.57 | ||||
| 28A | W11504415 | 8.5/8 Nr Ms 00 (suction Tube To Compressor) |
|
Immediately | $ 24.66 | ||||
| 28B | W11504431 | 7/5 Nr Ms 00 (high Pressure Side To Compressor) |
|
Immediately | $ 25.84 | ||||
| 28C | W11506619 | 8 Nk Ms 00 (suction Line To Evaporator) |
|
Immediately | $ 24.65 | ||||
| 31A | W11504433 | 6/4 Nr Ms 00 (heat Loop To Drier) |
|
Immediately | $ 28.00 | ||||
| 31B | W11504447 | 5/1.8 Nr Ms 00 (capillary Tube To Drier) |
|
Immediately | $ 41.81 | ||||
| 3A | W11506623 | 5 Nk Ms 00 (high Side To Condenser) |
|
Immediately | $ 20.95 | ||||
| 3B | W11504445 | 5/4 Nr Ms 00 (suction Line To Condenser) |
|
Immediately | $ 27.54 | ||||
| NI | NP | Tub Assembly (not Serviced) |
|
- |
