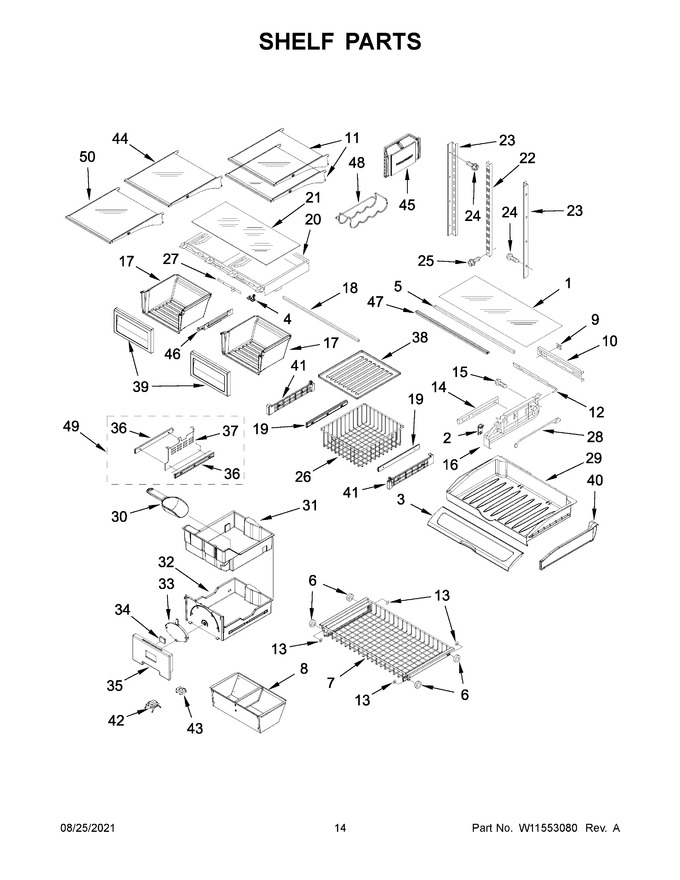

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP67002332		Glass, Pantry   (Replaces: 12204815)			Immediately	$ 251.30
2	W11498983		Knob, Temperature Control   (Replaces: 12655204)				$ 30.64
3	WP12656822		Lid, Pantry Drawer   (Replaces: 12656822)			Immediately	$ 101.76
4	W10119222		Knob, Humidity Control				$ 14.09
5	WP12227305WD		Brace, Pantry   (Replaces: 12227305WH)				$ 108.36
6	W11214482		Roller, Basket   (Replaces: 2204542)				$ 101.03
7	WPW10119854		Basket, Middle   (Replaces: W10119854)				$ 291.19
8	W10144706		Assembly, Bin				$ 218.02
9	67002329		Gasket, Pantry   (Replaces: 12656901)				$ 22.09
10	12656202		Housing, Control				$ 148.84
11	W11032133		Assembly, Shelf   (Replaces: W10905889)				$ 258.39
12	WP67003793		Slide, Temperature Control   (Replaces: 12655402)			Immediately	$ 78.49
13	2207415		Nut, Hex				$ 14.04
14	WPW10132653		Glide, Pantry (left Hand)   (Replaces: W10132653)				$ 330.28
15	WP98165		Screw   (Replaces: 12990504)				$ 8.57
16	WPW10122078		Track, Pantry (left Hand)   (Replaces: W10122078)			Immediately	$ 62.24
17	W10119219		Pan, Crisper			Immediately	$ 157.84
18	W10490807		Brace, Crisper Frame				$ 101.42
19	WPW10170836		Glide, Upper Basket   (Replaces: W10170836)				$ 314.18
20	WPW10119215		Frame, Crisper   (Replaces: W10119215)			Immediately	$ 301.46
21	WP12204827		Glass, Crisper Cover   (Replaces: 12204827)				$ 244.08
22	W10273463		Ladder, Center				$ 29.61
23	WPW10569182		Ladder, Side   (Replaces: W10569182)				$ 27.59
24	W10215666		Screw				$ 9.53
25	67006425		Screw   (Replaces: 12990513)			Immediately	$ 7.30
26	W10120003		Basket, Upper Freezer				$ 247.36
27	W10119217		Slide, Humidity Control		Appelez-nous	-
28	67003794		Bar, Temperature Control   (Replaces: 12655303)				$ 13.82
29	WP12655703		Drawer, Pantry   (Replaces: 12655703)			Immediately	$ 171.70
30	W10182881		Scoop, Ice Pan				$ 22.35
31	W10120005		Pan, Ice				$ 211.62
32	WPW10120008		Carrier, Ice Pan   (Replaces: W10120008)				$ 144.77
33	W10184030		Lever, Ice Pan				$ 109.17
34	W11175810		Magnet, Latch   (Replaces: W10720771)				$ 101.33
35	WPW10174720		Front, Ice Pan   (Replaces: W10174720)				$ 75.11
36	WPW10170835		Glide, Ice Pan   (Replaces: W10170835)			Immediately	$ 293.66
37	WPW10170987		Support, Freezer Door   (Replaces: W10120014)			Immediately	$ 335.92
38	WPW10451455		Mat, Upper Basket   (Replaces: W10451455)			Immediately	$ 117.25
39	W10212414		Front, Crisper			Immediately	$ 99.90
40	WP67002321		Divider, Pantry   (Replaces: 12709301)				$ 33.79
41	W10163084		Adapter (left Hand)				$ 19.53
42	W10121004		Housing, Coupler				$ 78.75
43	W10121002		Latch, Coupler				$ 190.16
44	W11032132		Assembly, Shelf   (Replaces: W10878955)				$ 274.03
45	W11462816		Assembly, Produce Preserver   (Replaces: W10826105)			Immediately	$ 17.15
46	2302952		Slide, Crisper (left Hand)			Immediately	$ 318.09
47	W11210956		Support, Glass   (Replaces: W10528935)				$ 36.20
48	W11214481		Rack, Wine   (Replaces: W10742811)				$ 284.08
49	WPW10170987		Assembly, Center Glide   (Replaces: W10170987)			Immediately	$ 335.92
50	W11094557		Assembly, Shelf   (Replaces: W10878945)			Immediately	$ 249.69
14A	W10132652		Glide, Pantry (right Hand)				$ 256.18
16A	WPW10121977		Track, Pantry (right Hand)   (Replaces: W10121977)			Immediately	$ 49.39
41A	W10163087		Adapter (right Hand)				$ 25.41
46A	2302953		Slide, Crisper (right Hand)			Immediately	$ 318.41
