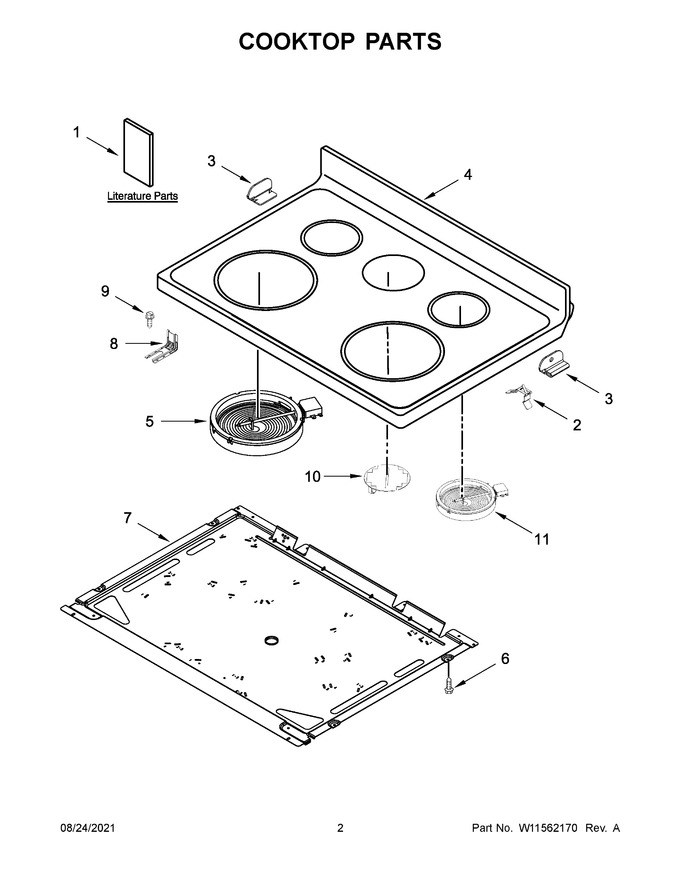

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11443025		Owners Manual		Appelez-nous	-
2	WPW10225448		Spring, Element   (Replaces: W10225448)			Immediately	$ 10.40
3	W10607641		Bracket, Cooktop (left)				$ 33.52
4	W11183708		Cooktop (black)   (Replaces: W11034836)			Immediately	$ 724.77
5	W10823727		Element (3000w) (left Front)   (Replaces: W10711900)			Immediately	$ 342.63
6	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
7	W11728329		Pan, Radiant Element   (Replaces: W10691223)			Immediately	$ 143.49
8	W11839019		Bracket, Anti-tip   (Replaces: W11379945)			Immediately	$ 28.54
9	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
10	W11041453		Element, Warm Zone (center Rear)   (Replaces: W10799048)				$ 132.95
11	W11171119		Element (1200w) (left Rear, Right Rear)   (Replaces: W10248261)			Immediately	$ 182.23
1A	W11524742		Quick Start Guide		Appelez-nous	-
1B	W11523158		Tech Sheet		Appelez-nous	-
3A	W10607642		Bracket, Cooktop (right)		Appelez-nous	-
4A	W11183715		Cooktop (white)   (Replaces: W11034832)			Immediately	$ 675.88
5A	W11517959		Element (3000/1400w) (right Rear)   (Replaces: W10275048)			Immediately	$ 134.44
NI	W11134592		Harness, Warm Zone				$ 117.26
NI	NP		Diverter Valve Motor (not Serviced)		Appelez-nous	-
NI	W11675846		Harness, Cooktop (left)   (Replaces: W11134603)				$ 39.67
NI	W11766513		Harness, Main   (Replaces: W11452629)			Immediately	$ 234.14
NI	W11838447		Harness, Hidden Bake   (Replaces: W11172528)				$ 27.02
NI	3400964		Clip, Wire   (Replaces: 3196520)				$ 89.00
NI	W10183541		Clip, Spring Steel		Appelez-nous	-
NI	W11825100		Harness, Cooktop (right)   (Replaces: W11134845)				$ 86.33
