01 - Cover Sheet
02 - Cooktop Parts
03 - Blower Unit Parts
04 - Burner Box Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:

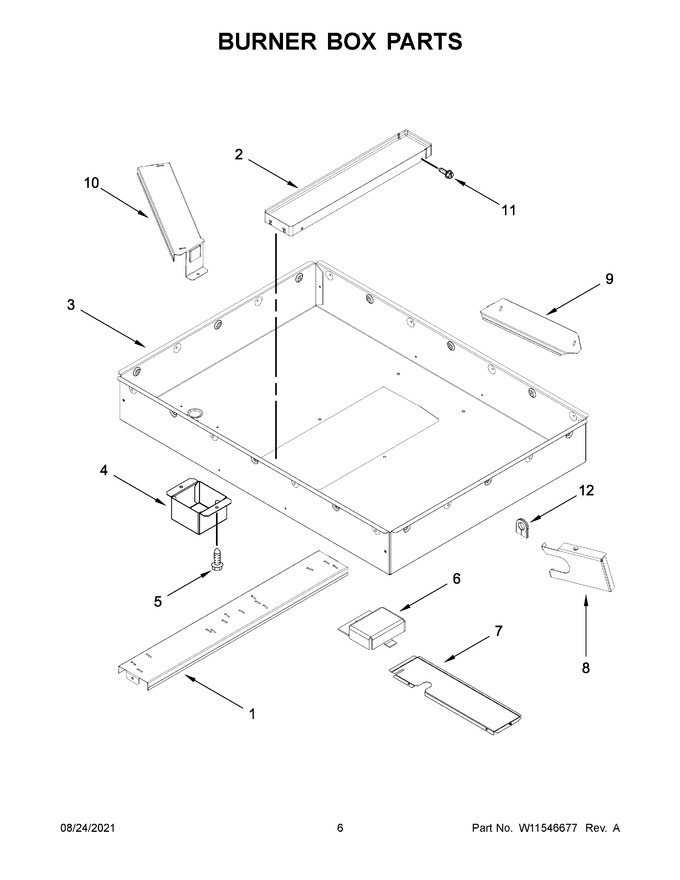

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10815392 | Rail, Straight |
|
- | |||||
| 2 | W10235990 | Tray, Spill |
|
$ 85.76 | |||||
| 3 | NP | Diverter Valve Motor (not Serviced) |
|
- | |||||
| 4 | W10258697 | Cover, Blower Motor Harness |
|
Immediately | $ 94.84 | ||||
| 5 | 7101P42660 | Screw |
|
- | |||||
| 6 | W11819303 | Cover, Connector (Replaces: 8285593) |
|
- | |||||
| 7 | W10842296 | Shield, Heat |
|
- | |||||
| 8 | W10874833 | Shield, Side Heat |
|
- | |||||
| 9 | W10858345 | Rail, Front |
|
- | |||||
| 10 | W10858346 | Rail, Rear |
|
- | |||||
| 11 | WPY706189 | Screw (Replaces: W11249635) |
|
Immediately | $ 7.55 | ||||
| 12 | W10324729 | Grommet, Wire (gray) (large Hole) |
|
$ 9.03 |
