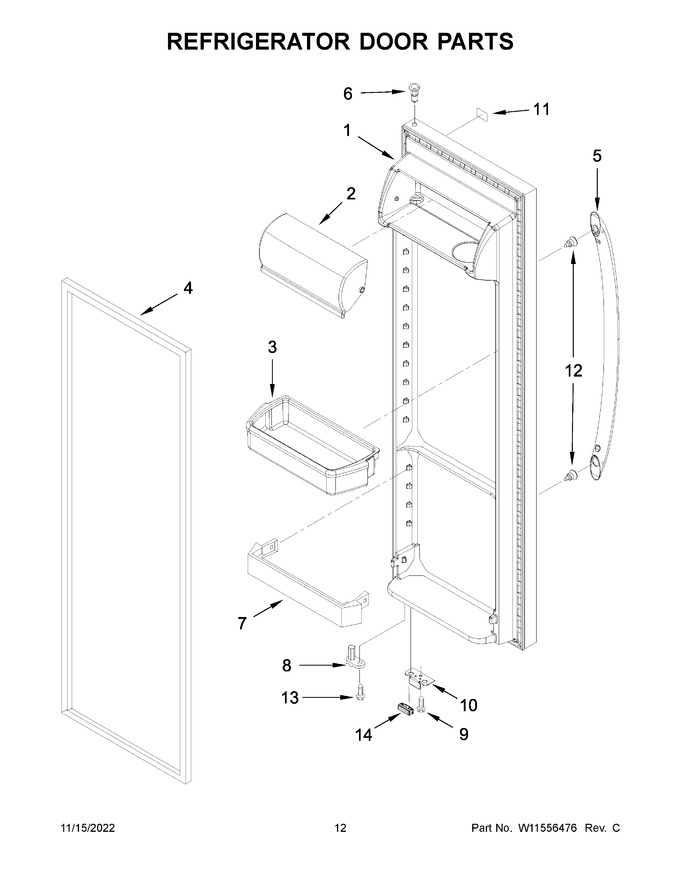

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10912118 | Door, Refrigerator (includes Door Gasket) (white) (Replaces: W10912118) |
|
$ 825.92 | |||||
| 2 | WP2256101 | Door, Compartment (Replaces: 2256101) |
|
Immediately | $ 85.16 | ||||
| 3 | W11239961 | Bin, Door (Replaces: W10900538) |
|
Immediately | $ 153.35 | ||||
| 4 | 2159074 | Gasket, Door (beige) (Replaces: W10912123) |
|
$ 325.70 | |||||
| 5 | W11432251 | Handle (white) (Replaces: W11289637) |
|
$ 180.69 | |||||
| 6 | WP2182181 | Thimble (Replaces: 2200087) |
|
$ 7.76 | |||||
| 7 | WP2309941 | Trivet (Replaces: 2309941) |
|
Immediately | $ 76.32 | ||||
| 8 | W11397972 | Thimble, Cam (Replaces: W10900464) |
|
$ 13.13 | |||||
| 9 | WPW10296816 | Screw (Replaces: W10296816) |
|
$ 7.52 | |||||
| 10 | W11557261 | Bracket, Door Stop (black) (Replaces: W10900463) |
|
Immediately | $ 17.78 | ||||
| 11 | W11223753 | Badge (Replaces: W10884773) |
|
Immediately | $ 83.10 | ||||
| 12 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 11.85 | ||||
| 13 | WPW10296804 | Screw (Replaces: W10296804) |
|
$ 10.85 | |||||
| 14 | W11687672 | Bumper, Door (white) (Replaces: W10407175) |
|
$ 14.22 | |||||
| 14A | W10407187 | Bumper, Door (black) |
|
$ 46.04 | |||||
| 14B | W11573367 | Bumper, Door (grey) (Replaces: W10407188) |
|
Immediately | $ 22.24 | ||||
| 1A | LW10912126 | Door, Refrigerator (includes Door Gasket) (black) (Replaces: W10912126) |
|
$ 806.74 | |||||
| 1B | LW10912075 | Door, Refrigerator (includes Door Gasket) (stainless) (Replaces: W10912075) |
|
$ 782.33 | |||||
| 4A | 2159082 | Gasket, Door (black) (Replaces: W10912133) |
|
$ 332.49 | |||||
| 4B | W10136735 | Gasket, Door (grey) (Replaces: W10912081) |
|
$ 254.84 | |||||
| 5A | W11450221 | Handle (black) (Replaces: W11289638) |
|
$ 180.62 | |||||
| 5B | W11542651 | Handle (stainless) (Replaces: W11289640) |
|
Immediately | $ 140.99 |
