01 - Cover Sheet

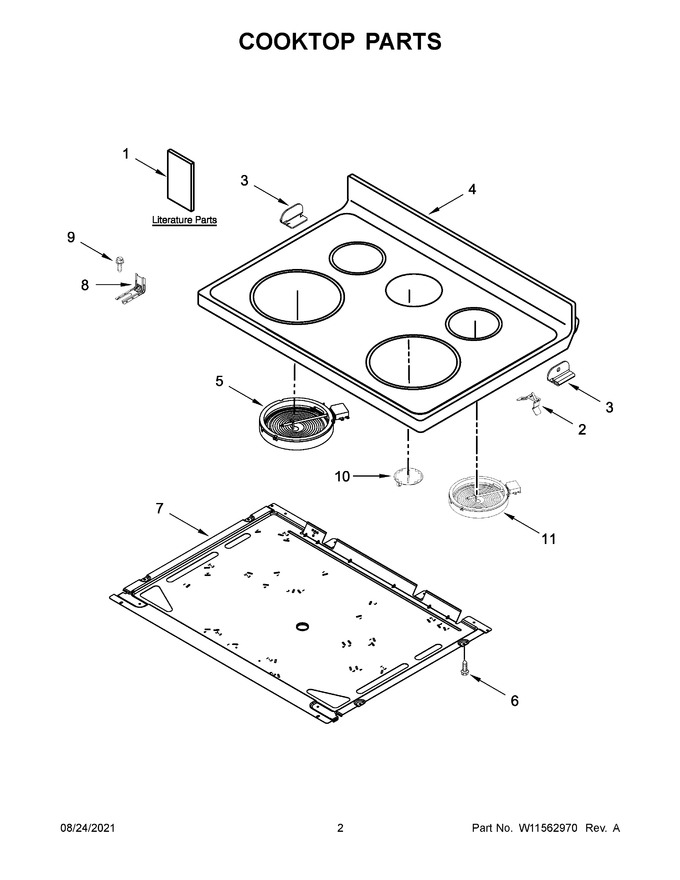

02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11443024 | Owners Manual |
|
- | |||||
| 2 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 10.40 | ||||
| 3 | W10607641 | Bracket, Cooktop (left) |
|
$ 33.52 | |||||
| 4 | W11156895 | Cooktop (black) (Replaces: W11034833) |
|
$ 551.92 | |||||
| 5 | W11517959 | Element (3000/1400w) (right Rear) (Replaces: W10275048) |
|
Immediately | $ 134.44 | ||||
| 6 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 7 | W11728329 | Pan, Radiant Element (Replaces: W10691223) |
|
Immediately | $ 143.49 | ||||
| 8 | W11839019 | Bracket, Anti-tip (Replaces: W11379945) |
|
Immediately | $ 28.54 | ||||
| 9 | 7101P48560 | Screw, Anti-tip Kit |
|
- | |||||
| 10 | W11041453 | Element, Warm Zone (center Rear) (Replaces: W10799048) |
|
$ 132.95 | |||||
| 11 | W11171119 | Element (1200w) (left Rear, Right Rear) (Replaces: W10248261) |
|
Immediately | $ 182.23 | ||||
| 1A | W11530281 | Quick Start Guide |
|
- | |||||
| 1B | W11401734 | Tech Sheet |
|
- | |||||
| 3A | W10607642 | Bracket, Cooktop (right) |
|
- | |||||
| NI | W11675846 | Harness, Cooktop (left) (Replaces: W11134603) |
|
Immediately | $ 39.67 | ||||
| NI | W11134592 | Harness, Warm Zone |
|
$ 117.26 | |||||
| NI | 3400964 | Clip, Wire (Replaces: 3196520) |
|
$ 89.00 | |||||
| NI | W10183541 | Clip, Spring Steel |
|
- | |||||
| NI | W11838447 | Harness, Hidden Bake (Replaces: W11172528) |
|
$ 27.02 | |||||
| NI | W11825100 | Harness, Cooktop (right) (Replaces: W11134845) |
|
$ 86.33 | |||||
| NI | W11750758 | Harness, Main (Replaces: W11452630) |
|
- | |||||
| NI | NP | Diverter Valve Motor (not Serviced) |
|
- |
