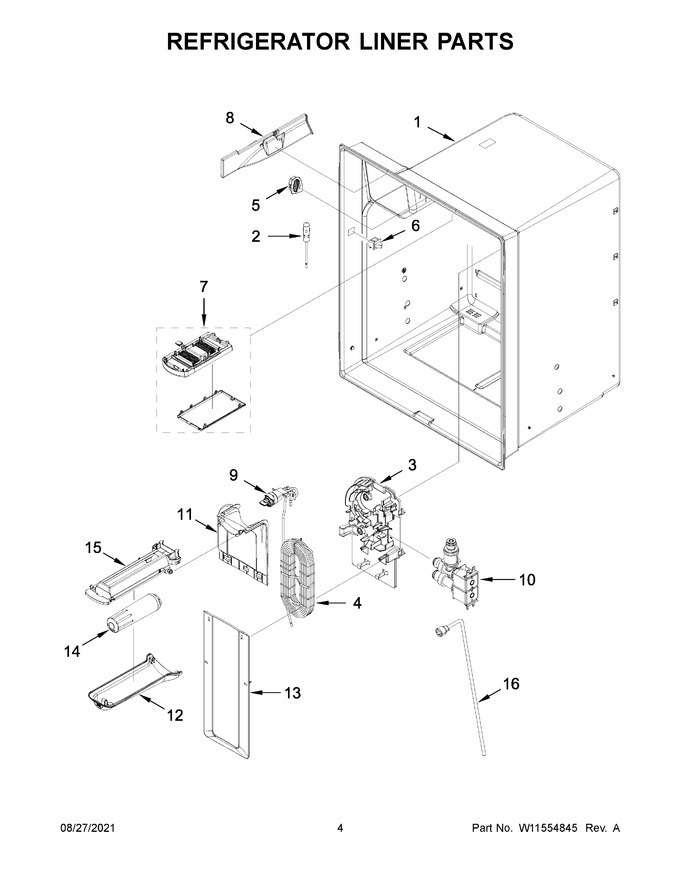

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | NP | Diverter Valve Motor (not Serviced) |
|
- | |||||
| 2 | W10316760 | Thermistor (Replaces: 12791417SP) |
|
Immediately | $ 72.91 | ||||
| 3 | WPW10334463 | Bracket, Water Tank And Valve (Replaces: W10334463) |
|
$ 62.69 | |||||
| 4 | W11346622 | Assembly, Water Tank And Head (includes Bypass Cartridge) (Replaces: W11308017) |
|
Immediately | $ 146.52 | ||||
| 5 | W10555984 | Assembly, Air Grille |
|
Immediately | $ 42.09 | ||||
| 6 | W11396033 | Switch, Rocker (Replaces: W10847848) |
|
Immediately | $ 37.30 | ||||
| 7 | W11527432 | Assembly, Upper Light (includes Led Module And Lens) (Replaces: W11387579) |
|
Immediately | $ 123.37 | ||||
| 8 | WPW10309869 | Cover, Wiring (Replaces: W10309869) |
|
$ 114.65 | |||||
| 9 | W11395888 | Cartridge, Bypass (Replaces: 12664501SP) |
|
Immediately | $ 50.72 | ||||
| 10 | W11548535 | Valve, Water Inlet (Replaces: W11446814) |
|
Immediately | $ 85.52 | ||||
| 11 | 12960101 | Cover, Upper Water Tank |
|
$ 134.01 | |||||
| 12 | WP67006331 | Cover, Filter (Replaces: 12960301) |
|
Immediately | $ 118.37 | ||||
| 13 | 67006329 | Cover, Lower Water Tank (Replaces: 12960001) |
|
$ 198.95 | |||||
| 14 | EDR4RXD1B | Filter, Water (Replaces: W11256384) |
|
Immediately | $ 49.99 | ||||
| 15 | 67006325 | Bracket, Filter Base (Replaces: 12955901) |
|
Immediately | $ 105.39 | ||||
| 16 | W11666461 | Tube, Water (Replaces: W11367364) |
|
$ 88.38 |
