Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 12977864SQ Door, Freezer (stainless)   (Replaces: 12977864S) Special Order $ 1,032.82

2 W10605389 Handle, Door (pro Style) Special Order $ 313.62

3 W10443320 Gasket, Door (grey) In-Stock Immediately $ 125.25

4 W11449276 Screw   (Replaces: W11328753) In-Stock Immediately $ 15.45

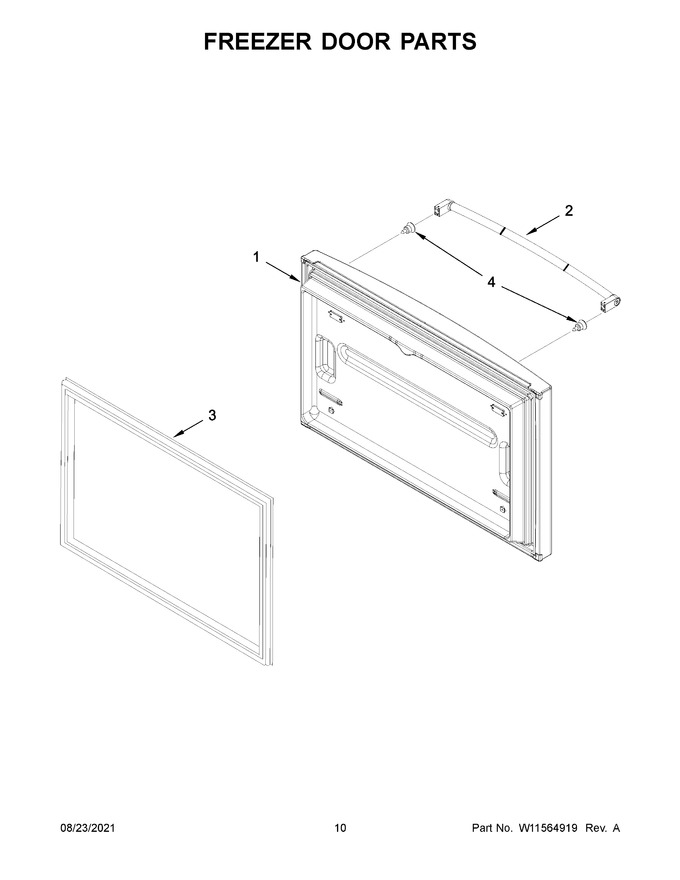

    View Diagram in Separate Window     Print Icon   Print Part List
