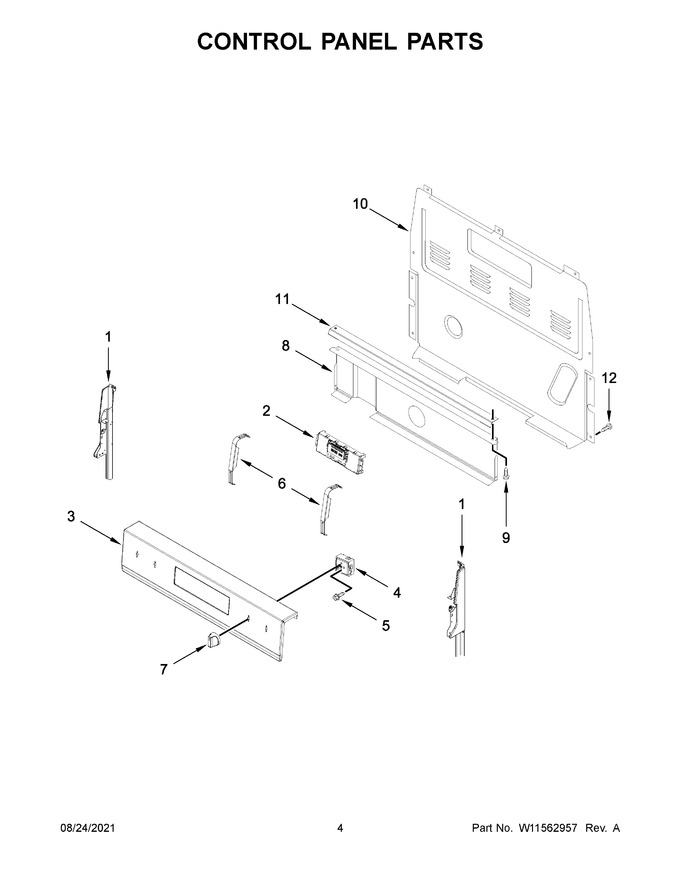

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219664 | Endcap (black (left)) (Replaces: W11130372) |
|
$ 153.83 | |||||
| 2 | W11548749 | Control, Electronic (lcx) (black) (Replaces: W11527158) |
|
Immediately | $ 254.55 | ||||
| 3 | W11158166 | Panel, Console (stainless) (Replaces: W11027376) |
|
$ 481.91 | |||||
| 4 | WPW10434452 | Switch, Infinite (dual) (left Front And Right Front) (Replaces: W10434452) |
|
Immediately | $ 140.84 | ||||
| 5 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 6 | W11230932 | Bracket, Control (Replaces: W10695491) |
|
Immediately | $ 84.81 | ||||
| 7 | W11158168 | Knob (stainless) (Replaces: W11022717) |
|
Immediately | $ 81.39 | ||||
| 8 | W10134247 | Shield, Heat |
|
Immediately | $ 358.82 | ||||
| 9 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 7.55 | ||||
| 10 | WP8272473 | Cover, Upper Rear (Replaces: 8272473) |
|
$ 219.04 | |||||
| 11 | W10525121 | Bracket, Console Mounting |
|
$ 98.85 | |||||
| 12 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 1A | W11219665 | Endcap (black (right)) (Replaces: W11130379) |
|
$ 45.17 | |||||
| 4A | 5500-287 | Switch, Infinite (right Rear And Left Rear) (Replaces: 3148951) |
|
Immediately | $ 52.39 |
