01 - Cover Sheet
02 - Cooktop Parts

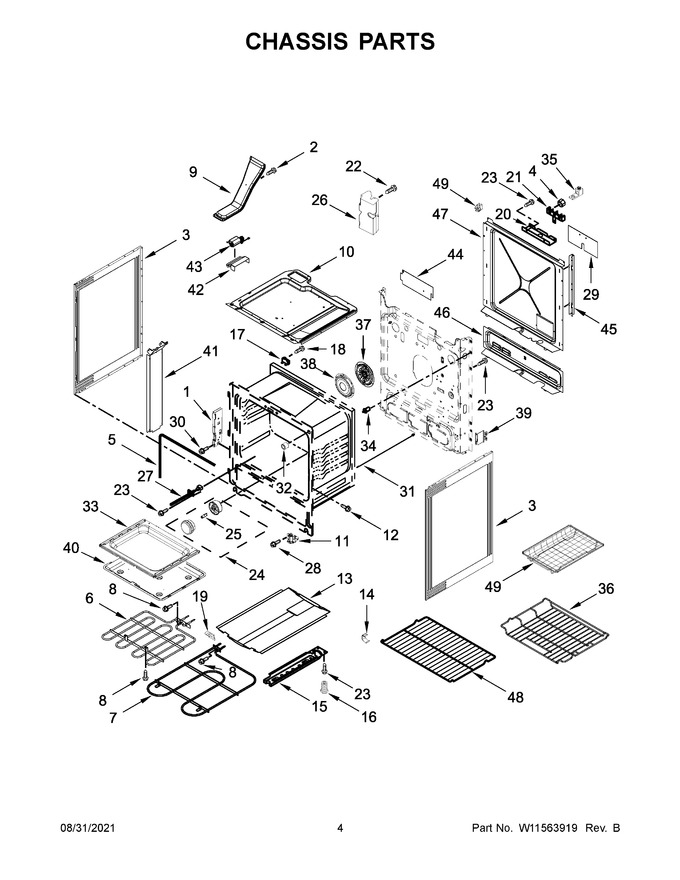

03 - Chassis Parts
04 - Door Parts
05 - Drawer Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10647259 | Receiver, Hinge (Replaces: W10289077) |
|
Immediately | $ 9.32 | ||||
| 2 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 14.72 | ||||
| 3 | W11730303 | Panel, Side (black) (Replaces: W10162245) |
|
Immediately | $ 178.50 | ||||
| 4 | WP3400029 | Nut (Replaces: 3400029) |
|
Immediately | $ 8.19 | ||||
| 5 | W11562931 | Gasket, Door (Replaces: W11491752) |
|
Immediately | $ 87.76 | ||||
| 6 | W11238400 | Element, Broil (Replaces: W10544952) |
|
Immediately | $ 118.18 | ||||
| 7 | W10779716 | Element, Bake (Replaces: W10774342) |
|
Immediately | $ 61.45 | ||||
| 8 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 14.72 | ||||
| 9 | W11122085 | Assembly, Flue |
|
$ 118.38 | |||||
| 10 | W10289168 | Box, Burner Si |
|
$ 204.90 | |||||
| 11 | WPW10341186 | Front Foot Assembly (Replaces: W10341186) |
|
Immediately | $ 32.59 | ||||
| 12 | WPW10067840 | Screw (Replaces: W10067840) |
|
$ 8.30 | |||||
| 13 | W10541959 | Shield, Bake |
|
Immediately | $ 168.98 | ||||
| 14 | W10137382 | Clip, Panel |
|
Immediately | $ 48.42 | ||||
| 15 | W11818353 | Base Rail Assembly (left) (Replaces: W10390008) |
|
$ 62.66 | |||||
| 16 | WPW10058460 | Foot, Leveling (Replaces: W10058460) |
|
Immediately | $ 8.24 | ||||
| 17 | WP3196548 | Fuse, Thermal (Replaces: 3196548) |
|
Immediately | $ 50.10 | ||||
| 18 | 3196172 | Screw |
|
Immediately | $ 13.47 | ||||
| 19 | W10035900 | Support, Oven Bottom |
|
$ 14.36 | |||||
| 20 | W11763591 | Bracket, Service (Replaces: 3186034) |
|
- | |||||
| 21 | WPW10245259 | Block, Terminal (Replaces: W10245259) |
|
Immediately | $ 35.17 | ||||
| 22 | W11135756 | Screw (Replaces: W11034869) |
|
$ 14.73 | |||||
| 23 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 24 | W11594027 | Light Assembly (Replaces: W11175594) |
|
Immediately | $ 87.01 | ||||
| 25 | WPW10571723 | Bulb, Halogen 40 Watts (Replaces: W10571723) |
|
Immediately | $ 27.71 | ||||
| 26 | W11217187 | Counterweight (Replaces: W10914589) |
|
$ 33.95 | |||||
| 27 | W10833885 | Sensor (Replaces: W10586204) |
|
Immediately | $ 140.71 | ||||
| 28 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 29 | W10655441 | Shield, Power Cord |
|
$ 144.36 | |||||
| 30 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 8.26 | ||||
| 31 | W11370463 | Rod, Door Switch |
|
Immediately | $ 66.87 | ||||
| 32 | W10877054 | Spacer, Door (Replaces: 9758701) |
|
Immediately | $ 56.06 | ||||
| 33 | W10777210 | Bottom, Oven (Replaces: W10774446) |
|
Immediately | $ 164.22 | ||||
| 34 | WP9757262 | Switch, Door (Replaces: W10627802) |
|
Immediately | $ 144.44 | ||||
| 35 | WPW10281322 | Kit, Bare Wire Adapter Block (Replaces: W10281322) |
|
$ 8.87 | |||||
| 36 | W11256463 | Rack, Oven (gull-wing) (Replaces: W10289145) |
|
Immediately | $ 132.50 | ||||
| 37 | W11441001 | Convection Assembly (Replaces: W11353926) |
|
Immediately | $ 136.09 | ||||
| 38 | WPW10346154 | Cover, Convection (Replaces: W10346154) |
|
Immediately | $ 77.67 | ||||
| 39 | W10273002 | Bracket, Oven Support |
|
$ 76.34 | |||||
| 40 | W11379357 | Bake Pan |
|
Immediately | $ 82.86 | ||||
| 41 | W10162255 | Duct, Cover |
|
$ 29.17 | |||||
| 42 | W10162254 | Duct, Cooling |
|
$ 134.45 | |||||
| 43 | W11107275 | Assembly, Cooling Fan (Replaces: W11190724) |
|
Immediately | $ 162.31 | ||||
| 44 | W11117035 | Shield, Wire |
|
$ 88.15 | |||||
| 45 | W10162241 | Channel, Rear |
|
$ 37.56 | |||||
| 46 | W10162248 | Cover, Wire |
|
$ 148.19 | |||||
| 47 | W11379354 | Cover, Back |
|
Immediately | $ 77.79 | ||||
| 48 | WPW10531060 | Rack, Oven (Replaces: W10531060) |
|
Immediately | $ 122.16 | ||||
| 49 | W11692811 | Basket, Air Fry (Replaces: W11526015) |
|
Immediately | $ 117.69 | ||||
| 15A | W11818353 | Base Rail Assembly (right) (Replaces: W10390007) |
|
$ 62.66 | |||||
| NI | W11688363 | Insulation, Back (Replaces: W10162240) |
|
$ 122.19 | |||||
| NI | 4820F01559 | Insulation, Strap |
|
- | |||||
| NI | NP | Cabinet (not Serviced) |
|
- | |||||
| NI | 7111P01760 | Clamp, Wire |
|
- | |||||
| NI | W11688730 | Insulation, Bottom (Replaces: W10575374) |
|
Immediately | $ 79.98 | ||||
| NI | W11688567 | Insulation, Wrap (Replaces: W10289173) |
|
$ 128.01 |
