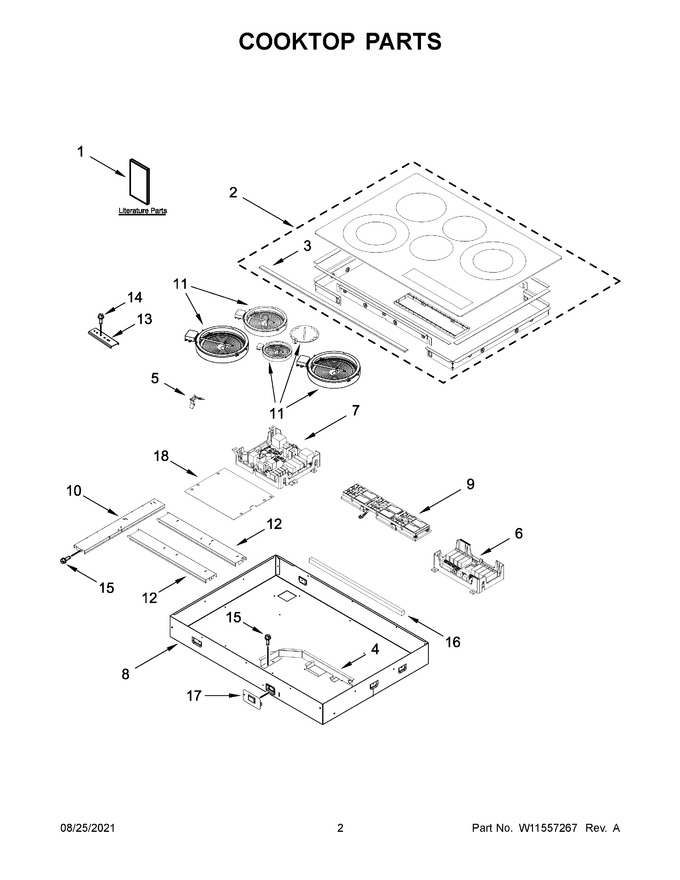

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11439185		Installation Instructions		Appelez-nous	-
2	W11560572		Cooktop (black)   (Replaces: W11406999)				$ 1,089.32
3	NP		Diverter Valve Motor (not Serviced)		Appelez-nous	-
4	W11102056		Shield, Heat		Appelez-nous	-
5	WPW10225448		Spring, Element   (Replaces: W10225448)			Immediately	$ 10.40
6	W11259509		Appliance Manager, Expansion   (Replaces: W11115981)			Immediately	$ 501.39
7	W11349398		Manager, Copernicus Appliance   (Replaces: W11296737)				$ 505.74
8	NP		Diverter Valve Motor (not Serviced)		Appelez-nous	-
9	W11558671		Ui Assembly   (Replaces: W11420430)			Immediately	$ 609.62
10	W11110713		Rail, Vertical		Appelez-nous	-
11	W11517959		Element (3000/1400w) (right Rear)   (Replaces: W10275048)			Immediately	$ 146.68
12	W11110715		Rail, Horizontal		Appelez-nous	-
13	8186533		Bracket, Cooktop Mounting   (Replaces: 4455917)				$ 92.86
14	WP3400093		Screw   (Replaces: 3400093)				$ 7.55
15	7101P42660		Screw		Appelez-nous	-
16	W11260678		Top, Foam (heat Shield)   (Replaces: W11177346)				$ 24.71
17	NP		Diverter Valve Motor (not Serviced)		Appelez-nous	-
18	W11242976		Pad, Insulation		Appelez-nous	-
11A	WP8273993		Element (1800w) (left Rear)   (Replaces: 8273993)			Immediately	$ 287.73
11B	W11171119		Element (1200w) (center)   (Replaces: 8273994)			Immediately	$ 225.62
11C	W11041453		Element, Warm Zone (center Rear)   (Replaces: W10799048)				$ 132.95
1A	W11245478		Instructions, Undercounter Installation		Appelez-nous	-
1B	W11439187		Owners Manual		Appelez-nous	-
1C	W11227340		Diagram, Wiring		Appelez-nous	-
2A	W11560577		Cooktop (stainless)   (Replaces: W11407000)				$ 1,123.73
NI	7103P02760		Nut		Appelez-nous	-
NI	W11260679		Insulation, Cooktop   (Replaces: W11160362)		Appelez-nous	-
NI	WP3400015		Screw, Grounding   (Replaces: 3400015)				$ 7.55
NI	WP8286642		Tape, Foam   (Replaces: 8286642)			Immediately	$ 156.46
NI	W10491984		Seal, Limiter   (Replaces: 3192439)				$ 12.05
NI	W11111811		Harness, Main				$ 286.34
NI	7101P52060		Screw		Appelez-nous	-
NI	NP		Diverter Valve Motor (not Serviced)		Appelez-nous	-
