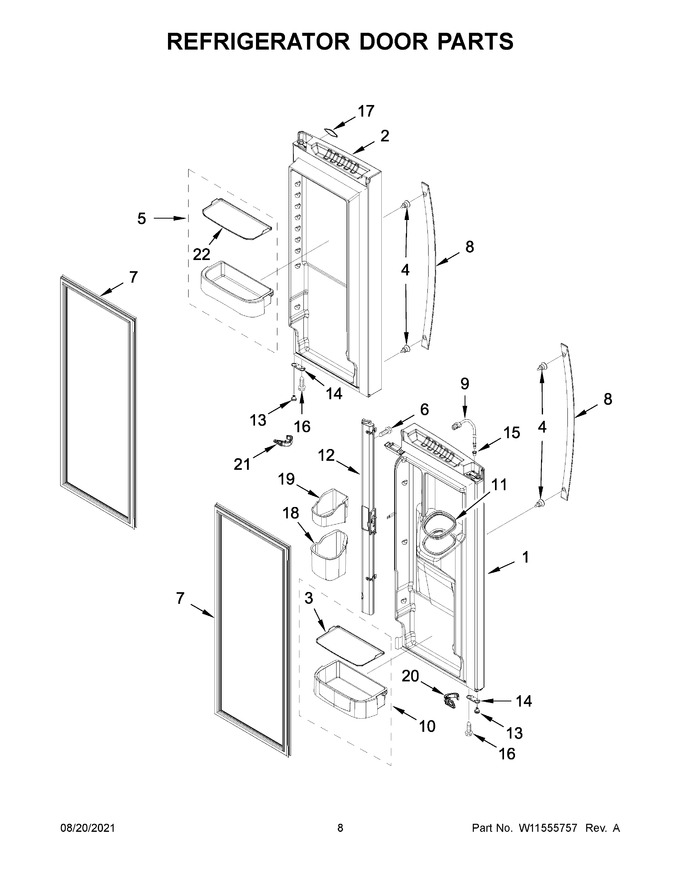

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11436982 | Door, Refrigerator Left Hand (stainless) (Replaces: W11377233) |
|
$ 865.37 | |||||
| 2 | W11435348 | Door, Refrigerator Right Hand (stainless Steel) (Replaces: W11377237) |
|
$ 1,070.51 | |||||
| 3 | W10450033 | Gripper, Gallon |
|
$ 87.28 | |||||
| 4 | W11449276 | Screw (Replaces: W11328753) |
|
Immediately | $ 15.45 | ||||
| 5 | WPW10451500 | Bucket, Medium (Replaces: W10451500) |
|
$ 107.67 | |||||
| 6 | W11311945 | Screw (Replaces: 12990204) |
|
$ 14.72 | |||||
| 7 | W10830055 | Gasket, Door (grey) |
|
Immediately | $ 229.10 | ||||
| 8 | W11163764 | Handle, Door (stainless) (Replaces: W11045530) |
|
Immediately | $ 151.77 | ||||
| 9 | W11082078 | Tube, Water |
|
$ 66.27 | |||||
| 10 | WPW10451501 | Bucket, Gallon (Replaces: W10451501) |
|
Immediately | $ 109.44 | ||||
| 11 | WPW10287601 | Seal, Ice Chute (Replaces: W10287601) |
|
Immediately | $ 32.76 | ||||
| 12 | WP12722813AP | Mullion, Door (grey) (Replaces: 12722813AP) |
|
$ 340.89 | |||||
| 13 | WP12028505AP | Closure, Door (grey) (Replaces: 12028505AP) |
|
Immediately | $ 61.46 | ||||
| 14 | W11703060 | Stop, Door (grey) (Replaces: 12968202AP) |
|
$ 15.46 | |||||
| 15 | 12996601 | Clip, Bushing |
|
$ 10.05 | |||||
| 16 | WP98165 | Screw (Replaces: 12990521) |
|
$ 8.57 | |||||
| 17 | W11223753 | Badge (Replaces: W10884773) |
|
Immediately | $ 87.26 | ||||
| 18 | WP12977502 | Bucket, Lower (Replaces: 12977502) |
|
$ 84.55 | |||||
| 19 | WP12977402 | Bucket, Upper (Replaces: 12977402) |
|
$ 79.60 | |||||
| 20 | W10918008 | Latch, Door Closer Left Hand (grey) (Replaces: W10833741) |
|
$ 17.64 | |||||
| 21 | W10918010 | Latch, Door Closer Right Hand (grey) (Replaces: W10833739) |
|
Immediately | $ 17.64 | ||||
| 22 | W10450032 | Gripper, Medium |
|
$ 105.91 |
