01 - Cover Sheet

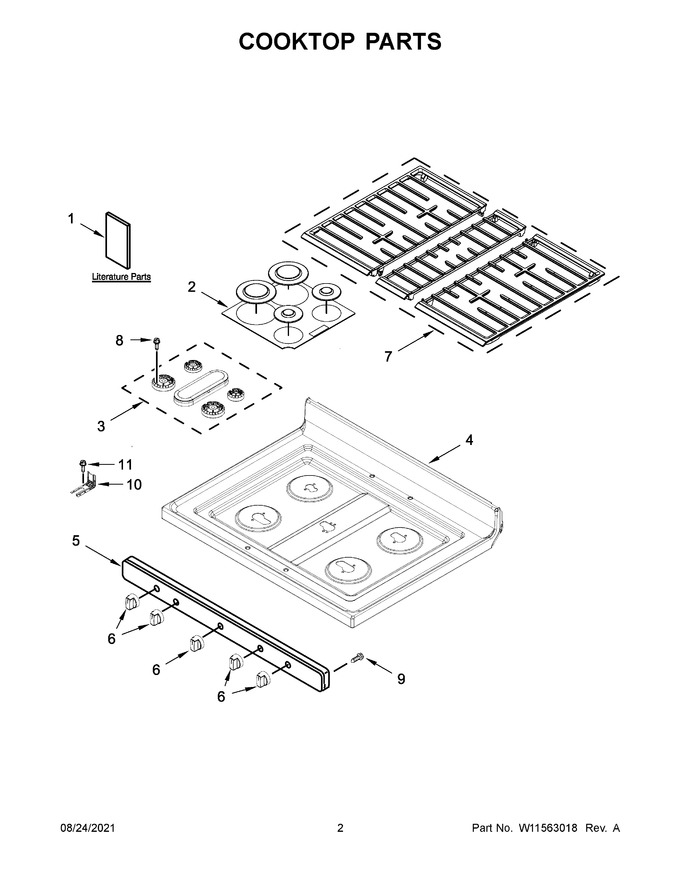

02 - Cooktop Parts
03 - Control Panel Parts
04 - Manifold Parts
05 - Chassis Parts
06 - Door Parts
07 - Drawer Parts
08 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11426600 | Owner's Manual |
|
- | |||||
| 2 | W11455147 | Burner Cap Kit (black (set Of 4)) (Replaces: W11395131) |
|
Immediately | $ 99.73 | ||||
| 3 | W11662402 | Burner Kit (Replaces: W11367107) |
|
Immediately | $ 130.11 | ||||
| 4 | W11454367 | Cooktop (black) (Replaces: W11418086) |
|
Immediately | $ 435.20 | ||||
| 5 | W11165140 | Panel, Manifold (stainless) (Replaces: W11044911) |
|
$ 361.75 | |||||
| 6 | W11159630 | Knob, Control (stainless) (Replaces: W11023139) |
|
Immediately | $ 67.06 | ||||
| 7 | W11252165 | Grate Kit (black (set Of 3)) (Replaces: W11090908) |
|
$ 427.67 | |||||
| 8 | W11241230 | Screw (Replaces: W10673618) |
|
Immediately | $ 14.73 | ||||
| 9 | WP3196557 | Screw (Replaces: 3196557) |
|
Immediately | $ 7.95 | ||||
| 10 | W11839019 | Bracket, Anti-tip (Replaces: W11379945) |
|
Immediately | $ 28.54 | ||||
| 11 | 7101P48560 | Screw, Anti-tip Kit |
|
- | |||||
| 1A | W11530282 | Quick Start Guide |
|
- | |||||
| 1B | W11401740 | Tech Sheet |
|
- | |||||
| NI | W10334923 | Clip, Gas Wiring |
|
- | |||||
| NI | 3400964 | Clip, Wire (Replaces: 3196520) |
|
$ 89.00 | |||||
| NI | 3196896 | Clip, Wire |
|
- | |||||
| NI | NP | Diverter Valve Motor (not Serviced) |
|
- | |||||
| NI | W10849001 | Harness, Main |
|
$ 188.74 | |||||
| NI | W11161843 | Harness, Bake/broil (Replaces: W10753750) |
|
$ 216.55 | |||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 20.53 |
