SELECT A DIAGRAM

01 - Cover Sheet


02 - Cooktop Parts


03 - Control Panel Parts


04 - Chassis Parts


05 - Door Parts


06 - Drawer Parts


07 - Optional Parts (not Included)

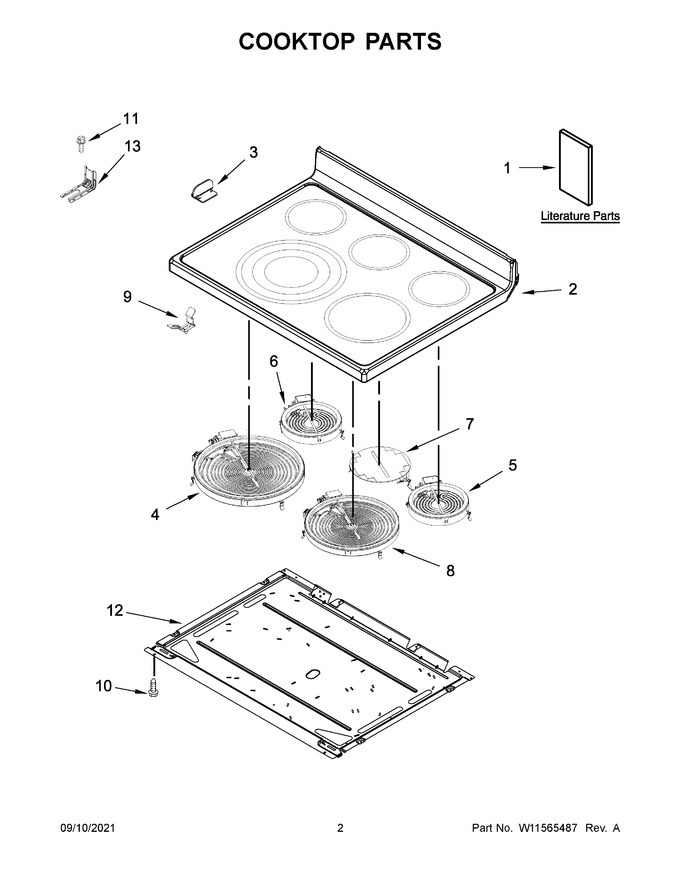

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11432242		Owners Manual		Appelez-nous	-
2	W10872564		Cooktop (white)   (Replaces: W10828425)			Immediately	$ 692.87
3	W10607641		Bracket, Cooktop (left)				$ 33.52
4	W11563195		Element (3000w) (left Front)   (Replaces: W11318371)			Immediately	$ 222.58
5	W11171119		Element (1200w) (right Rear)   (Replaces: W10248261)			Immediately	$ 182.23
6	WPW10342780		Element (1300w) (left Rear & Right Rear)   (Replaces: W10342780)			Immediately	$ 145.32
7	W11041453		Element, Warm Zone (center Rear)   (Replaces: W10799048)				$ 132.95
8	W11517959		Element (3000/1400w) (left Front & Right Front)   (Replaces: W10275048)			Immediately	$ 134.44
9	WPW10225448		Spring, Element   (Replaces: W10225448)			Immediately	$ 10.40
10	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 7.55
11	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
12	W11728329		Pan, Radiant Element   (Replaces: W10691223)			Immediately	$ 143.49
13	W11839019		Bracket, Anti-tip   (Replaces: W11379945)			Immediately	$ 28.54
1A	W11435579		Quick Start Guide		Appelez-nous	-
1B	W11336171		Tech Sheet		Appelez-nous	-
3A	W10607642		Bracket, Cooktop (right)		Appelez-nous	-
NI	W11212183		Harness, Sensor				$ 235.64
NI	W11134592		Harness, Warm Zone				$ 117.26
NI	W11190447		Harness, Cooktop (left)			Immediately	$ 199.79
NI	W11188421		Harness, Cooktop (right)			Immediately	$ 214.26
NI	W11454304		Harness, Main				$ 218.38
NI	NP		Cabinet (not Serviced)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
